Key Features
- Traveling Sheave zero-fleet winch for compact design
- Heavy lifting winch with 907.18 kg (2000 lb) capacity in dual line configuration
- 0.61 m/s (2.0 ft/s) max speed
- Integrated rigging connections for individual suspension
- Optional custom truss frame houses winch and diverter sheaves
|
 |
Description

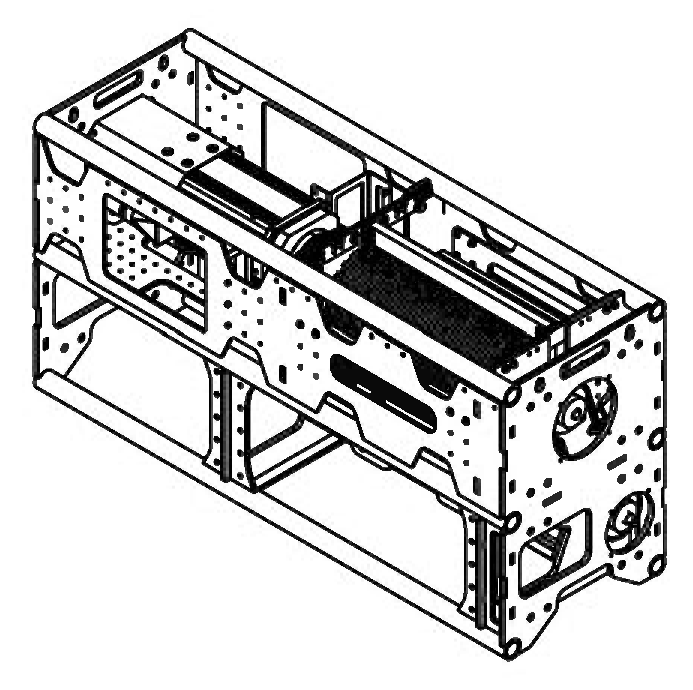

The Z Winch offers a compact solution for lifting heavy loads. The winch offers dual outputs of 8 mm (5/16 in or .3125 in) rope with a tracking sheave design to accommodate zero-fleet coming out of the winch. The winch has rigging connection points to attach to conventional rigging or custom winch mounts. The optional custom frame is also sized to integrate seamlessly with 36 in x 24 in spigoted truss.
Specifications
| Electrical |
| Rated Voltage |
200-230 VAC |
| Frequency |
50-60 Hz |
| Connections |
| Power |
Ceeform 60A |
| Control |
TAIT Navigator |
| Feedback/Encoder |
EtherCON, XLR 8+2 |
| Motor Brake |
LKH (6AWG) |
| Mechanical |
| Maximum Line Load |
907.18 kg (2000 lbs) |
| Maximum Speed |
0.61 m/s (2.0 ft/s) |
| Travel |
30.48 m (100 ft) |
| Environmental |
| Operating Temp |
10° C to 35° C (50° F to 95° F), 50% RH |
| Construction |
| Dimensions (L x W x H) |
2489.2 mm x 708.66 mm x917.57 mm (98 in x 27.9 in x 36.1 in) |
| Weight (winch only) |
390.09 kg (860 lbs) |
| Wire Rope |
8 mm (5/16 in or 0.3125 in) |
| |
|
Dimensions

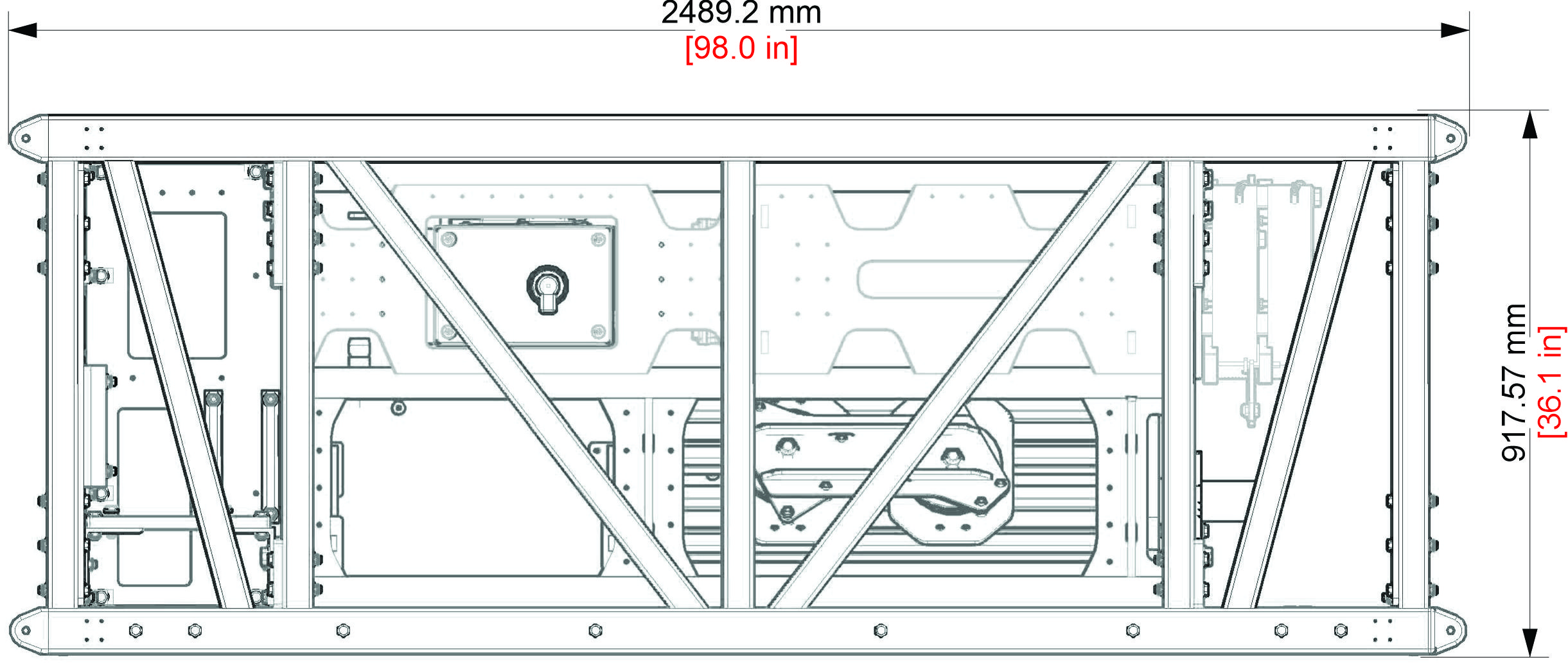

| Top View with custom truss |
 |

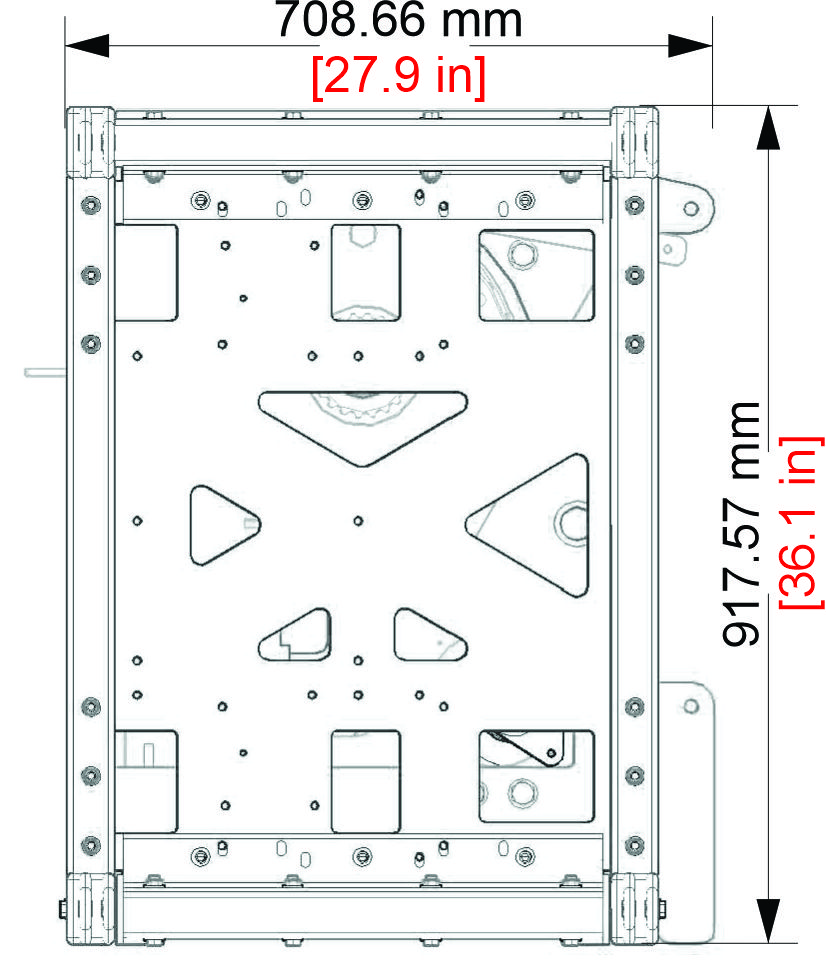

| Front View with custom truss |

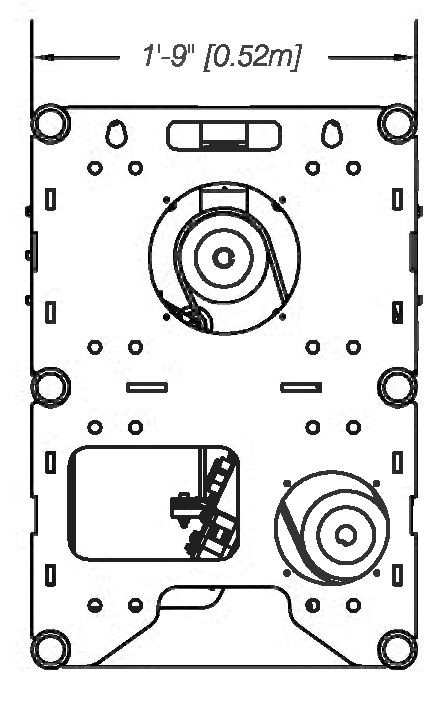

End View |
 |
 |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2022.04.05. Copyright 2022 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 26700076
