Key Features

Modular design for easy customization and staging flexibility
Multiple motor and drum combinations
Drum module can be fitted with Poly Drum for quiet operation or Aluminum Drum to support heavy loads
Redundant braking, self-mating couplings, and integrated safety system
Clip-on caster assemblies for easy transport and efficient setup
Integrates with TAIT Navigator and iQ systems

Description

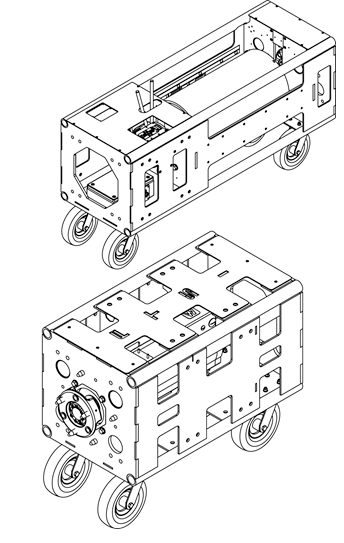

The Modular Winch is a completely modular servo winch system featuring motor and drum units capable of lifting loads at an extremely high sustained speed. Each drum module can be fitted with either a Poly drum for quiet or outdoor operation or an Aluminum drum for support of heavy loads. A unique self-mating coupling system ensures a secure drive connection between the motor and drum. The motor and the drum modules have removable casters and feature framing that is compatible with standard 520.7 mm (20.5 in) trussing for quick and easy installation.

Specifications

Electrical
Rated Voltage		208VAC or 400 VAC, 3 Phase
Max Current		100A
Motor Torque (all models)		68 Nm (602 lb-in)
Motor Speed		208VAC: 3000 RPM, 400VAC: 4500 RPM
Power		30 HP or 50 HP
Connections
Power		Incoming: 5-wire power connection Ongoing: Two (2) 120V Utility Options
Control		Four (4) RJ45 Ethernet TAIT Navigator Ports
Network		RJ45 EtherCat RJ45 EtherCat, Drive Programming Port
Mechanical
Length of Safe Travel	Short Drum Long Drum Long Drum	6.35 mm (0.25 in) rope, 80.16 m (263 ft) 6.35 mm (0.25 in) rope, 243.84 m (800 ft) 8 mm (0.3125 in) rope, 196.90 m (646 ft)
Acceleration		0.491 m/s² (1.61 ft/s²)
Brake Torque		5:1 Ratio: 540 Nm (4779 lb-in) 7:1 Ratio: 540 Nm (4779 lb-in) 13.3:1 Ratio: 1000 Nm (8851 lb-in)

Construction
Motor Module Dimensions (L x W x H)	with casters	929.6 mm x 518.2 mm x 518.2 mm (36.6 in x 20.4 in x 20.4 in) 929.6 mm x 518.2 mm x 771.1 mm (36.6 in x 20.4 in x 30.36 in)
Long Drum Module Dimensions (L x W x H)	with casters	2490.2 mm x 518.2 mm x 518.2 mm (98 in x 20.4 in x 20.4 in) 2490.2 mm x 518.2 mm x 771.1 mm (98 in x 20.4 in x 30.36 in)
Short Drum Module Dimensions (L x W x H)	with casters	1524 mm x 518.2 mm x 518.2 mm (60 in x 20.4 in x 20.4 in) 1524 mm x 518.2 mm x 771.1 mm (60 in x 20.4 in x 30.36 in)
Motor Module Weight Long Drum Module Weight Short Drum Module Wight		185.97 kg (410 lbs) 235.86 kg (520 lbs) 176.90 kg (390 lbs)

Accessories
Poly Drum	6.35 mm (0.25 in) or 7.94 mm (0.3125 in) steel or synthetic rope
Aluminum Drum	6.35 mm (0.25 in) steel or synthetic rope

Dimensions

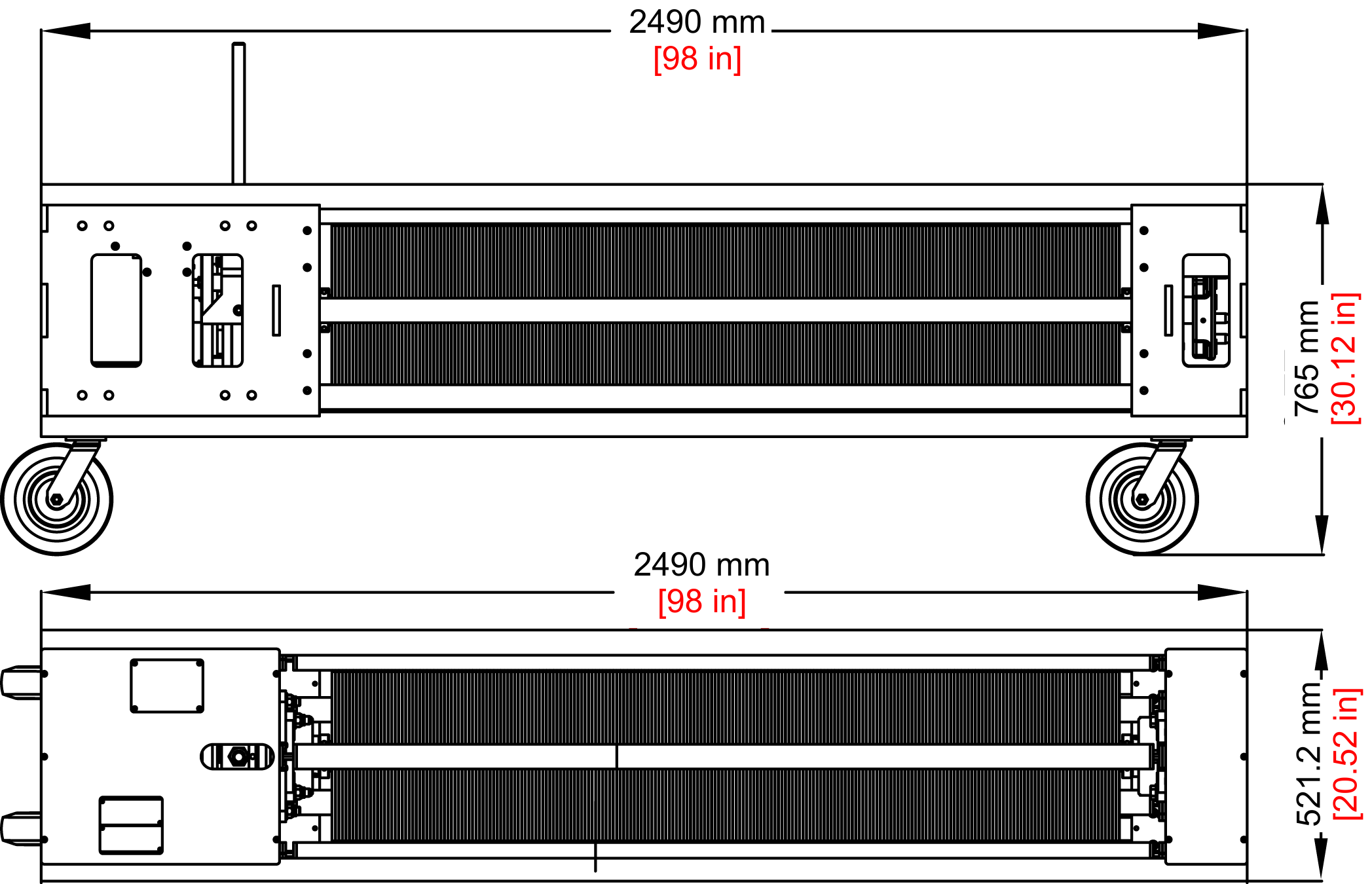

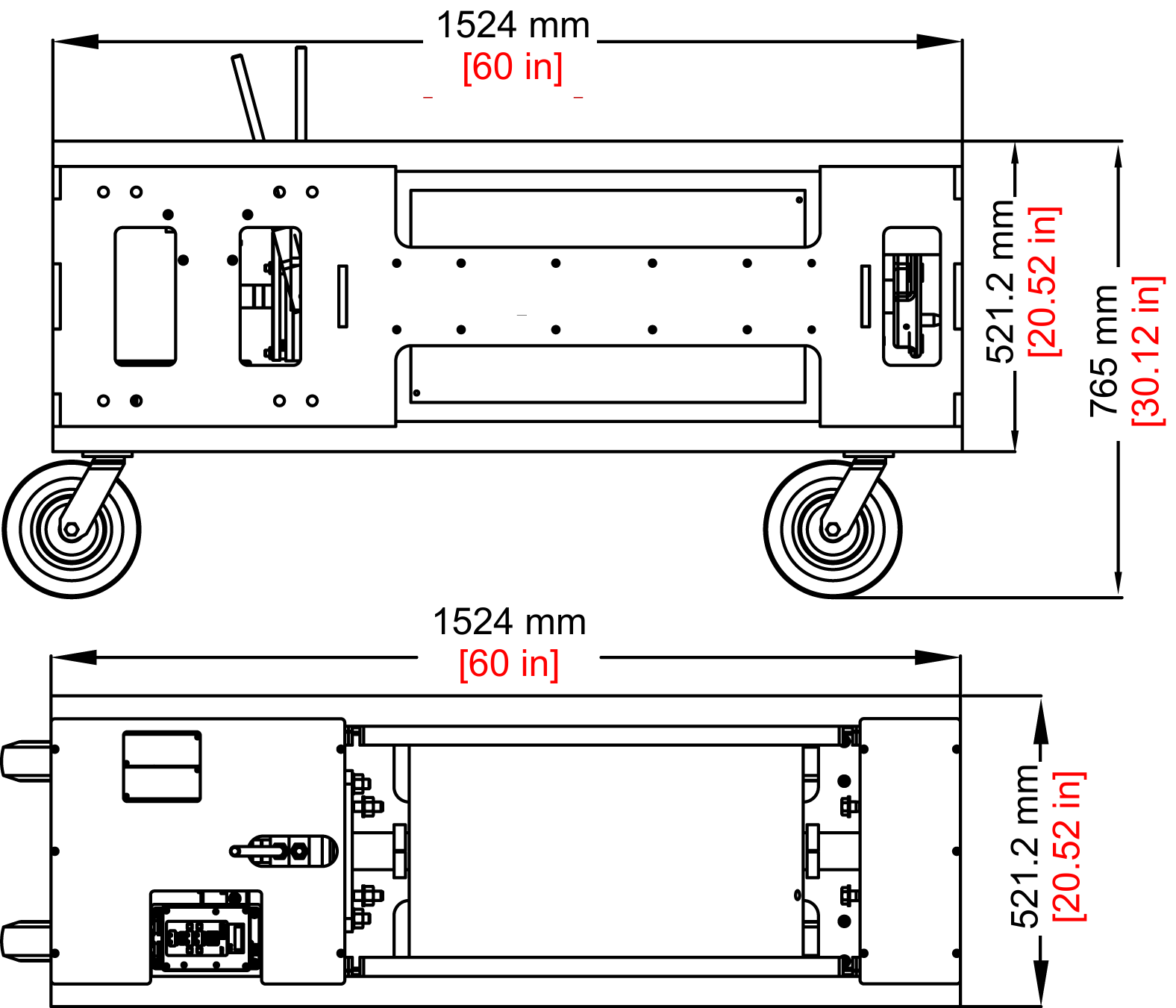

Short Drum Front/Top View	Long Drum Front/Top View

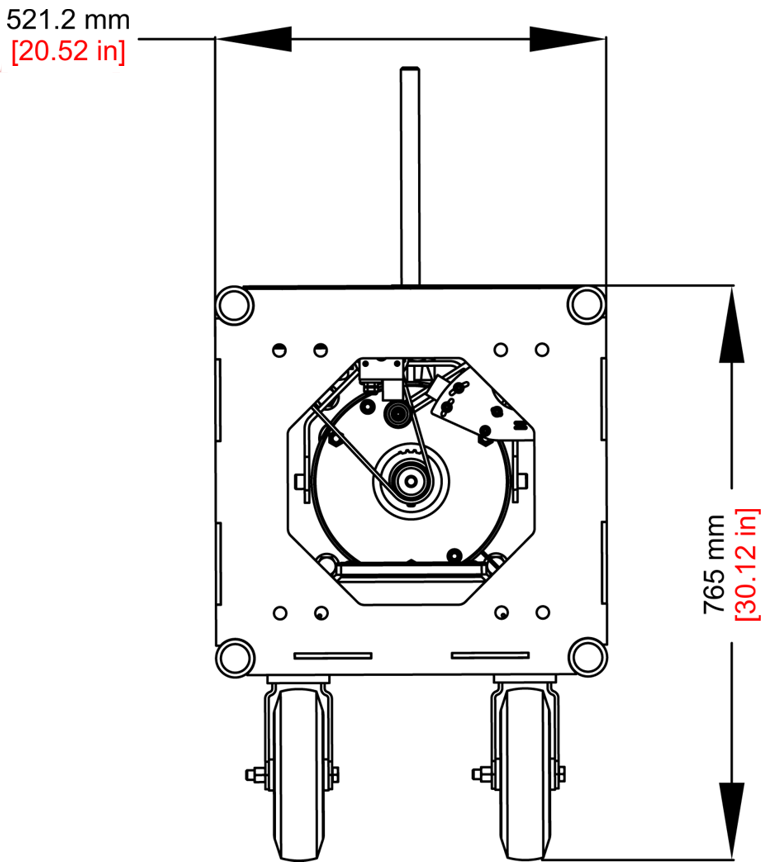

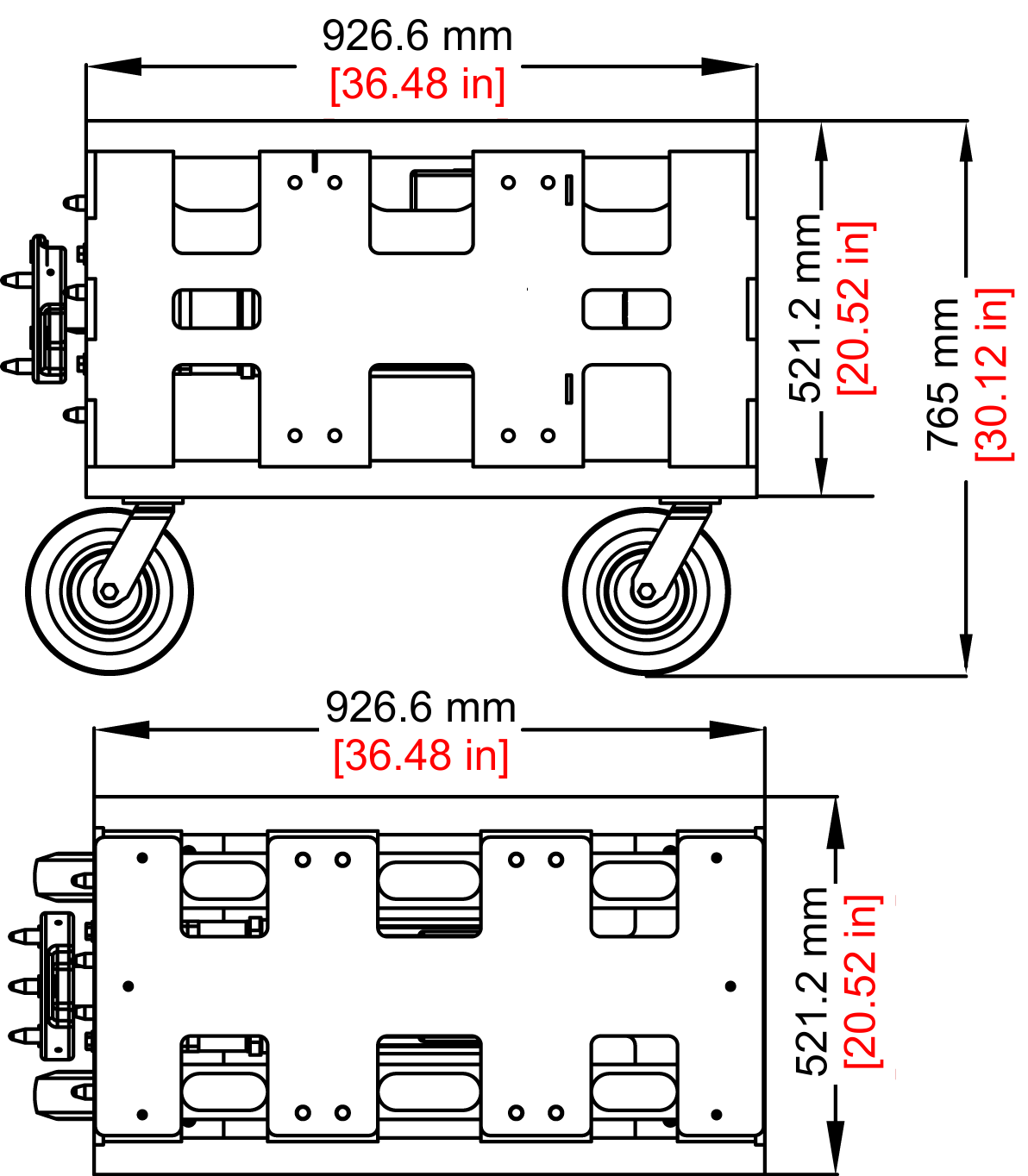

Typical Side View	Motor Front/Top View

Packaging and Shipping

Dimensions (L x W x H)
Motor	930 mm x 520 mm x 770 mm (36.61 in x 20.47 in x 30.31 in)
Long Drum	2490 mm x 5520 mm x 770 mm (98.03 in x 20.47 in x 30.31 in)
Short Drum	1520 mm x 520 mm x 770 mm (59.84 in x 20.47 in x 30.31 in)
