Roll Drop 20 Ft Spec Sheet

Key Features

For a variety of retractable soft goods to be used as projection screens, scenic items, or other elements Accepts goods up to 6.1 m (20 ft) long Housed in a 520 mm (20.5 in) truss for low profile; simple integration into standard truss systems Recommended speed of 0.91 m/s (3 ft/s) Maximum travel depends on thickness of soft good

Description

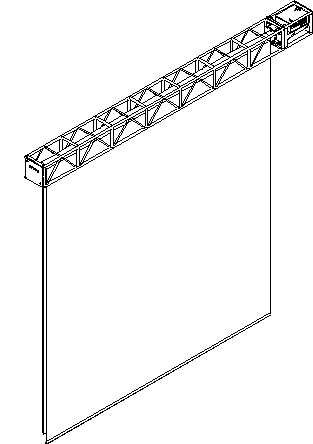

The TAIT 20 ft Roll Drop can be used in a variety of ways, including as a projection screen or for scenic soft goods. It has a retractable screen and maximum travel is dependent upon the thickness of the soft good. It has a maximum speed of 1.52 m/s (5 ft/s) but is recommended to be used at a speed of 0.91 m/s (3 ft/s). It measures 7315 mm x 520.7 m x 520.7 mm (288 in x 20.5 in x 20.5 in) and can accept soft goods up to 6.1 m (20 ft) in width. The roll drops can be linked together end-to-end or motor-to-motor.

Specifications

Dimensions

Top View

Front View

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.03.01. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 26010500-K
