Key Features

Custom-built set piece that suspends a lighting assembly or scenic element above the stage.
Unique scissor configuration with integrated cable management system provides ascetic appeal while obscuring cables and mechanics.
Actuated using our 500 kg Nav Hoist for smooth, precise moves; fully compatible with the Navigator Automation Platform.
Secures to a 12 in to 24 in wide truss using adjustable cheeseborough clamps for quick and secure integration.

Description

The TAIT Pantograph is a unique and versatile scissor motion device that supports 158.76 kg (350 lbs) of payload for theatrical and stage lighting. The Pantograph incorporates a cable management system that prevents tangling and cable crimping, and provides a clean look to the assembly, so powering and controlling lights is as easy as making a few connections. One Pantograph supports a varied array of lights from a single, high-powered light to an assembly of multiple lights. The Pantograph is stored in a custom dolly that ensures easy load-in, load-out, and set-up, saving time and resources.

Dimensions

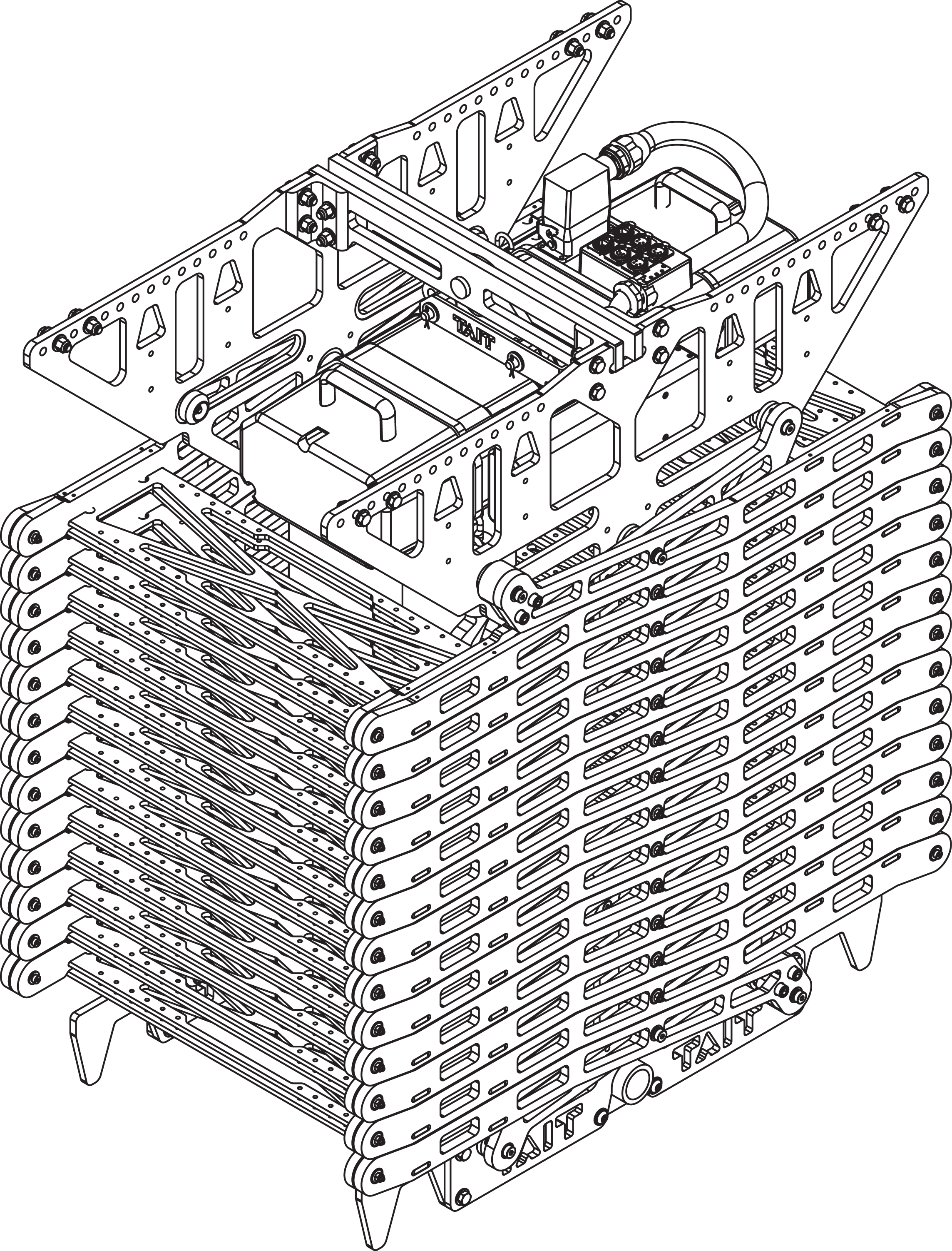

ISO View	Top View

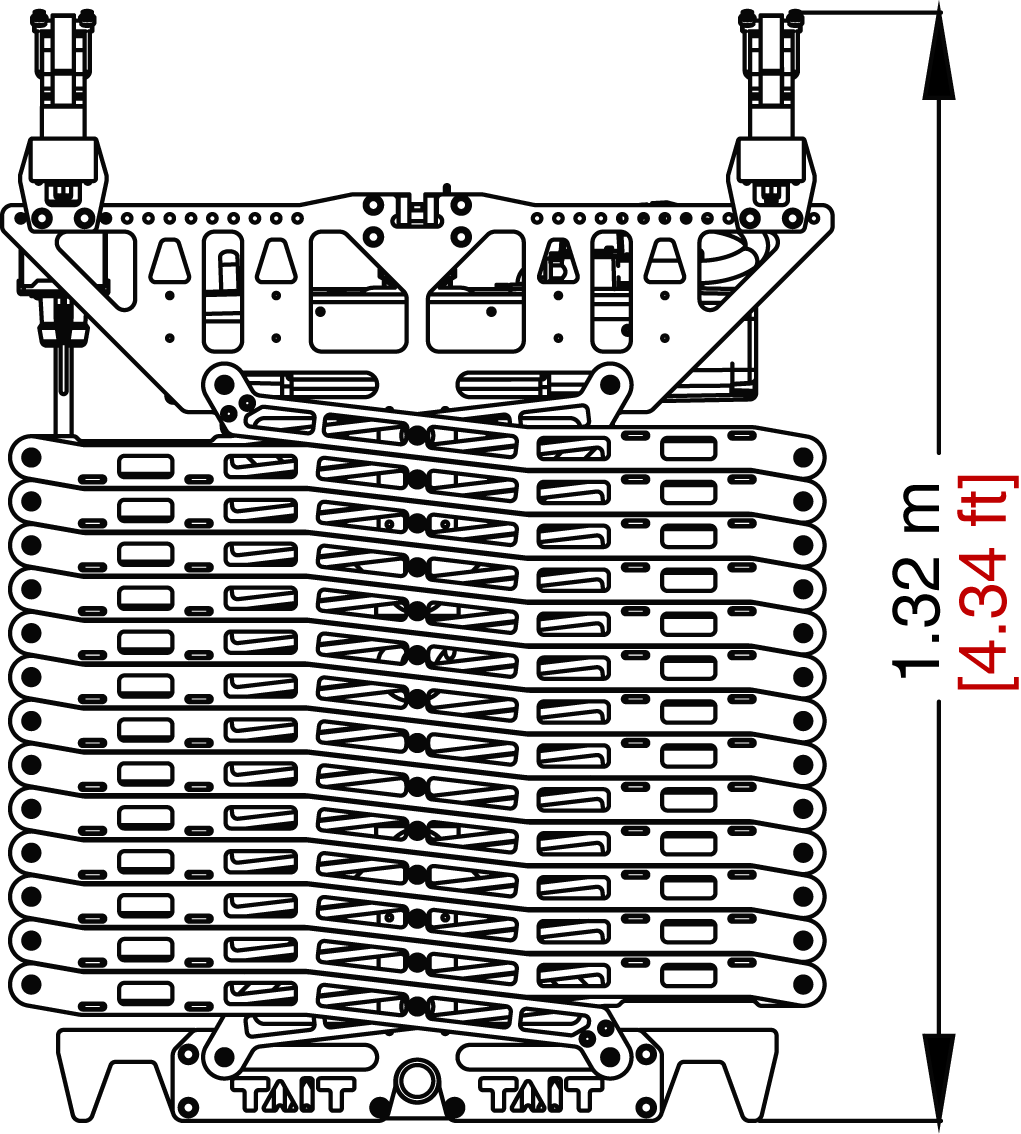

Side View, Collapsed


Configurations

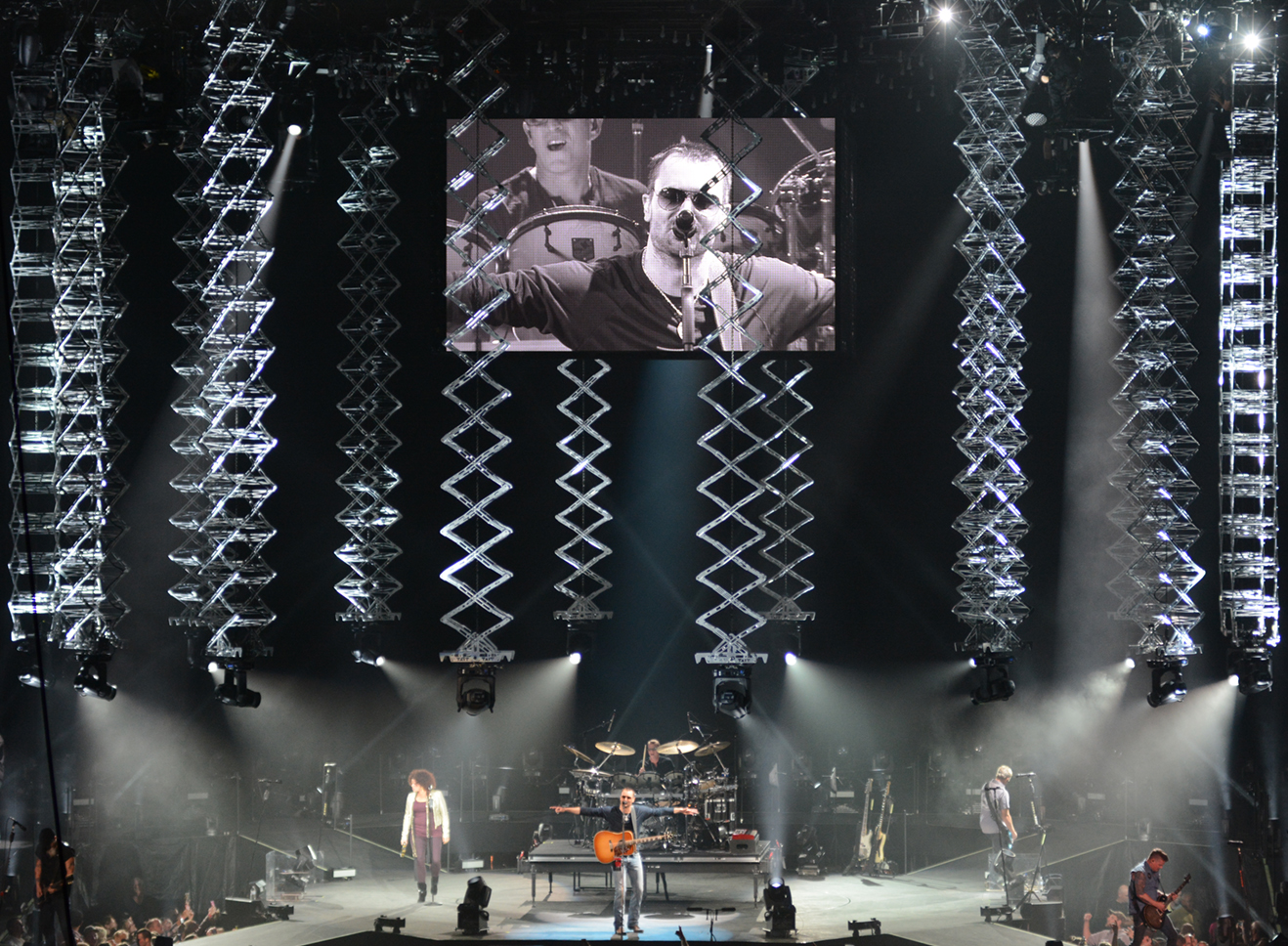

The Pantograph expanded and collapsed with suspended light assembly, showing travel distance of 10.38 m (34.05 ft):	The Pantograph is a versatile suspension device, as illustrated below with different light assemblies:

Specifications

Electrical
Input Voltage	100-240VAC, 50/60 Hz
Output Voltage	100-240VAC, 50/60 Hz
Input Current	20A, maximum
Output Current	15A, maximum combined
Connections
Power, Input	One (1), powerCON (1 Phase + 1 Neutral + 1 PE)
Power, Output	Three (3), powerCON (1 Phase + 1 Neutral + 1 PE)
Control, Input	5-pin XLR (male)
Control, Output	5-pin XLR (female)
Mechanical
Lift Speed	2.40 to 25.0 m/min (8 to 84 ft/min)
Travel	10.38 m (34.05 ft)
Operating Capacity	158.76 kg (350 lbs), in addition to Pantograph weight
Environmental
Operating Temp	40 C (104 F), maximum
Enclosure Rating	Type 1

Construction
Dimensions (L x W x H)	Collapsed: 0.92 m x 0.76 m x 1.32 m (3.03 ft x 2.50 ft x 4.34 ft) Expanded: 0.92 m to 0.76 m x 11.56 m (3.03 ft x 2.50 ft x 37.93 ft) Platform: 2.18 m x 1.73 m (7.15 ft x 5.67 ft)
Weight	234.72 kg (517.47 lbs), Pantograph only (no load attached)
Material	Majority of Pantograph constructed of 3/8 in, 1/4 in, and 1/2 in aluminum plate
Accessories
Cheeseborough Clamps	Four (4) heavy-duty trigger clamps, adjustable to fit a 12 to 24 in truss

Packaging and Shipping

Number of units per dolly	One (1)
Dimensions (L x W x H)	Pantograph and Dolly: 1.14 m x 0.76 m x 2.34 m (3.74 ft x 2.49 ft x 7.68 ft)
Weight	453.59 kg (1000 lbs)

ISO View	Front View	Side View

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
