Key Features
- Retains essential elements of a standard deck winch
- Dimensional compatibility with standard box truss
- Adjustable diverter and array of mounting options
- Compact footprint and practically silent operation
- Accessible cable drum, easy hand crank capability
|
 |
Description

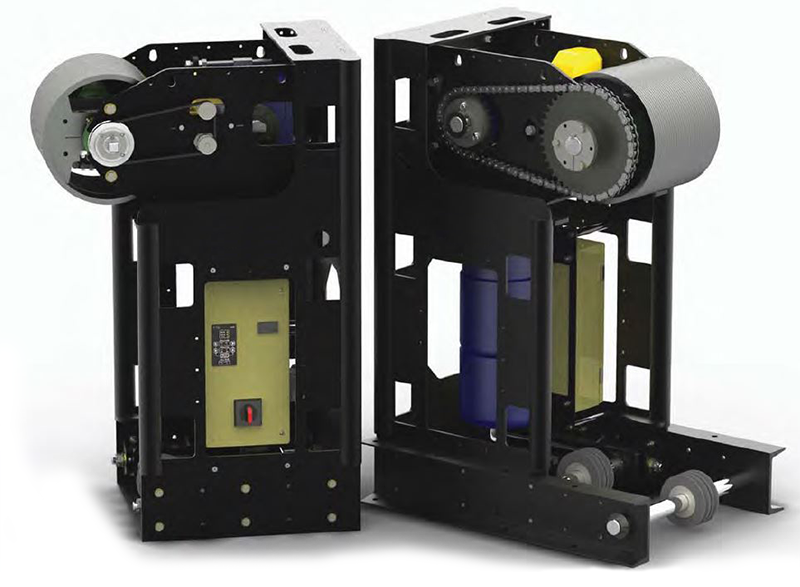

The K-Series Winch retains the essential elements of self-tracking diverter and tensioning pulleys, roller chain drive for easy speed range adjustments, and pinned drive disengagement and hand crank capability but adds new features including dimensional compatibility with standard box truss, adjustable diverter with clean, self-lubricating composite bearings and an array of bolt-on accessories and mounting options.
The K-Series Winch has 30.48 m (100 ft) of working capacity and any mount orientation is possible. It was designed with standard 508 mm (20 in) box truss in mind.
Specifications
| Electrical |
| Motor Phase |
3 Phase |
| Rated Voltage |
208VAC |
| Connections |
| Power |
30A at 208V |
| Control |
Handheld or network |
| Encoder |
Absolute Encoder, 1 mm accuracy |
| Mechanical |
| Safe Working Load |
907.18 kg (2000 lbs) maximum line pull |
| Maximum Speed |
0.15 m/s (0.5 ft/s) to 3.05 m/s (10 ft/s) |
| Travel |
Total Stroke: 30.48 m (100 ft), can be divided into multiple lines |
| Environmental |
| Operating Temp |
10° C to 35° C (50° F to 95° F), 50% RH |
| Construction |
| Dimensions (L x W x H) |
1124 mm x 724 mm x 521 mm (44.25 in x 28.5 in x 20.5 in) |
| Weight (winch only) |
170 kg (374.79 lbs) |
| Wire Rope |
6.35 mm ( 0.25 in) |
| Certifications |
|
| Entertainment |
Plasa BSR E1.43-201x |
| Safety |
European Machinery Directive
SIL 3 (requires optional safety features)
|
| British Standard |
BS 7905-1: 2001 |
| Accessories |
|
| Safety Features |
Single- or Dual-Circuit Load Cell, Secondary Encoder, On-winch Diverter Sheaves, Brake Release Monitors |
| |
|
Dimensions
| Top View |
Front View |
Side View |
 |
 |
 |
