LED Ground Support Spec Sheet

Lesa Snider
  • Updated

Key Features

  • A quickly deployable video-wall support
  • Allows different screen configurations with weights ranging from 400 kg (881 lbs) to 910 kg (2000 lbs)
  • Max video wall size achievable 4.2 m wide x 3.6 m tall (13.8 ft wide x 11.8 ft tall)
  • Built-in front outriggers and rear ballast for outdoor use
  • Front outrigger can be retracted for indoor use so bottom of screen can touch floor and hide rolling base
  • Integral hi-level access platform for video product servicing

Description

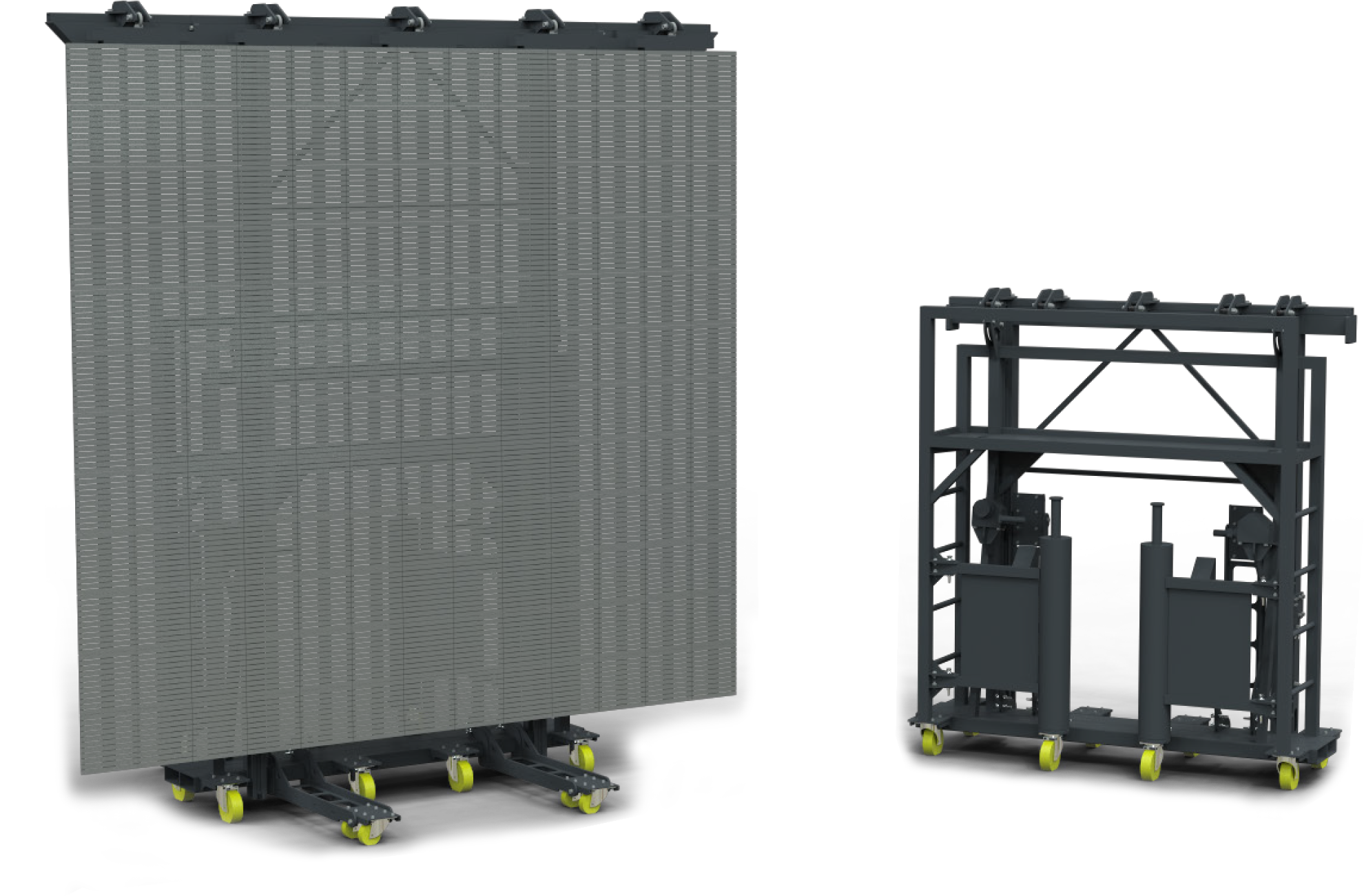

The unit is a rolling LED goalpost structure for temporary events that acts as its own dolly and ballast. It can roll into position after the video product is rigged, utilizing a video-tile specific bumper or a custom header bar, working with most, if not all, video-tile products on the market.

Specifications

Mechanical
Lift Speed Slow hand crank cable winches
Lift Travel 1.5 m (5 ft)
Overall Video Capacity 910 kg (2000 lbs)
Note Two (2) hand crank winches provide lift and side-to-side leveling
Construction
Dimensions (L x W x H)

Collapsed:
2.3 m x 0.75 m x 2.44 m (7.5 ft x 2.5 ft x 8 ft)

Expanded:
Up to 4.2 m (13.8 ft) wide (widest screen)
U p to 3.9 m (12.8 ft) tall (tallest screen)
2.22 m (7.3 ft) deep (front outriggers extended outdoors)
1.56 m (5.1 ft) deep (front outriggers retracted indoors)
Weight Self-weight of frame varies between 850 kg to 870 kg (1874 to 1918 lbs), depending on the extent of the top spreader bar


Packaging and Shipping

Number of units Packs three (3) units wide in a container or truck:
2.3 m (7.5 ft), 2.5 m tall (8 ft)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2016.09.20. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 19830015
