Key Features
- Custom, independent winch
- Accommodates wide range of applications
- Allows for large cable storage in a tight space
- 79.38 kg (175 lbs) max capacity on standard size two drive
- Variable number of picks and pick patterns.
|
 |
Description

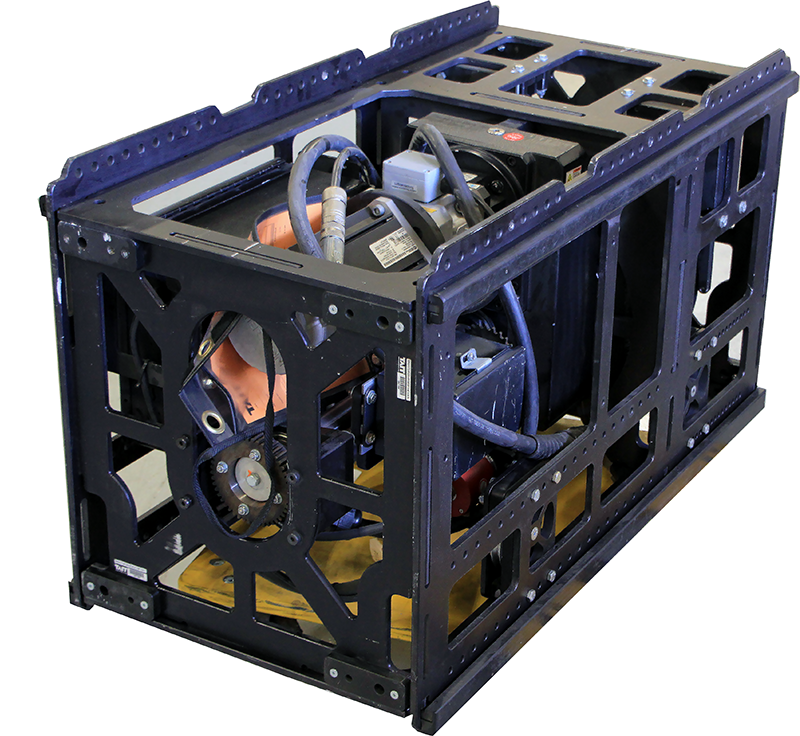

TAIT’s Y-Winch is an aluminum framed “Yo-Yo” styled winch with various attachment locations for internal diverter sheaves. It was designed to be mounted in pre-rig truss. The Winch Frame consists of 9.53 mm (3/8 in) aluminum plates held together with 3.175 mm (1/8 in) diameter roll pins. The drum is a yo-yo design with three (3) line maximum capacity. It has a safe working load 79.38 kg (175 lbs) on a standard size two (2) drive.
Specifications
| Electrical |
| Motor |
Emerson CT115ED300BAEBA |
| Rated Voltage |
208V |
| Connections |
| Control |
Size 2 or 3 drive |
| Encoder |
Optical Absolute |
| Input Brake |
Mayr Topstop 120/899.000.21/104v |
| Output Brake |
Mayr Silenzio 500/896.111.30/104v |
| Mechanical |
| Safe Working Load |
79.38 kg (175 lbs) |
| Maximum Speed |
1.04 m/s to 1.34 m/s (3.4 f/s to 4.4 f/s) |
| Maximum Travel |
18.29 m (60 ft) maximum travel per line |
| Environmental |
|
| Operating Temp |
10° C to 35° C (50° F to 95° F), 50% RH |
| Construction |
| Dimensions (L x W x H) |
950 mm x 540 mm x 490 mm (37.4 in x 21.26 in x 19.29 in) |
| Weight |
Approximately 181.82 kg (400.85 lbs) |
| Certifications |
|
| Safety |
European Machinery Directive |
| Accessories |
| Rope |
3.18 mm (0.125 in) steel wire rope, 7 x 19 SWR |
| |
|
Dimensions

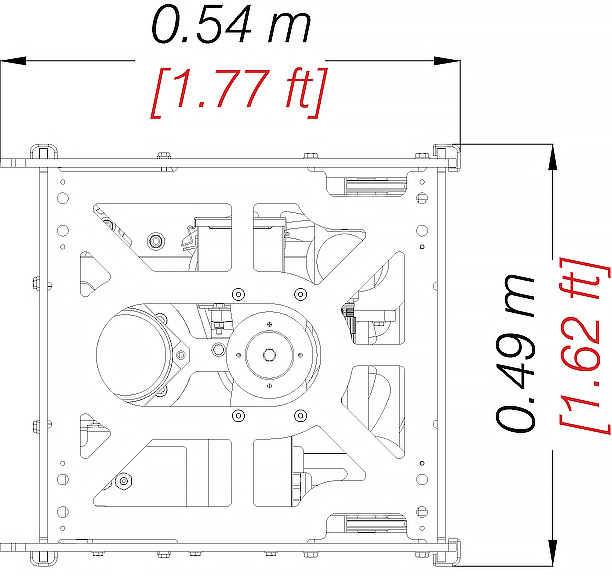

| Top View |

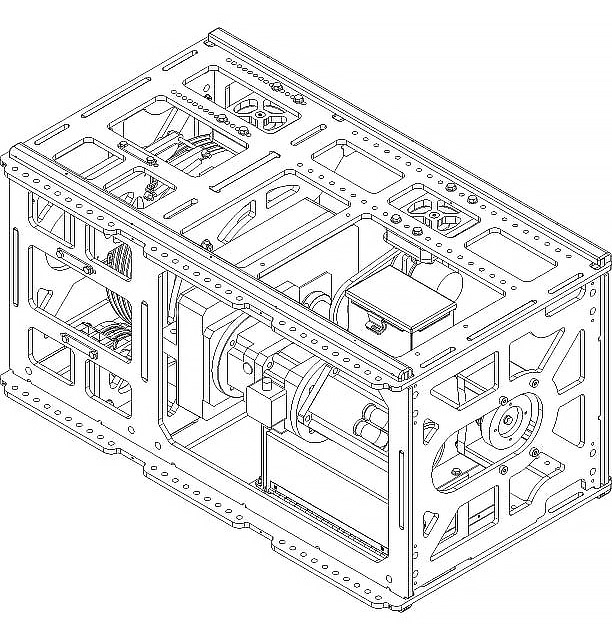

ISO View |
 |
 |

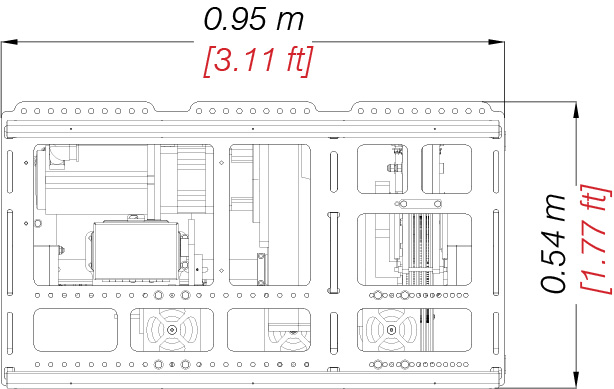

| Front View |

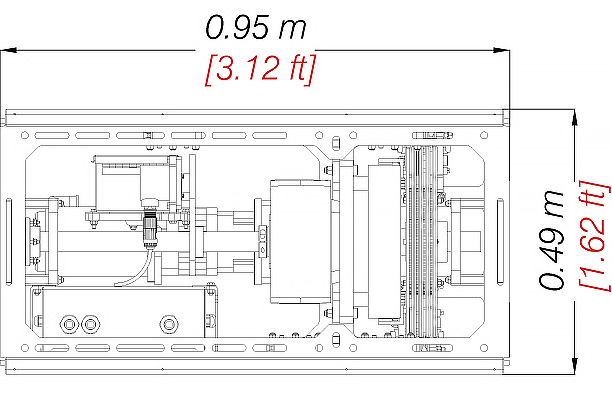

Side View |
 |
 |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2017.01.04. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
