Key Features
|
 |
Description

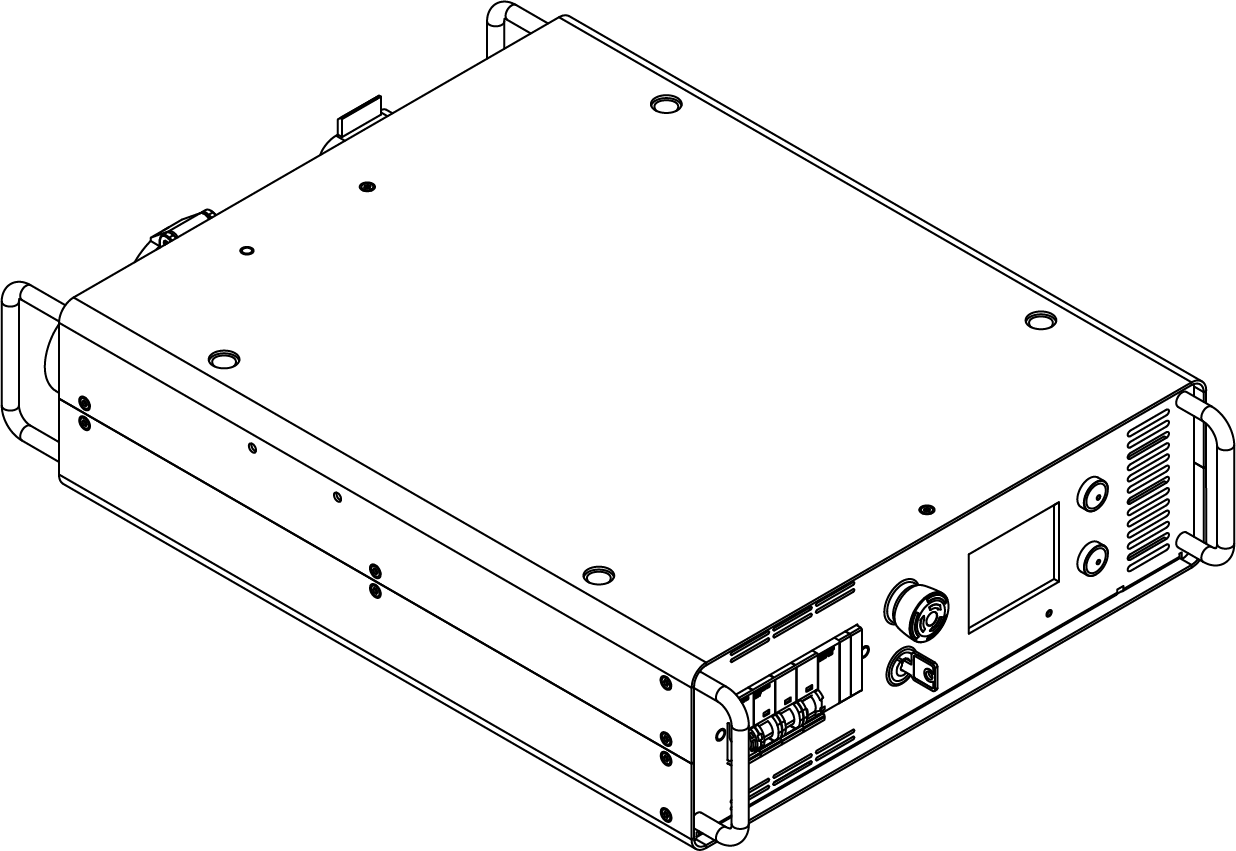

The Apex Drive v2 is compatible with all Apex Hoist models. The drive is compatible with all existing TAIT software which allows for seamless integration into existing systems. The on-board safety features mean that custom power distribution is not required. The drive features a touchscreen display for feedback and diagnostics, manual controls on the front panel for ease of use and complies with DGUV 17 (BGV C1) and EN17206. The drive has connectors that allow for daisy-chaining power and data between drives.
Specifications
| Electrical | |
| Rated Voltage | 208V / 400V / 480V AC ±10% 50-60Hz |
| Power | 208V: 19A nominal, 30A peak 3P+N+G 400V: 10A nominal, 15A peak 3P+N+G 480V: 8A nominal, 12.5A peak 3P+G |
| Mains Connector | 208V: L21-30 Twist-Lock® 400V: 30A IEC 60309 pin and sleeve (Ceeform) 480V: L16-30 Twist-Lock® |
| Drive Type | Closed loop |
| Motor Type | Servo or Induction |
| Connections | |
| Control | NAV:NET, Ethercon Connectors In and Thru |
| Construction | |
| Dimensions (L x W x H) | 420 mm x 610 mm x 130 mm (1.38 ft x 2 ft x 0.43 ft) |
| Weight | 19.3 kg (42.5 lbs) |
| Mounting | Rack mount (3U), Truss mount |
| Certifications | |
| Safety | SIL3 safety functions include: Emergency stop / hold to run SS1: Safe Stop 1 SLS: Safe Limited Speed SLA: Safe Limited Acceleration SEL: Safe Emergency Limit SDI: Safe Direction Safe Load Monitoring, Safe Brake Control, Safe Group Halt |
| Compliance | CE, EU Machinery Directive, EU EMC Directive |
Dimensions
| Front View | Back View |
 |
 |
| Top View | Side View |
 |
 |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.12.02. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 1983100
