Key Features

Custom TAIT product “catapults” hidden performer or prop for dramatic or surprise entrances and exits
Adjustable speed control to slowly raise prop or quickly launch performer above stage
Easily supports performer or large prop and allows for flexible staging options
Fully-compatible with TAIT Navigator and iQ systems allowing precise speed and motion control

Description

The TAIT Flaggapult is an adjustable-speed lift that can raise a prop for a slow reveal or can launch a performer to the stage for a dramatic entrance. The Flaggapult uses pneumatics to raise a maximum load of 113.39 kg (250.0 lbs) quickly and smoothly.

The Flaggapult seamlessly integrates with the TAIT Mag Deck system and is compatible with the TAIT Navigator and iQ systems. The Flaggapult’s flexibility and compatibility make it easy to integrate with any stage production and allow for precise speed and motion control.

Specifications

Electrical
Rated Voltage	205-240VAC
Connections
Power	L21-30
Control	Local, Pickle, TAIT Navigator, iQ
Mechanical
Lift Capacity	113.39 kg (250.0 lbs)
Maximum Lift Speed	5.08 m/s (200.0 in/s)
Travel	0.38 m to 1.83 m (1.25 ft to 6.0 ft)

Construction
Dimensions (L x W x H)	Overall Platform	2438.4 mm x 1066.8 nm x 1828.8 mm (96 in x 42 in x 72 in) 938.8 mm x 938.8 mm (36.95 in x 36.96 in)

Dimensions

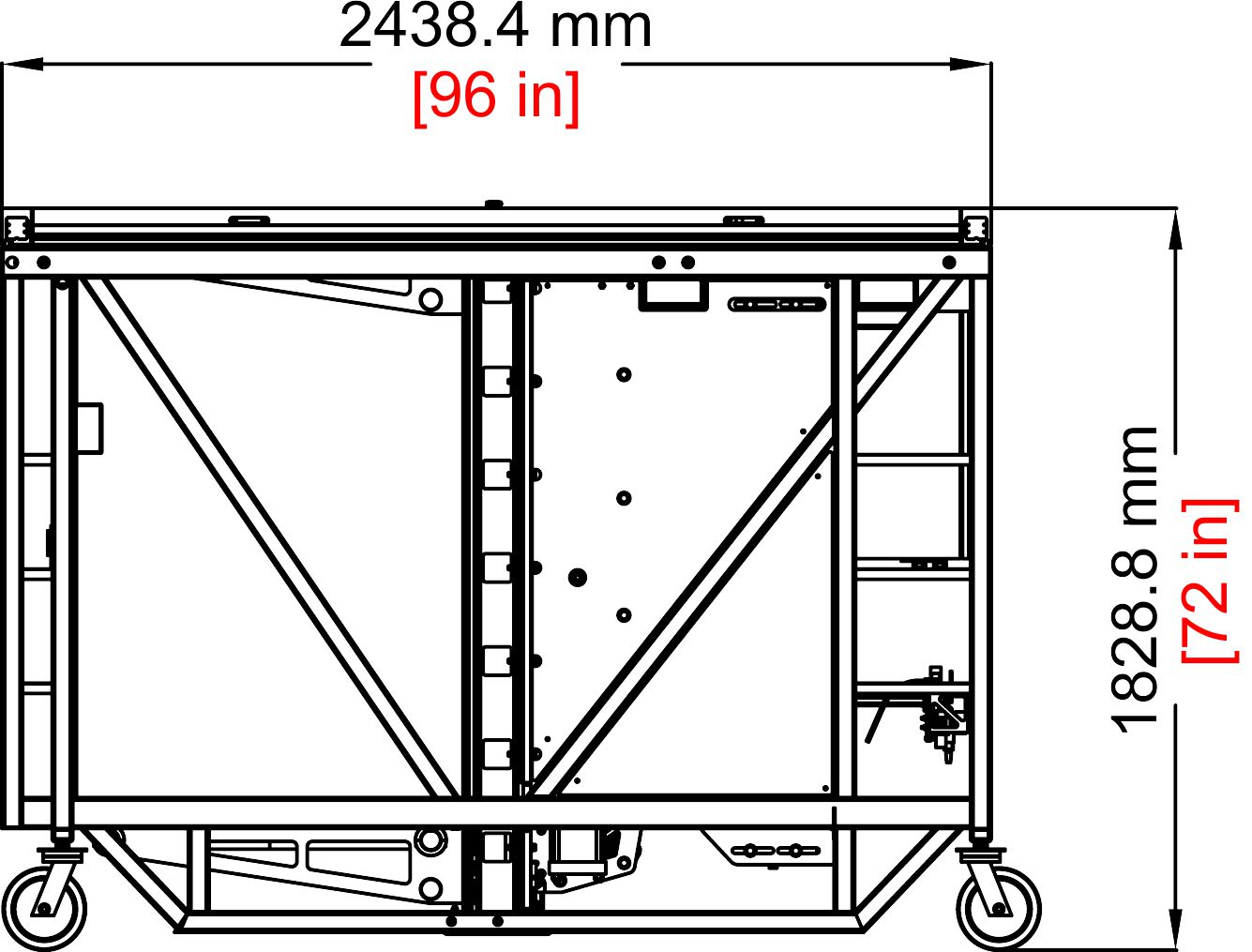

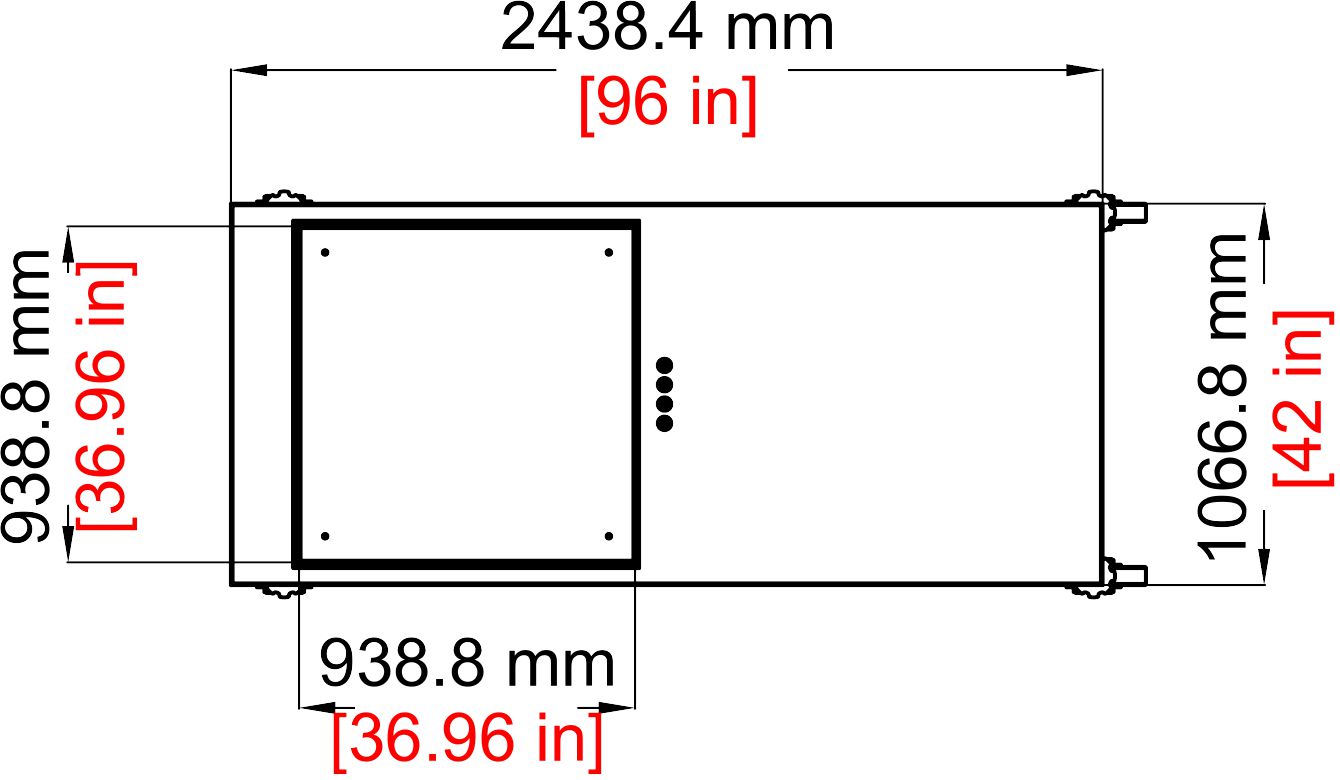

Side View	Top View

Packaging and Shipping

Flaggapult
Dimensions (L x W x H)	1143 mm x 2603.5 mm x 2082.8 mm (45.0 in x 102.50 in x 82.0 in)
Weight	952.54 kg (2100.0 lbs)
Flaggapult Compressor
Dimensions (L x W x H)	762 mm x 1676.4 mm x 2235.2 mm (30.0 in x 66.0 in x 88.0 in)
Weight	725.75 kg (1600.0 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.05.24. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 24200000, 24200000C (Comp Kit)
