Key Features
|
Description
The TAIT Flaggevator is a custom lifting product that allows performers or props to travel from 228.6 mm to 3048 mm (9.0 in to 120 in). The Flaggevator electromechanically raises a maximum load of 181.43 kg (400.0 lbs) quickly and smoothly.
The Flaggevator seamlessly integrates with the TAIT Mag Deck system and is compatible with the TAIT Navigator and iQ systems. The Flaggevator’s flexibility and compatibility make it easy to integrate with any stage production and allow for precise speed and motion control.
Specifications
| Electrical | |
| Rated Voltage | 205-240 VAC, 50/60Hz |
| Output Voltage | 120/208 VAC, 50/60Hz |
| Maximum Current | 30A |
| Connections | |
| Power In | One (1) L21-30 |
| Power Out | Three (3) L21-30 |
| Control | Local, Pickle, TAIT Navigator, iQ |
| Mechanical | |
| Lift Capacity | 181.43 kg (400.0 lbs) |
| Maximum Lift Speed | 0.40 m/s (1.33 ft/s) |
| Travel | From 228.6 mm to 3048 mm (9.0 in to 120.0 in) |
| Construction | ||
| Dimensions (L x W x H) | Overall Platform |
2755.4 mm x 1290 mm x 1828.8 mm (108.48 in x 50.8 in x 72 in) 1124.7 mm x 1124.7 mm (44.28 in x 44.28 in) |
Dimensions

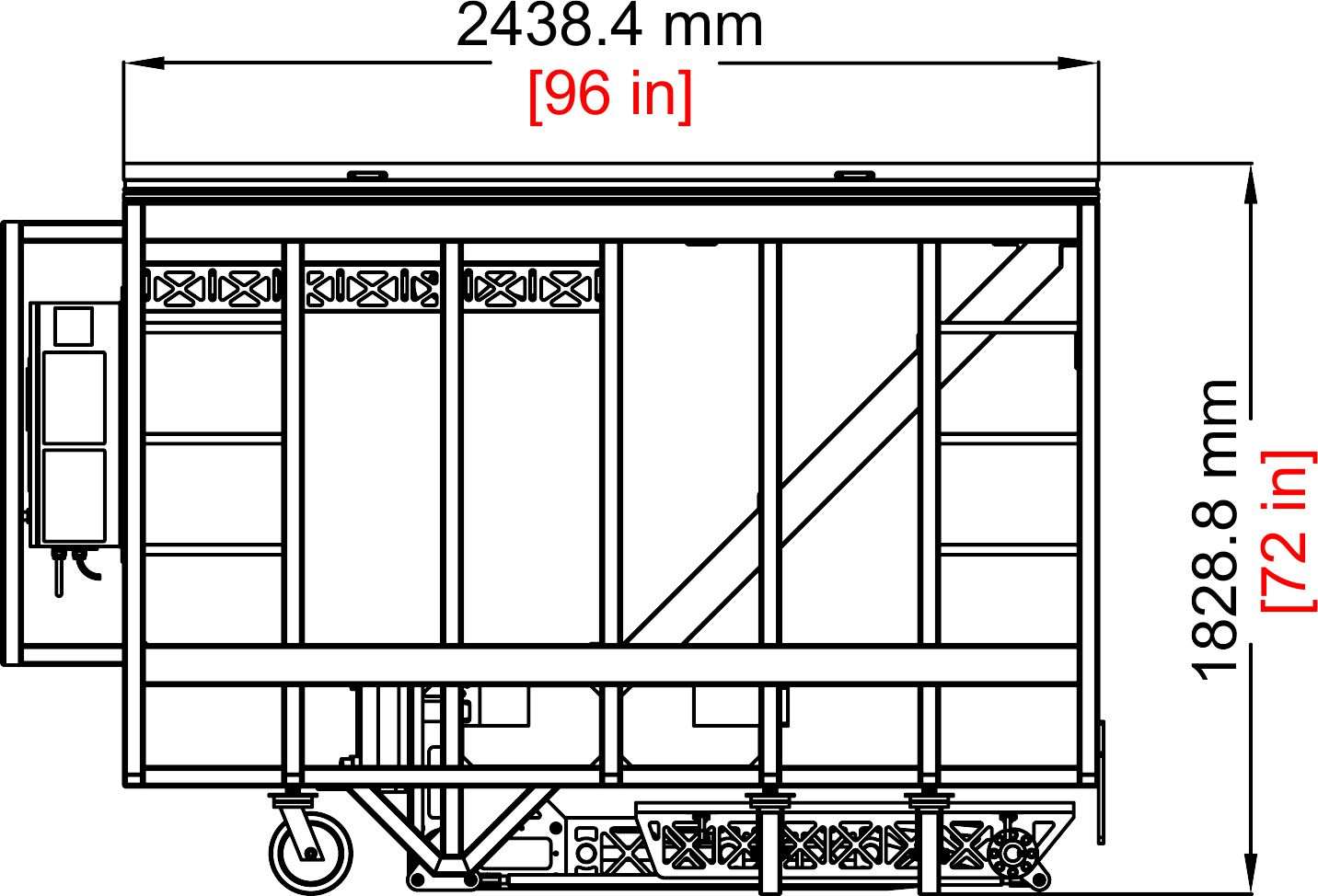

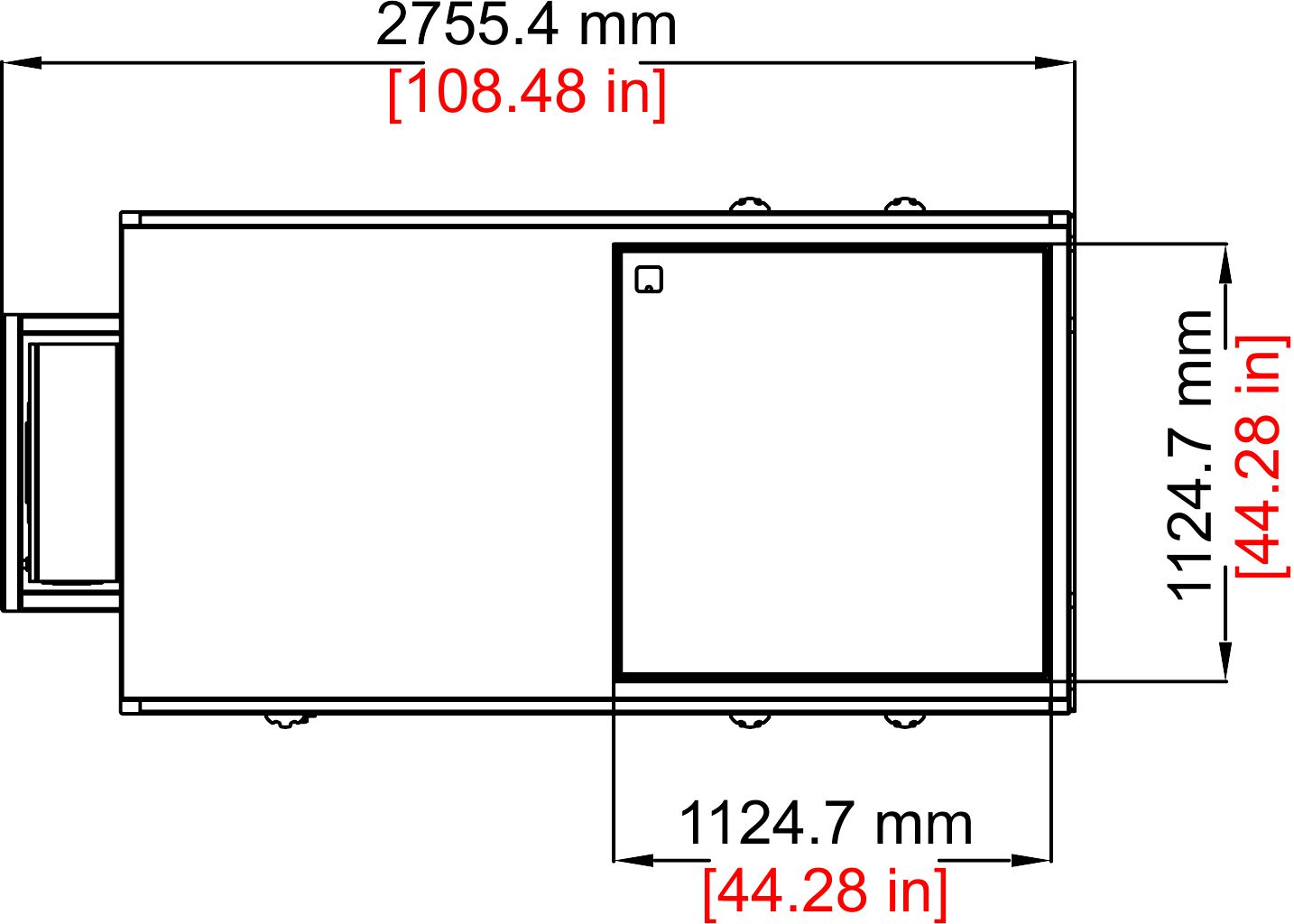

| Side View | Top View |
Packaging and Shipping
| Dimensions (L x W x H) | 2997.2 mm x 1473.2 mm x 2082.8 mm (118.0 in. x 58.0 in. x 82.0 in.) |
| Weight | 1133.98 kg (2500.0 lbs) |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.05.24. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 24100000, 24100000C (Comp Kit)
