Key Features
|
Description

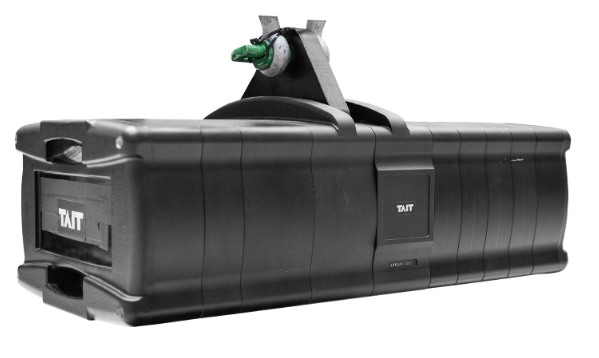

The TAIT Pulse Hoist is a variable speed electric chain hoist designed to meet the latest international standards with a lifting capacity of 2500 kg. The hoist is powered by the TAIT Pulse Drive 7.5 kW and can be operated using Navigator.
The maximum lift speed is 200 mm/s and the integrated load cell with overload and underload protection means that the hoist meets SIL 3 requirements. It features dual silent brakes and ultra-smooth movement resulting from precision speed and position control.
In conjunction with Navigator, key data such as maximum load and temperature can be monitored. This allows users to ensure that the hoist is not over-exerted, that regulatory requirements are met, and that maintenance schedules are kept precisely.
Specifications
Software Compatibility | |
Control System | TAIT Navigator and iQ |
Electrical | |
Motor Phase | 3 Phase + PE |
Voltage | 400/480V nominal |
Duty Cycle | Intelligent Duty Cycle management |
Brakes | Dual, low-noise and monitored |
Connections | |
Power, Network | Multi-function Harting connector |
Drive Controller | Pulse Drive 7.5kW |
Mechanical | |
Load Capacity | 2500 kg (5500 lbs) |
Max lift speed | 200 mm/s (39 ft/min) |
Chain | Size: 13 mm x 36 mm Weight: 3.8 kg/m (2.55 lbs/ft) |
Max. Length of Lift, achievable | 88 m (288.7 ft) |
Features | Integral SIL3 rated loadcell, temperature monitoring |
Construction | |
Dimensions (L x W x H) | 803 mm x 378 mm x 397 mm (31.6 in x 14.9 in x 15.6 in) |
Weight | 130 kg (287 lbs) |
Certifications | CE, EN17206 Use Case 1-4 |

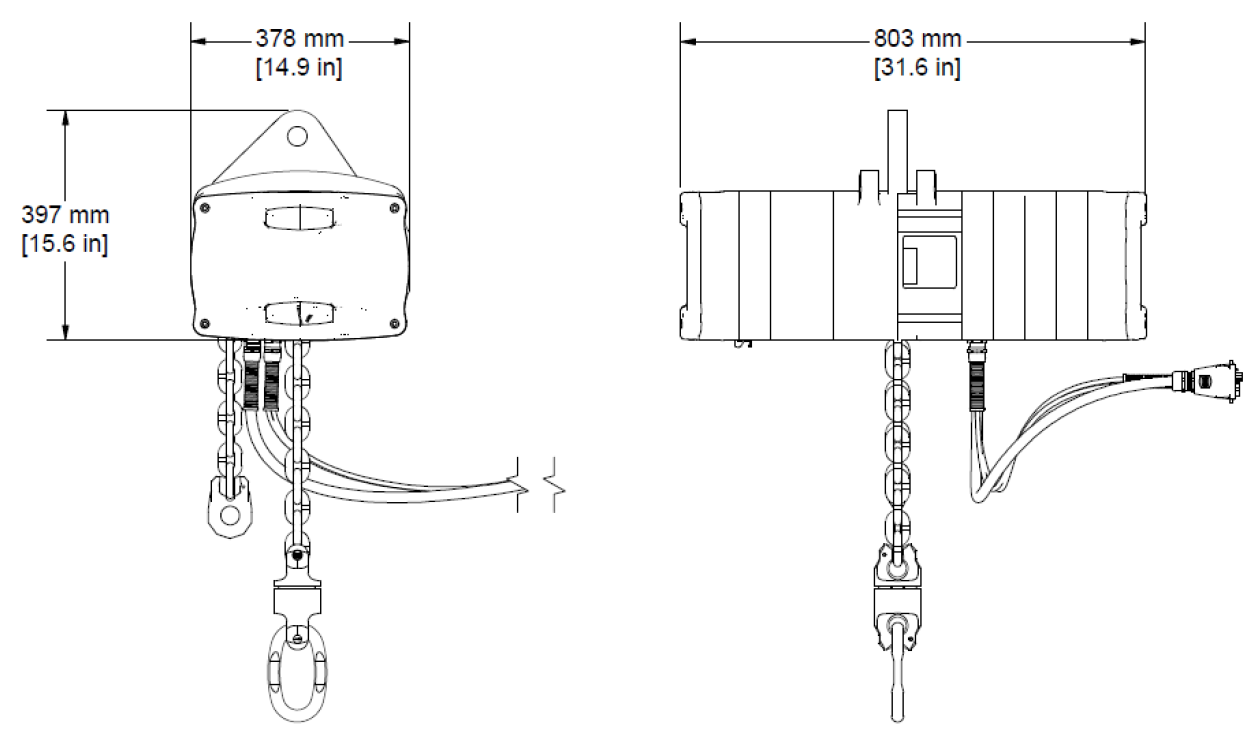

Dimensions
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2023.03.21. Copyright 2023 TAIT Towers Manufacturing, LLC. All rights reserved.
