Key Features
|
Description
The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. The revolve supports multiple performers, instruments, and props simultaneously.
This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance. The turntable is compatible with the TAIT Navigator Automation System, ensuring versatile operation and precise control.
Specifications
|
Electrical |
||
| Voltage | 208V | |
| Power | 2.5 HP | |
| Connections | ||
| Power | L22-30 | |
| Control | Local, Pickle, TAIT Navigator and iQ System | |
| Mechanical | ||
| Maximum speed | 4.0 RPM | |
| Load Capacity | 9000 lbs | |
| Construction | ||
| Dimensions (W x H) | 4.11 m x 0.61 m (13.5 ft x 2.0 ft) | |
| Weight | 2470 lbs | |
| Accessories | ||
| Surround Decks, Performer Support Pole |
Dimensions

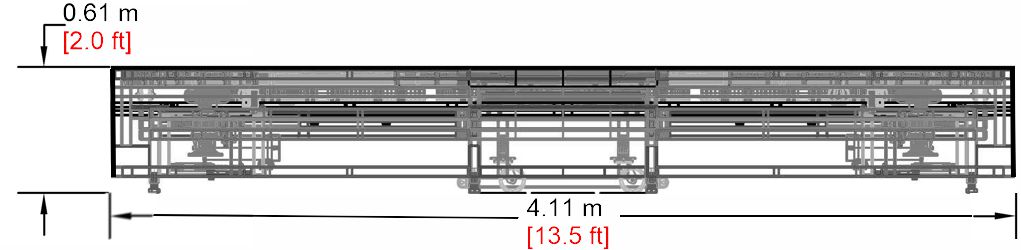

| Side View | Components Exploded View |

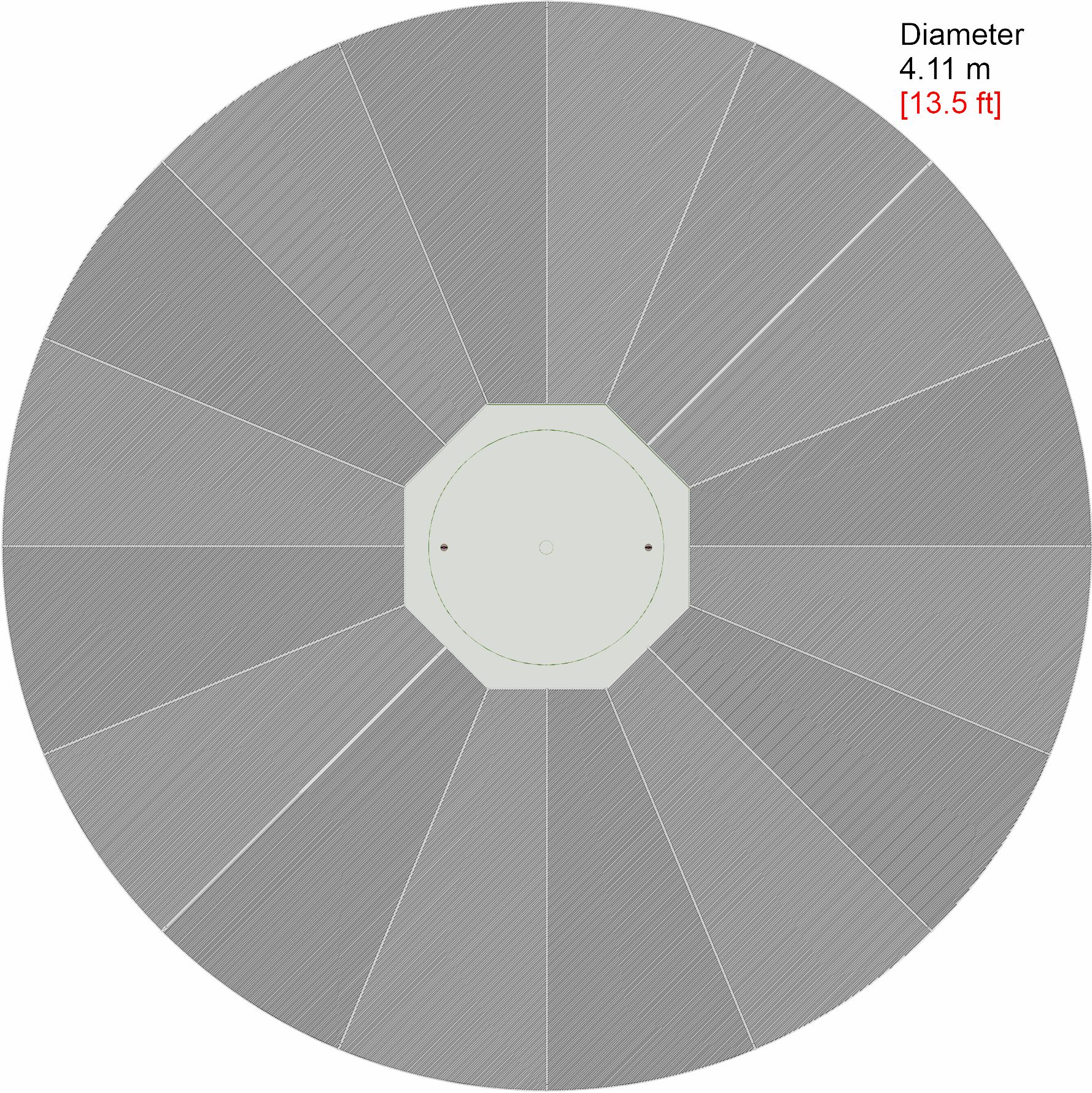

| Top View | |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2023.10.25 Copyright 2023 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 26301700K
