Key Features
|
Description
The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. It is a stand-alone revolve that can be integrated with other stage lifts to add an extra dimension of motion to concerts, stage shows, and production numbers
This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance.
Specifications
|
Electrical |
||
| Voltage | 180V | |
| Power | 0.75 HP | |
| Connections | ||
| Power | L22-30 | |
| Control | Pickle | |
| Mechanical | ||
| Maximum speed | 5.0 RPM | |
| Capacity | 453.5 kg (1000 lbs) | |
| Construction | ||
| Dimensions (W x H) | Ø2.44 m x 0.22 m (Ø8.0 ft x 0.71 ft) | |
| Weight | 680 kg (1500.0 lbs) | |
Dimensions

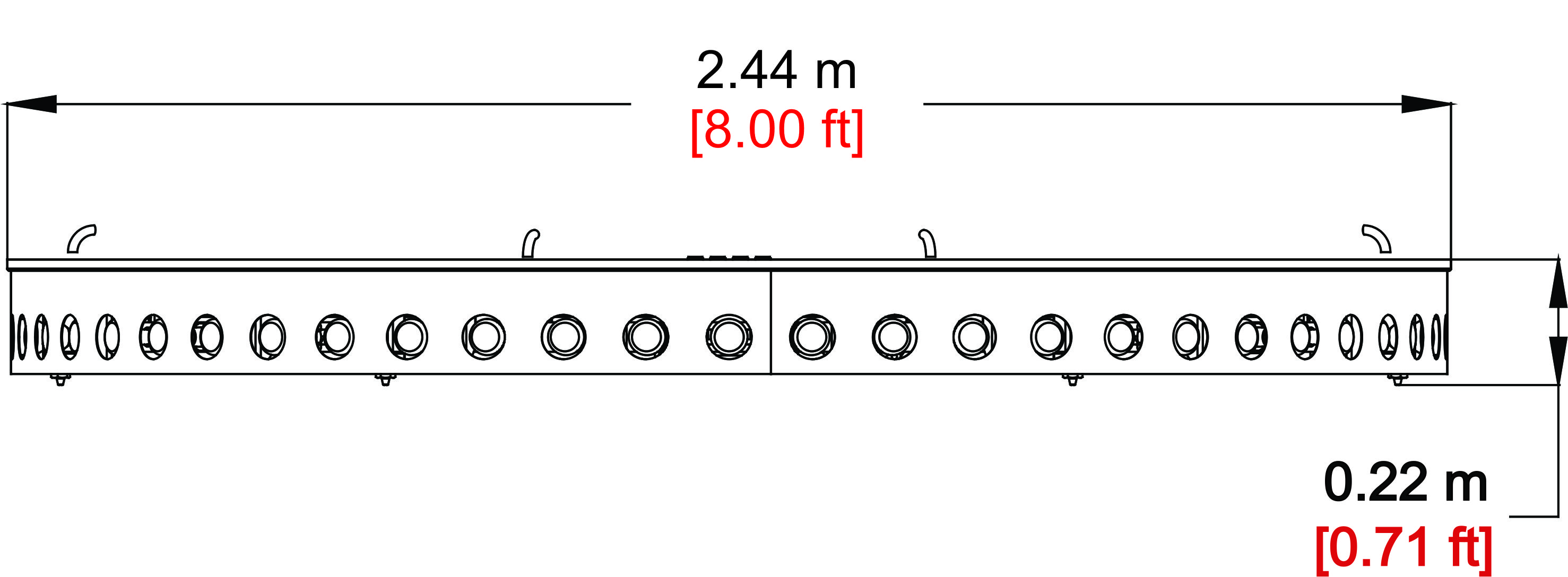

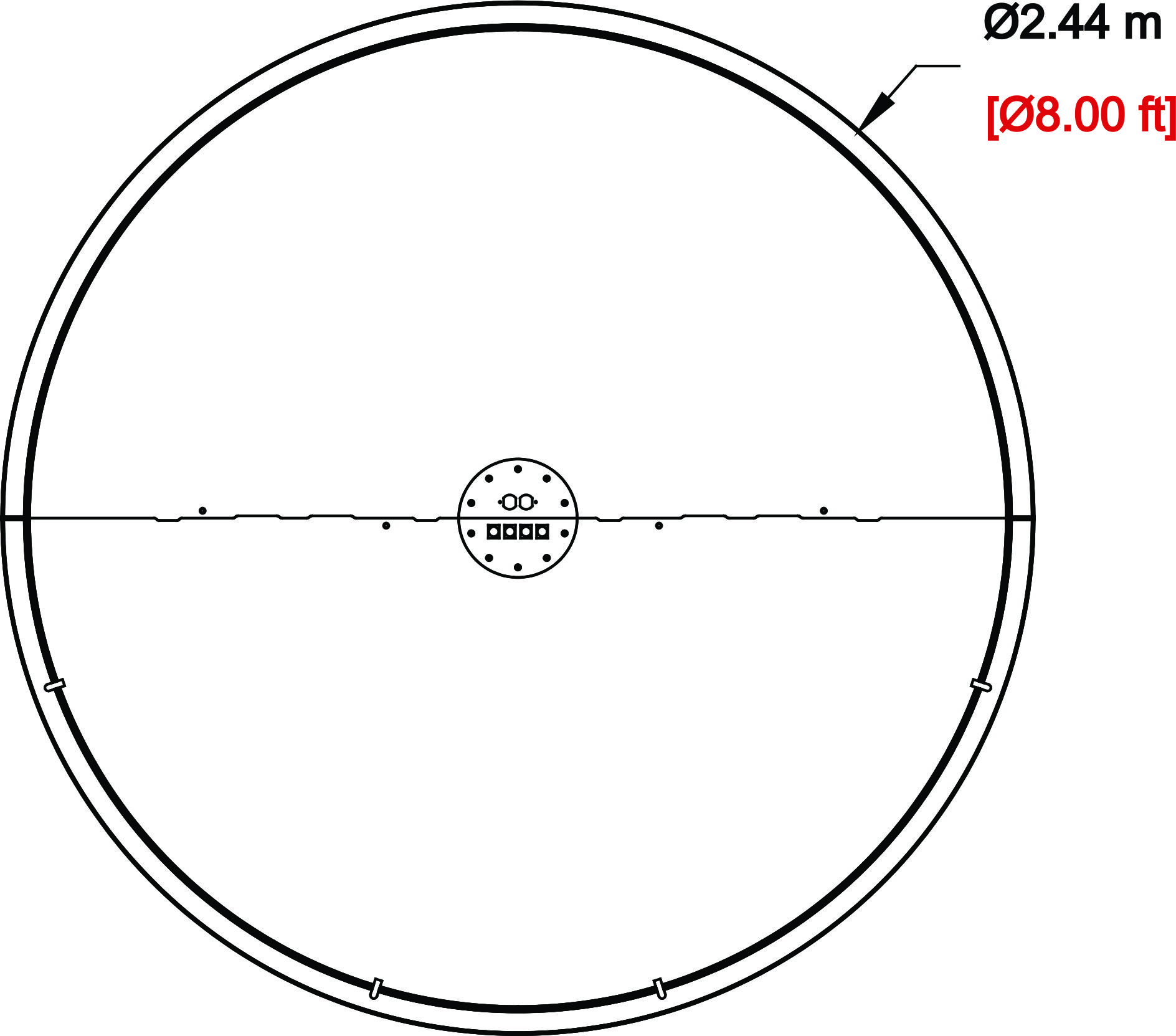

| Side View | Top View |

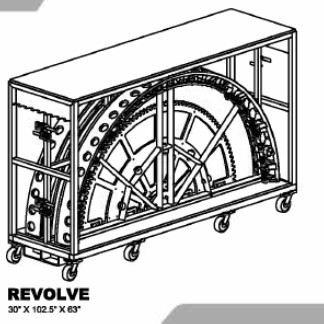

Packaging and Shipping
| Dimensions (L x W x H) | 2603.5 mm x 762 mm x 1600.2 mm (102.5 in x 30 in x 63 in) |
| Shipping Weight | 725.7 kg (1600 lbs) |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2023.10.31 Copyright 2023 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 26102000K
