Key Features
|
Description

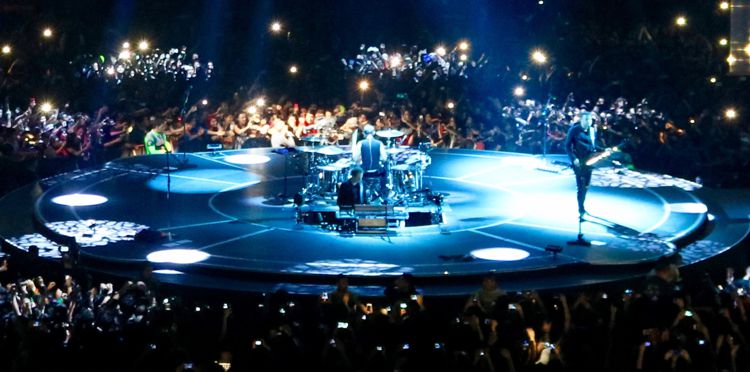

The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. The revolve supports multiple performers, instruments, and props simultaneously. The revolve can be connected to various stage lifts, such as the TAIT Scissor Lifts, to add an extra dimension of motion to concerts, stage shows, and production numbers. Option to configure as an annulus revolve with 21ft diameter center space for stationary staging elements.
This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance. The turntable is compatible with the TAIT Navigator Automation System, ensuring versatile operation and precise control.
Specifications
Electrical |
||
Voltage | 208V | |
Power | 8.0 HP (1.0 HP per motor) | |
Connections | ||
Power | L21-30 | |
Encoder | Ethercon | |
Control | NAV pickle, TAIT Navigator and iQ System | |
Mechanical | ||
Maximum speed | 2.0 RPM | |
Maximum Capacity | 7,937.9 kg (17,500 lbs) |
Construction | ||
Dimensions (L x W x H) | 11.88 m x 11.88 m x 1.52 m (39.0 ft x 39.0 ft x 5.0 ft) with surround | |
Weight | 3,133.4 kg (6908 lbs) | |
Accessories | ||
Performer Platform | Ø11.79 m (Ø38.69 ft) |
Dimensions
Side View | |
Top View - without Shelf | ISO with Shelf |

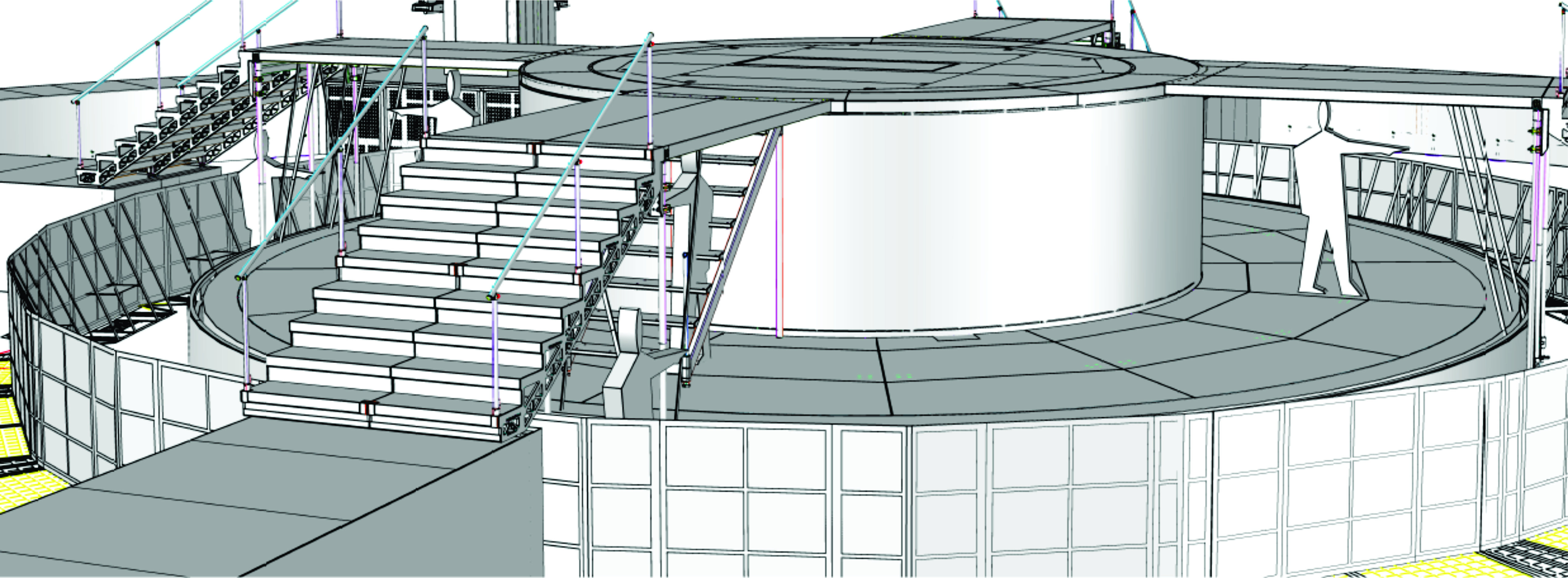

Top View - Annulus configuration | ISO Annulus with center stage element |

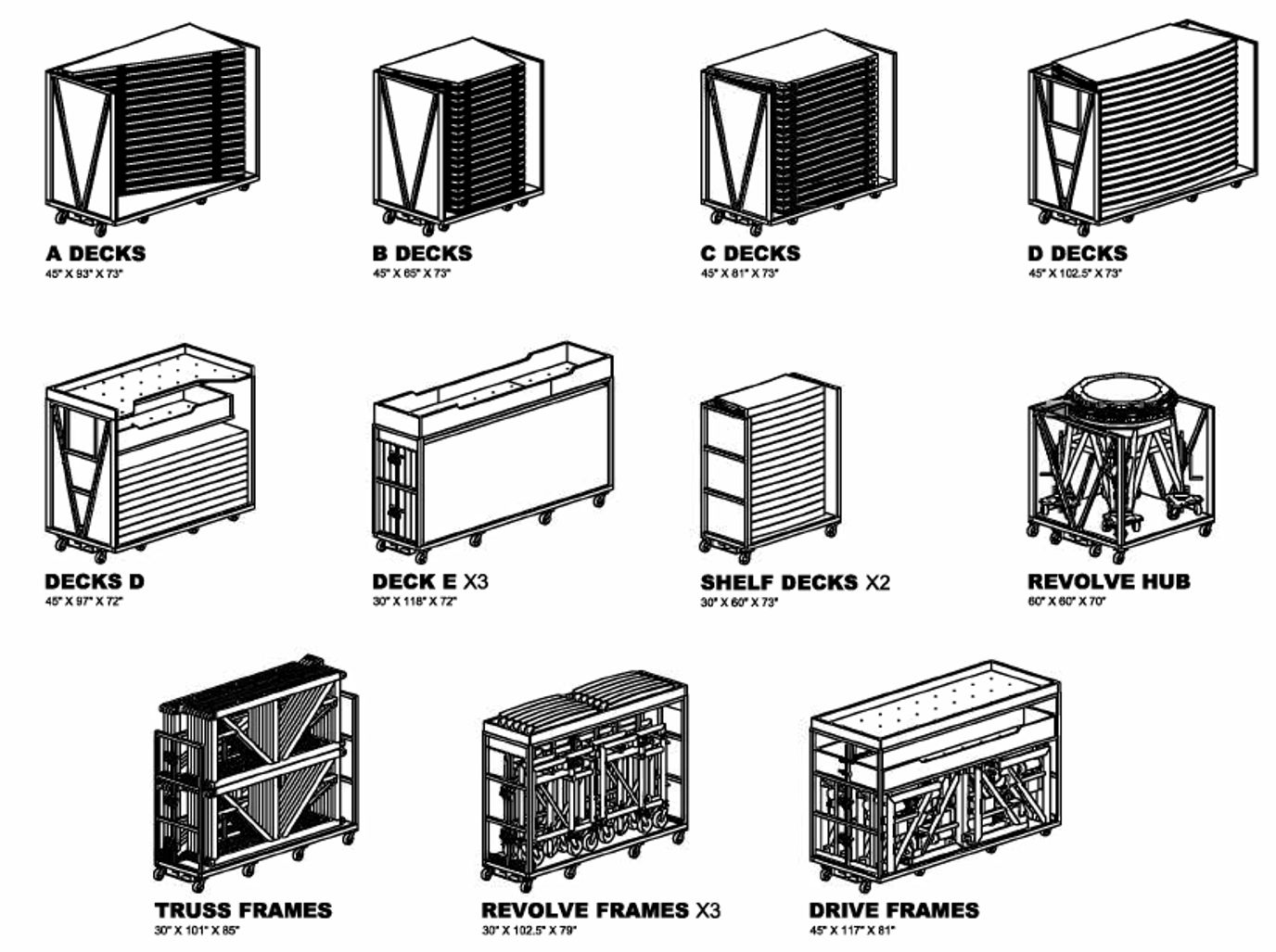

Packaging and Shipping
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.05.22 Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 26102500K, 26102505K
