Key Features
|
Description
The Mag Deck Revolve is a circular turntable show deck. Maximum speed 9 RPM. Rotation can be clockwise or counterclockwise. It is designed with underworld space for cable management and performer pathways. Center hub removable for cable pass through. The surface is comprised of waterproof plywood. The turntable has a 36-inch diameter with a 42” x48” surround mag deck.
This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance.
Specifications
|
Electrical |
||
| Motor Voltage | 10VDC | |
| Motor Power | 0.25 HP | |
| Connections | ||
| Power | L22-20 | |
| Control | Local, Pickle | |
| DC Drive | TAIT DCS2, DCS6 or DCS10 | |
| Mechanical | ||
| Maximum speed | 9 RPM | |
| Capacity | 113.4 kg (250 lbs) | |
| Construction | ||
| Dimensions (L x W x H) | 1220 mm x 1070 mm x 190 mm (48 in x 42 in x 7.44 in) | |
| Dimensions (turntable) | Ø 914.4 mm (Ø 36 in) | |
| Weight | 83.5 kg (184.0 lbs) | |
| Accessories | ||

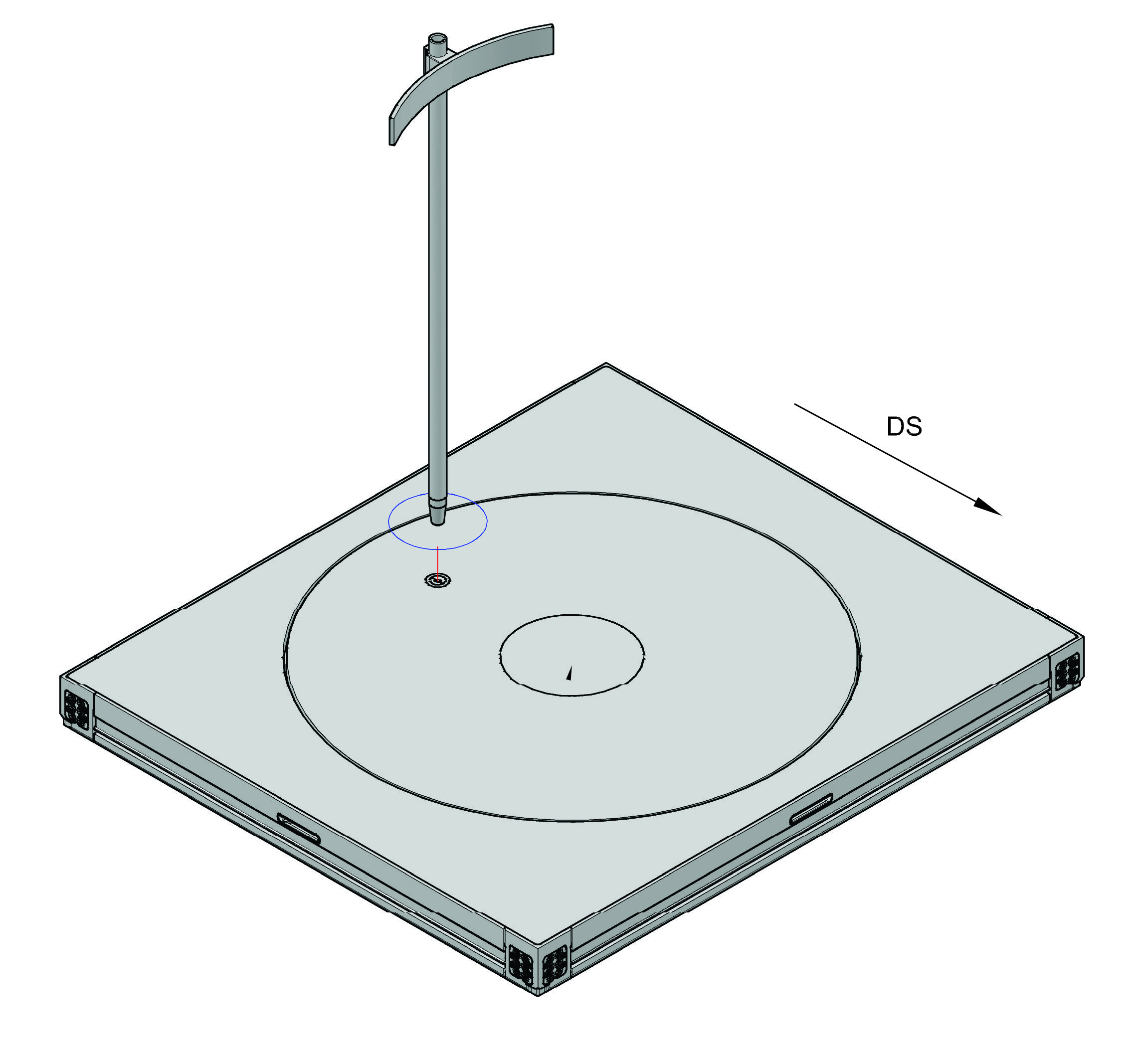

| Performer Support Pole |
Dimensions

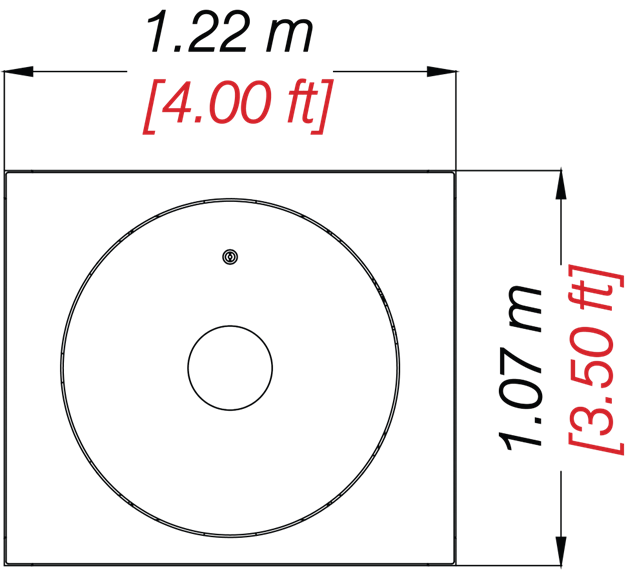

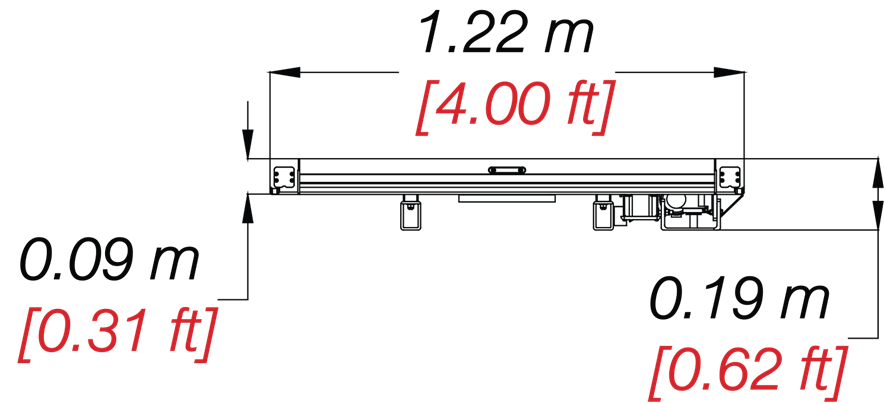

| Top View | Side View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2023.10.11 Copyright 2023 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 26301020K
