Self-Climbing Cable Lift Spec Sheet – TAIT Support

Key Features

Use to lift/lower performers, instruments and props
Configurable rise and travel distances
Two platform sizes available
Integrates seamlessly with TAIT Mag Deck system
Integrates with TAIT Navigator and iQ systems

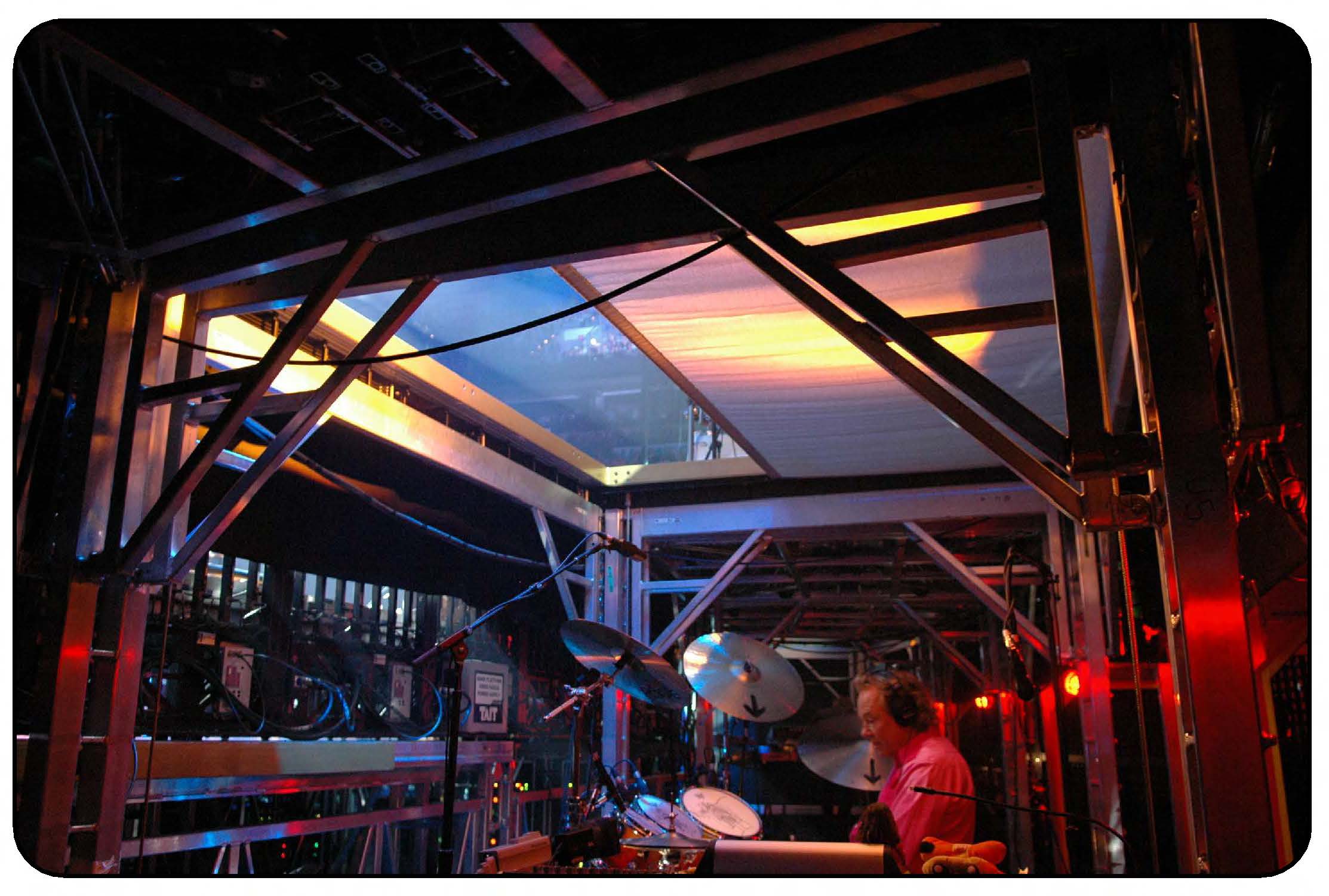

Description

The Self Climber Cable Lift is comprised of a two-part frame structure along with a lift deck platform. The lift platform is supported at four (4) independent locations via wire rope lines. The wire rope are driven by a gearbox and motor pair centrally located within the platform framing which includes an inline brake.

Available in two platform sizes: 98 x 86.5 inches and 116 x 86.5 inches. Frame height adjustable from 54 inches to 96 inches. The deck structure is aluminum with various surface options. Designed to hold performers, instruments and/or props up to 1500 lbs.

The Self Climber Cable Lift is fully-compatible with the TAIT Mag Deck system, so it integrates seamlessly into all stage designs. Integrated wheels for ease of positioning in stage area. The lift also is compatible with the TAIT Navigator Automation System, ensuring precise and versatile operation in any production.

Specifications

Electrical
Rated Voltage	200-240 VAC, 50/60HZ
Motor Power	2HP x2
Connections
Power	L22-30
Control	Local, Pickle, TAIT Navigator
Mechanical
Maximum Speed	0.21 m/s (0.7 fps)
Maximum Acceleration	0.14 m/s² (0.47 fps²)
Maximum Load	703.0 kg (1500.0 lbs)
Maximum Travel	2387.6 mm (94.0 in)
Construction
Frame Dimensions (L x W x H)	2794 mm x 2438.4 mm x 1371.6 to 3200.4 mm (110 in x 96 in x 54 to 126 in) or 3251.2 mm x 2438.4 mm x 1371.6 to 2743.2 mm (128 in x 96 in x 54 to 108 in)
Platform Dimensions (L x W)	2489.2 mm x 2273.3 mm (98 in x 89.5 in) or 2946.4 mm x 2273.3 mm (116 in x 89.5 in)
Weight	522 kg (1150 lbs) or 578 kg (1275 lbs)
Accessories
	Assorted Deck Surfaces to match show requirements

Dimensions

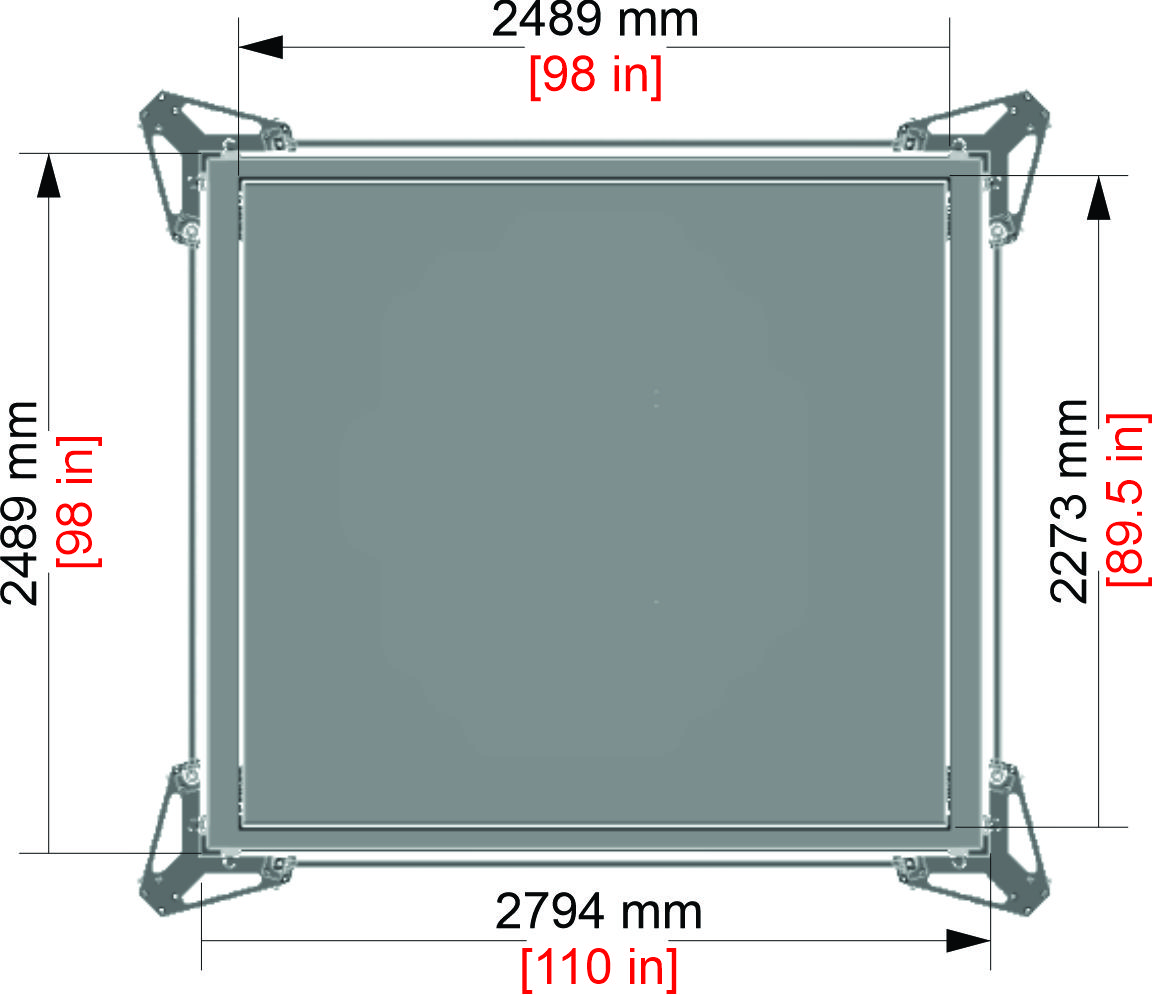

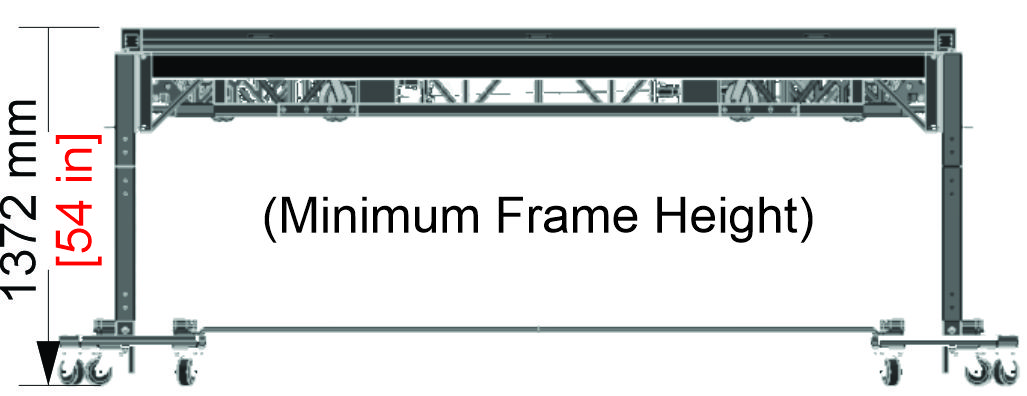

98 x 89.5 Platform Top View	Side View Maximum Frame Height	Side View Minimum Frame Height

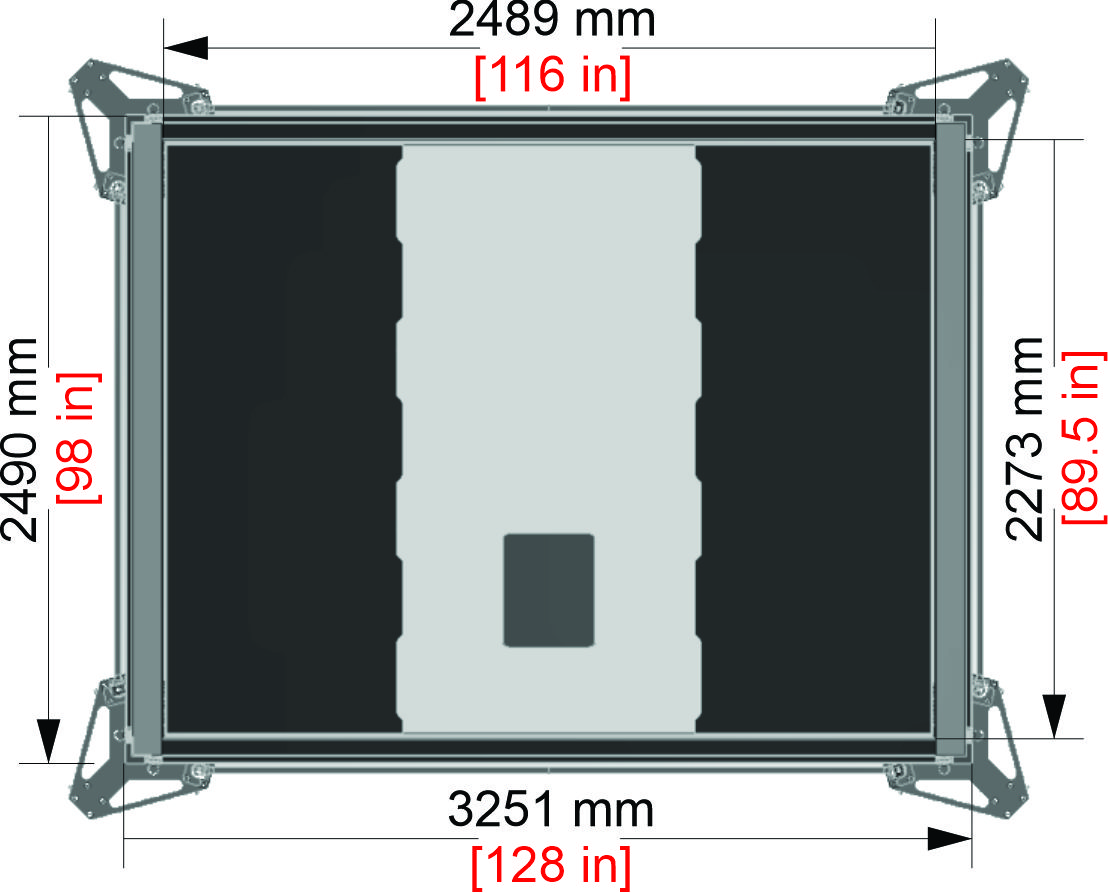

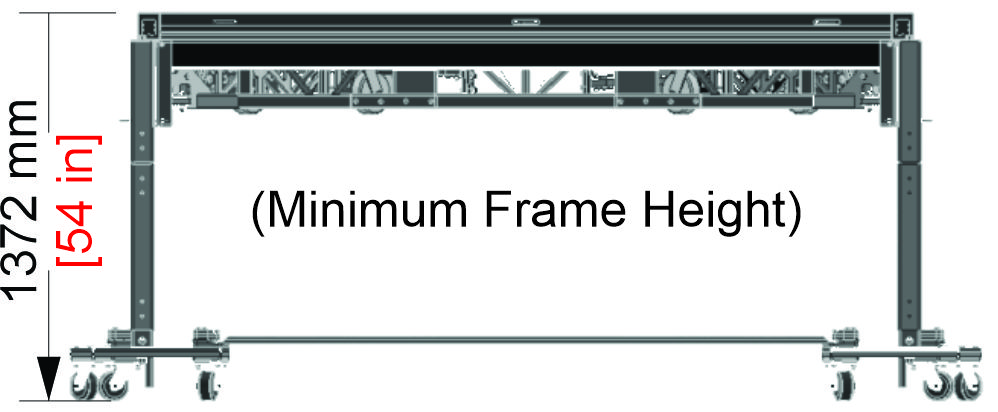

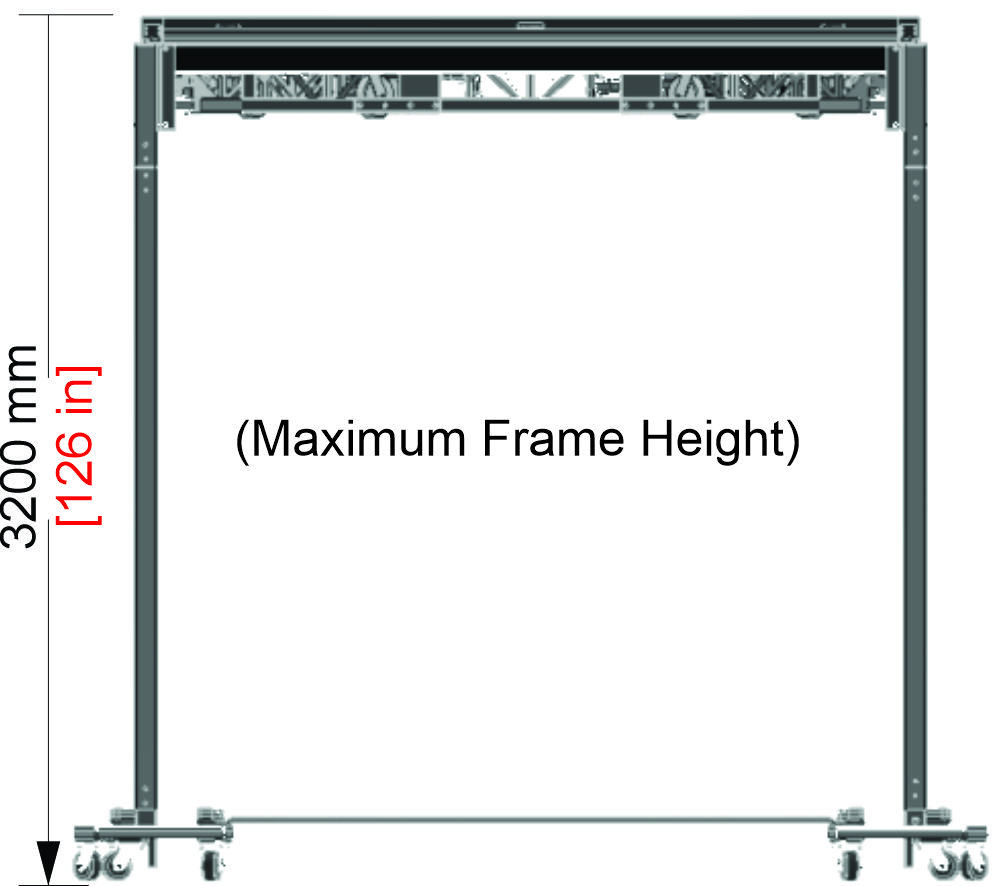

116 x 89.5 Platform Top View	Side View Maximum Frame Height	Side View Minimum Frame Height

Packaging and Shipping

Dimensions (L x W x H)		3175 mm x 762 mm x 2476.5 mm (125 in x 30 in x 97.5 in)
Shipping Weight		748.4 kg (1650 lbs) or 805.1 kg (1775 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.05.08. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 85150300, 85150350
