TAIT Revolve (17ft-3in) Spec Sheet – TAIT Support

Key Features

TAIT Revolve delivers dynamic stage presence for performers and props
17ft-3in diameter
Maximum speed 5 RPM
Compatible with TAIT Mag Deck system
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. Diameter of this revolve is 17ft-3in and can support multiple performers, instruments, and/or props up to 2500 lbs. It is a stand-alone revolve or can be integrated with two 90 split scissor lifts to add an extra dimension of motion to concerts, stage shows, and production numbers

This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance. Revolve deck heights can range from 48-inches to 96-inches utilizing TAIT Mag Deck legs. Control the revolve with the TAIT Navigator Automation System, ensuring versatile operation and precise control.

Specifications

Electrical
Voltage		180V
Power		2.0 HP (1.0 HP per motor)
Connections
Power		L22-30
Control		Local, Pickle, TAIT Navigator
Mechanical
Maximum speed		5.0 RPM
Capacity		1133.9 kg (2500.0 lbs)

Construction
Dimensions (W x H)		Ø2.44 m x 0.81 m (Ø17.25 ft x 2.65 ft) without legs
Weight		975.2 kg (2150.0 lbs)

Dimensions

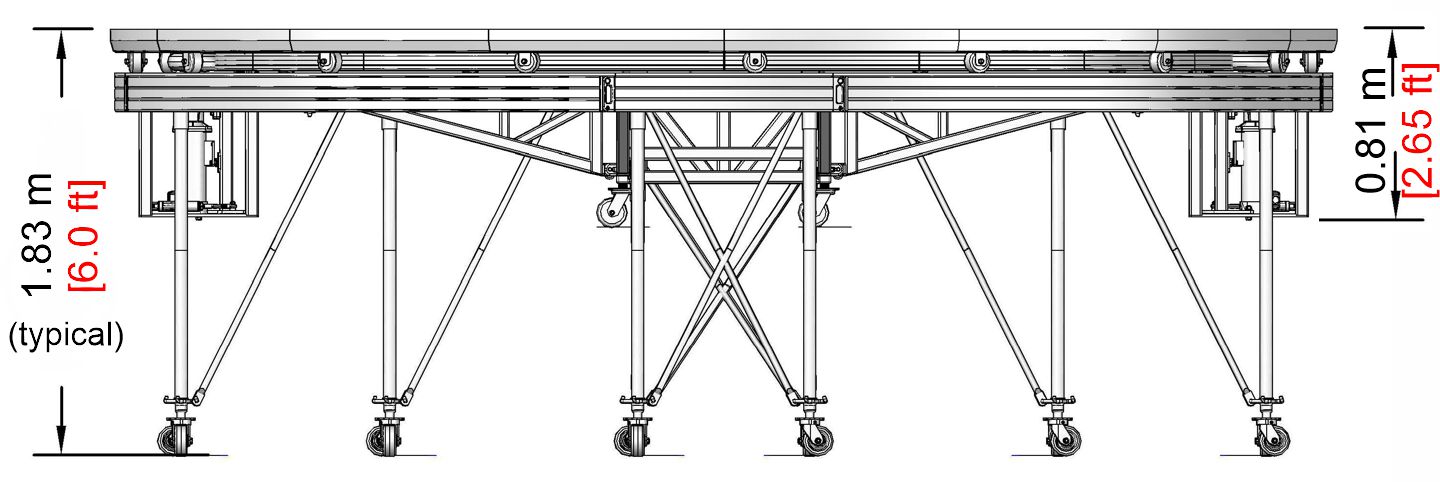

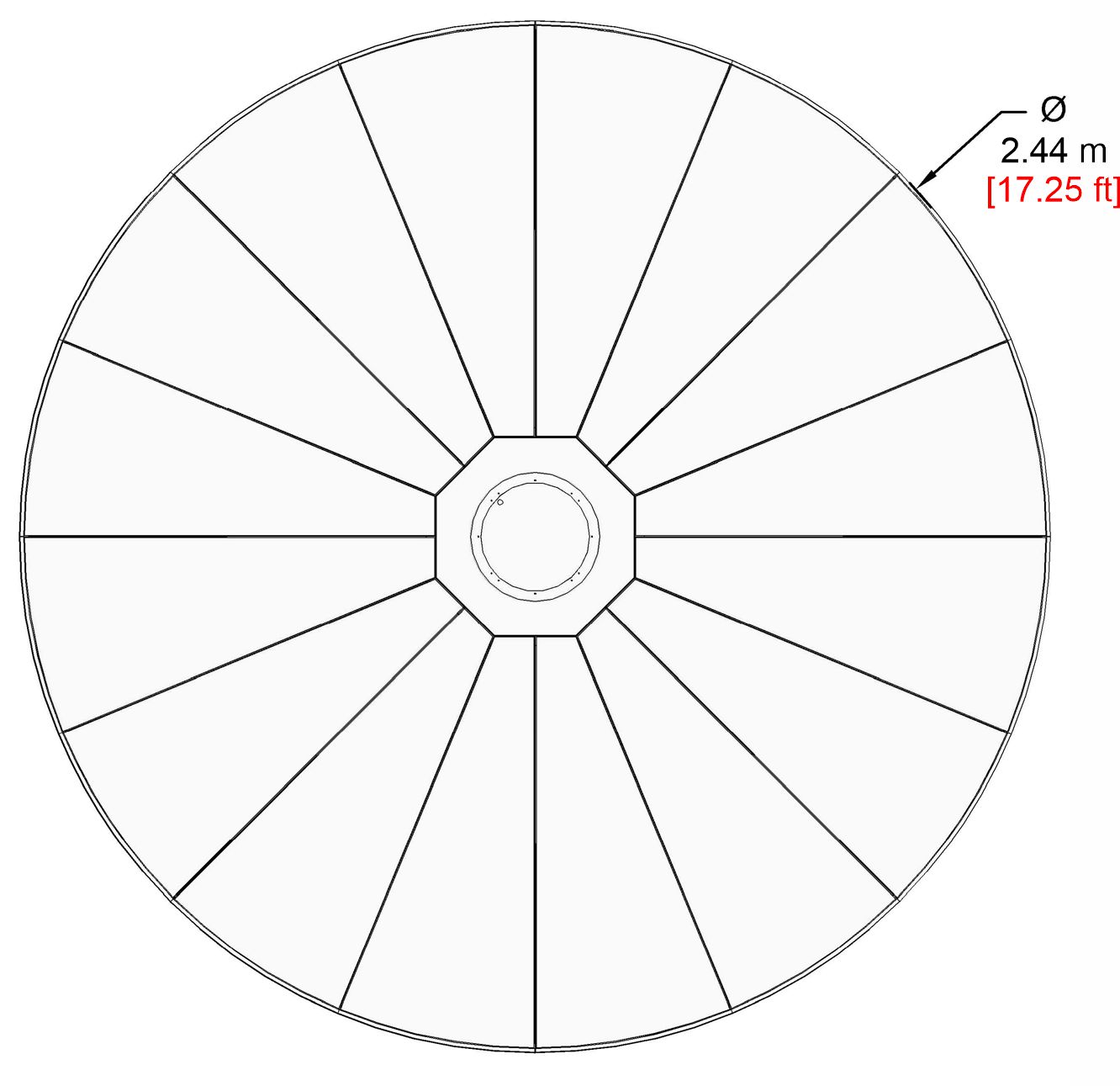

Side View	Top View

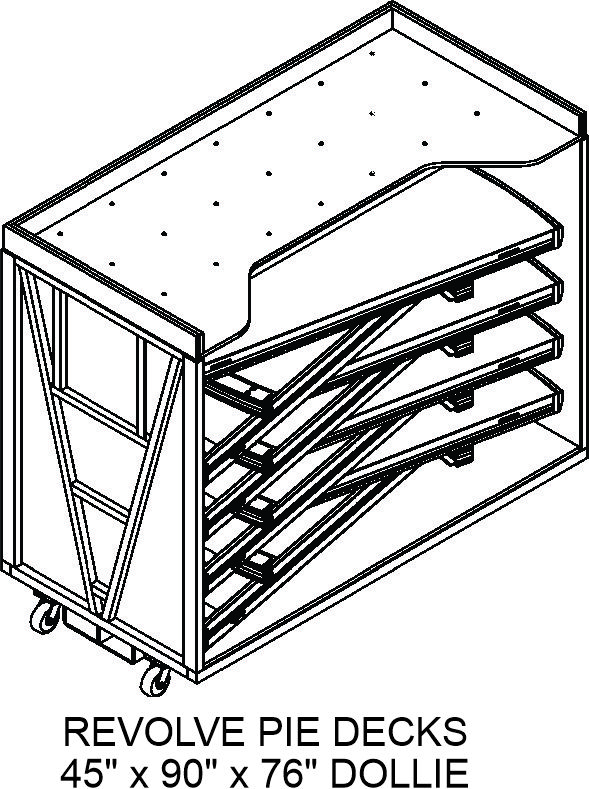

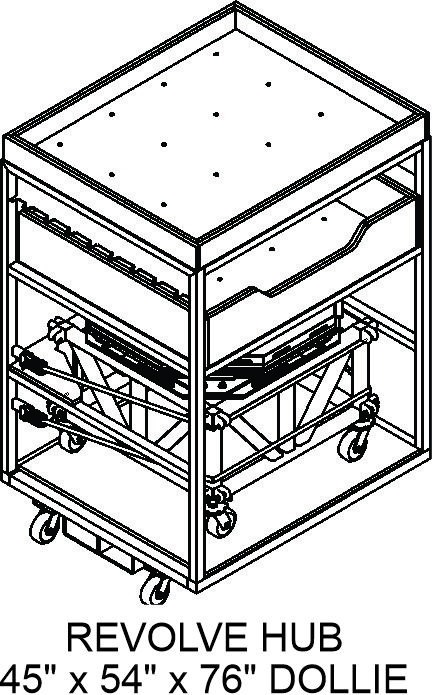

Packaging and Shipping



Shipping Weight	1814.4 kg (4000 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2023.11.29 Copyright 2023 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 17008100K
