Push Chain Scissor Lift Spec Sheet

Key Features

TAIT custom powered scissor lift for staging flexibility and dramatic effects Supports up to 1277.3 kg (2816 lbs) Exceptionally stable Sync multiple Push Chain Lifts to create larger lifting platform or staging effect Fully compatible with TAIT Mag Deck system Integrates with TAIT Navigator and iQ systems

Description

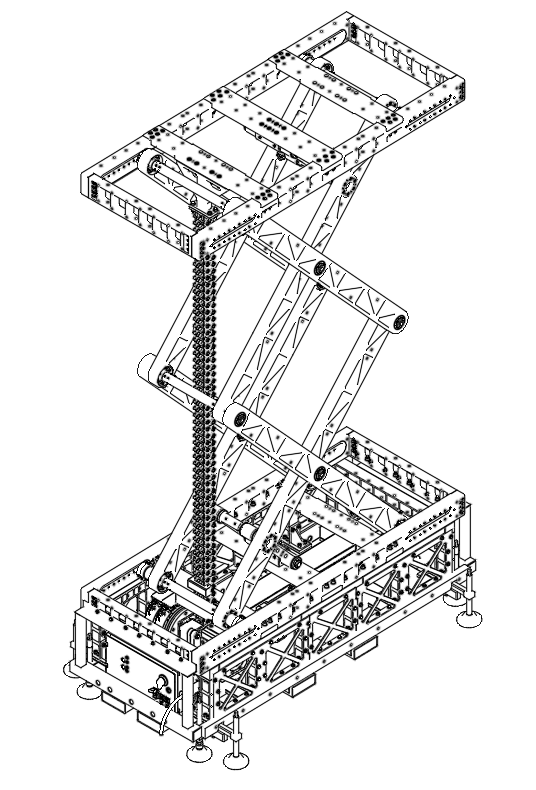

The TAIT Push Chain Scissor Lift outperforms other scissor lifts with stability and "feel" for performer with its sync link symmetric lifting mechanism. It utilizes a single Serapid chain to power the scissor action of the platform. As the lift is performed, a set of rollers traverse along the top and bottom frame to allow the linkages to extend or retract. The platform is 1.22 x 2.44 m (4 ft x 8 ft).  Motor components are housed in lift base. Multiple lifts can be connected to support large stage applications or unique effects to create dynamic productions. A single lift capacity is 1277.3 kg (2816 lbs) up to height of 12ft. Maximum speed 0.3 m/s (0.98 ft/s). Rated for outdoor use with wind mitigation procedures.

The Scissor Lift is fully compatible with the TAIT Mag Deck system to integrate seamlessly into all stage designs. The lift is also interfaces with the TAIT Navigator Automation System, ensuring precise and versatile operation in any production. Multiple lifts can be sequenced for complex movements.

Specifications

Dimensions

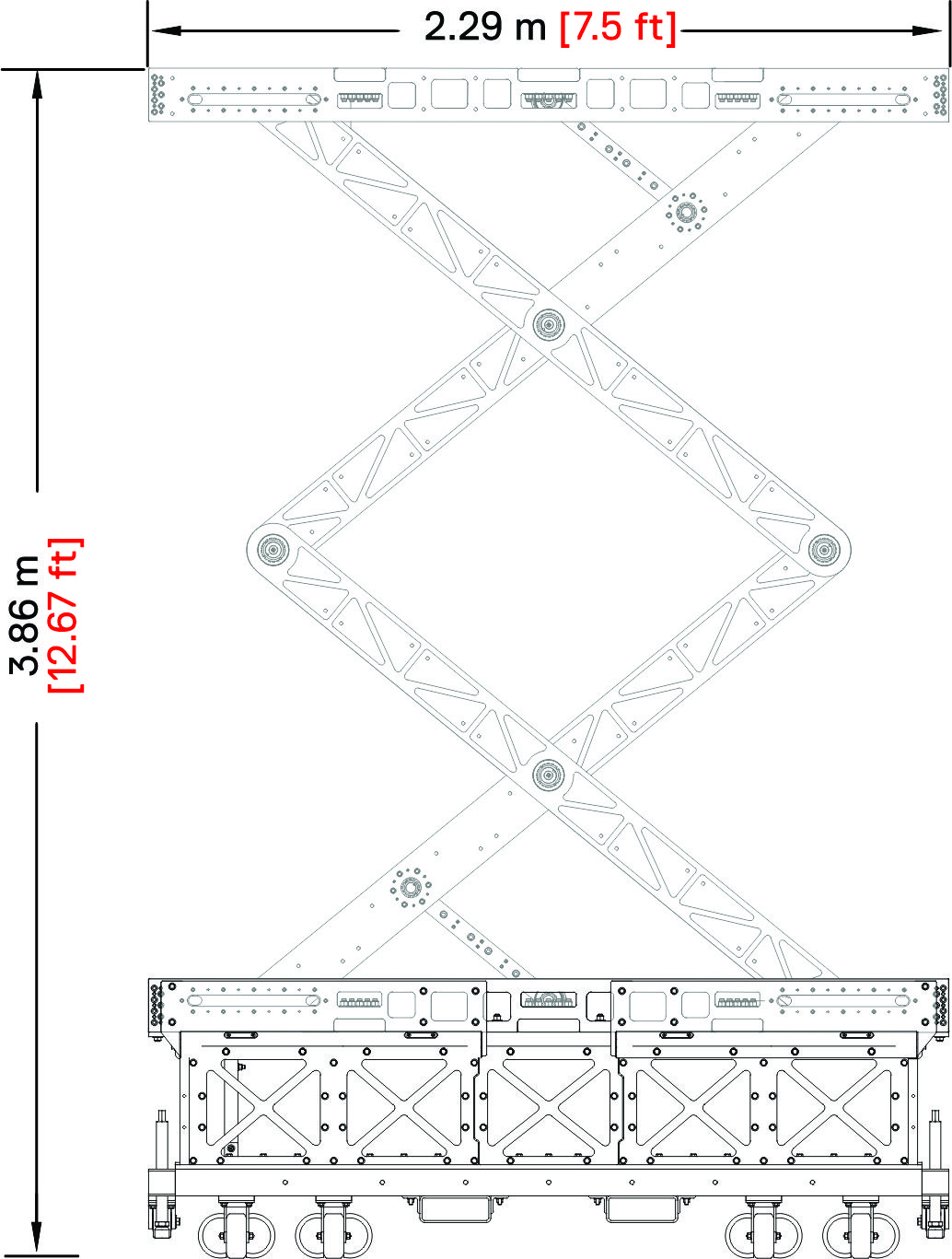

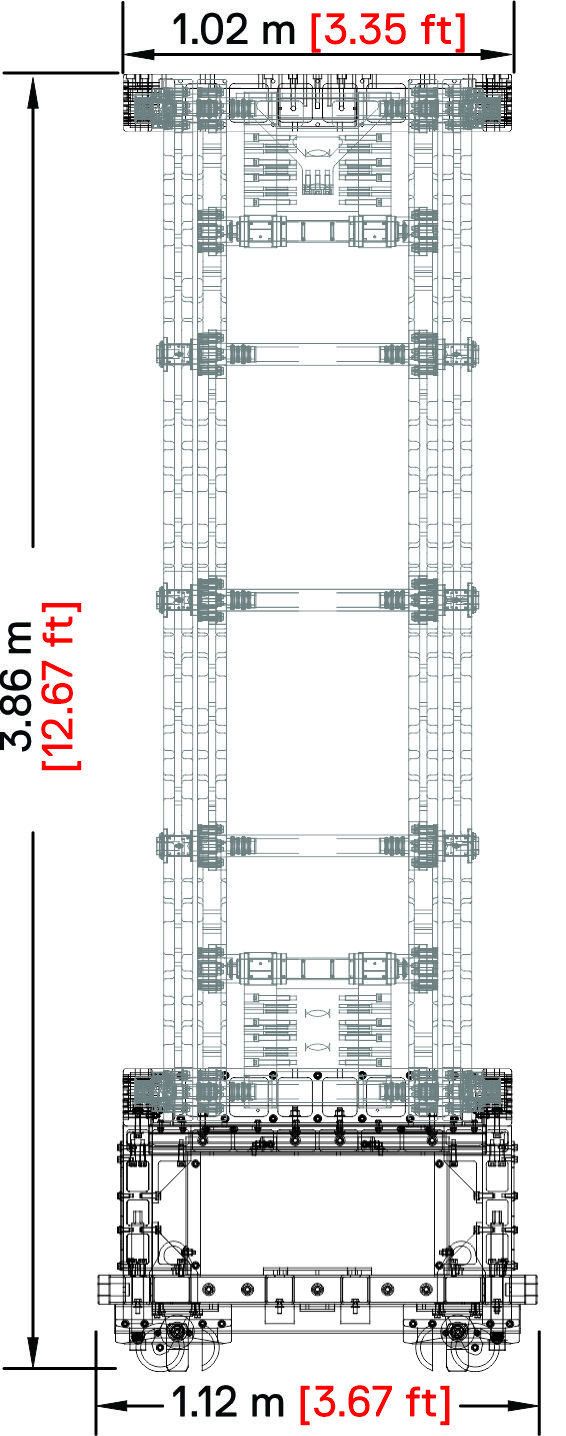

End View, Extended	Side View, Extended

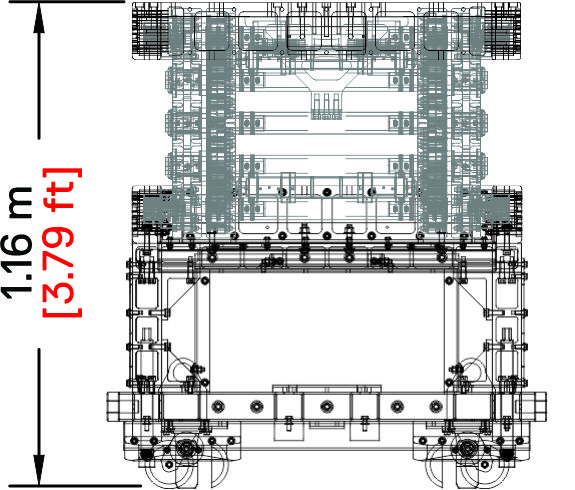

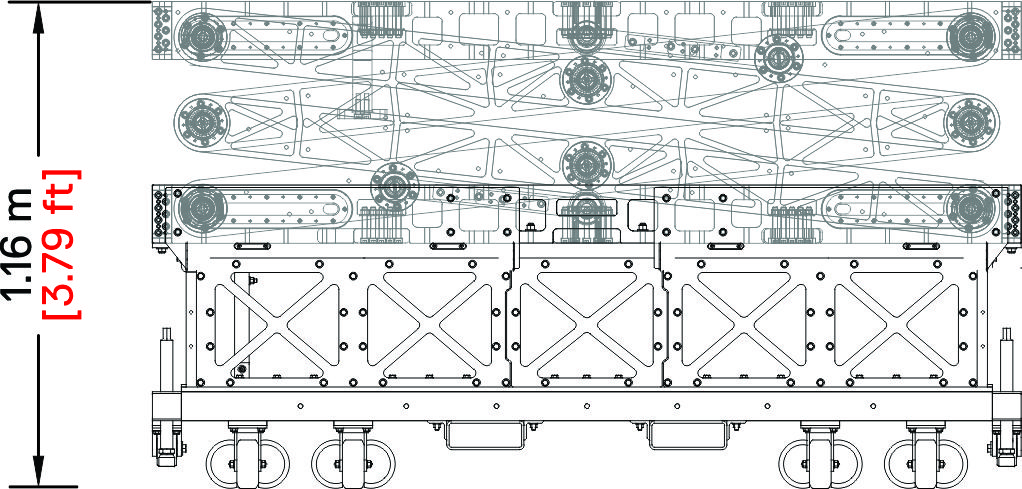

End View, Retracted	Side View, Retracted

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Revision date: 2025.01.02. Copyright 2023-2025 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 25052800K
