Key Features

TAIT Revolve delivers dynamic stage presence for performers and props
12ft diameter
Maximum speed 4 RPM
Compatible with TAIT Mag Deck system
Integrates with TAIT Navigator and iQ systems

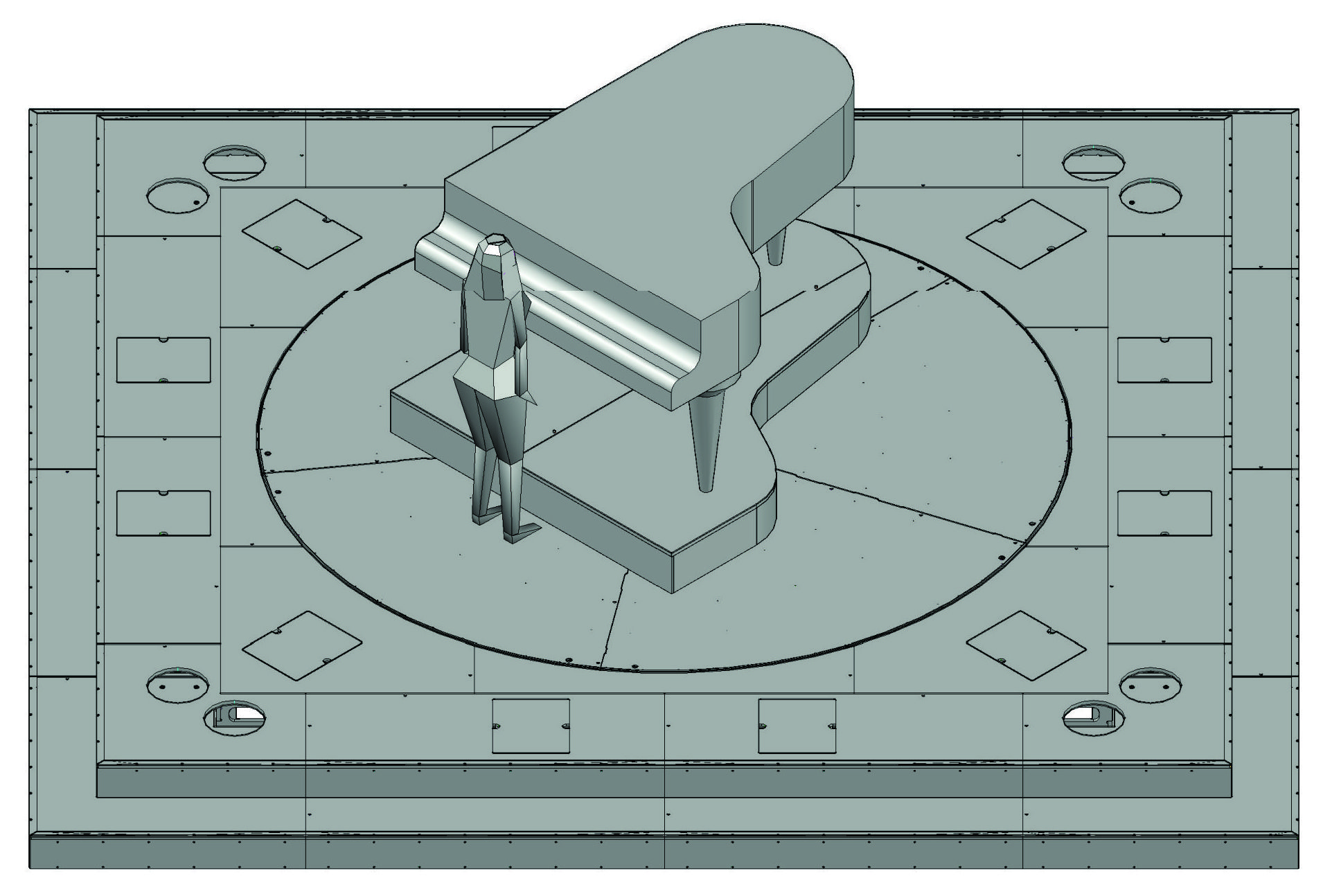

Piano revolve concept with surround

Description

The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. Diameter of this revolve is 12ft and can support performers, instruments, and/or props up to 907.2 kg (2000 lbs).

This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance. Control the revolve with the TAIT Navigator Automation System, ensuring versatile operation and precise control.

Specifications

Electrical
Voltage		208V 30A
Power		1.3 HP
Connections
Power		L21-30 In/Out
Motor/Secondary Encoder		LK37
Network		EtherCON In/Out
Control		Local, Pickle, TAIT Navigator
Mechanical
Maximum speed		4.0 RPM
Capacity		907.2 kg (2000.0 lbs)

Construction
Dimensions (W x H)		Ø3.66 m x 0.35 m (Ø12.0 ft x 1.16 ft)
Weight		690.8 kg (1523.0 lbs)

Dimensions

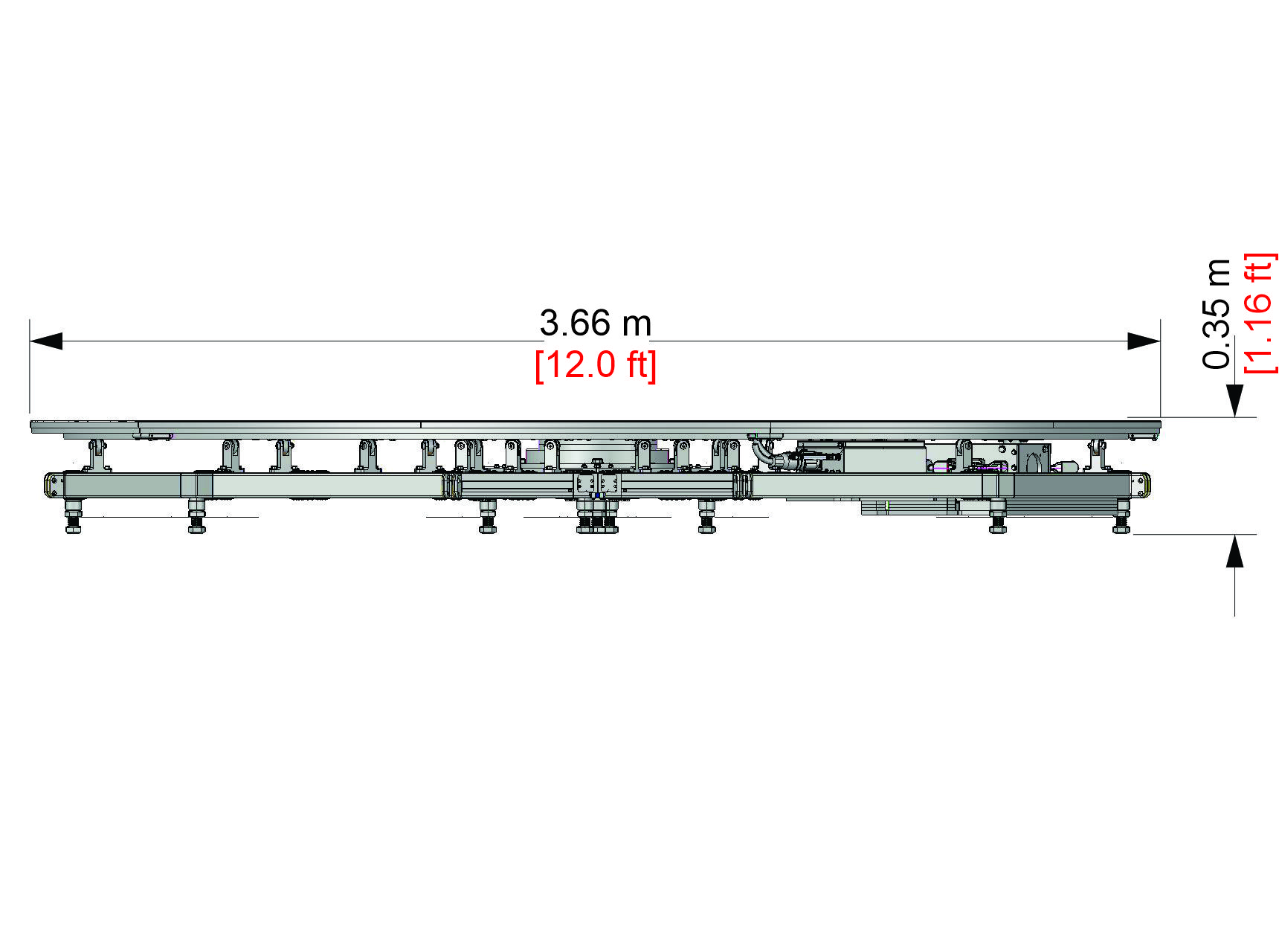

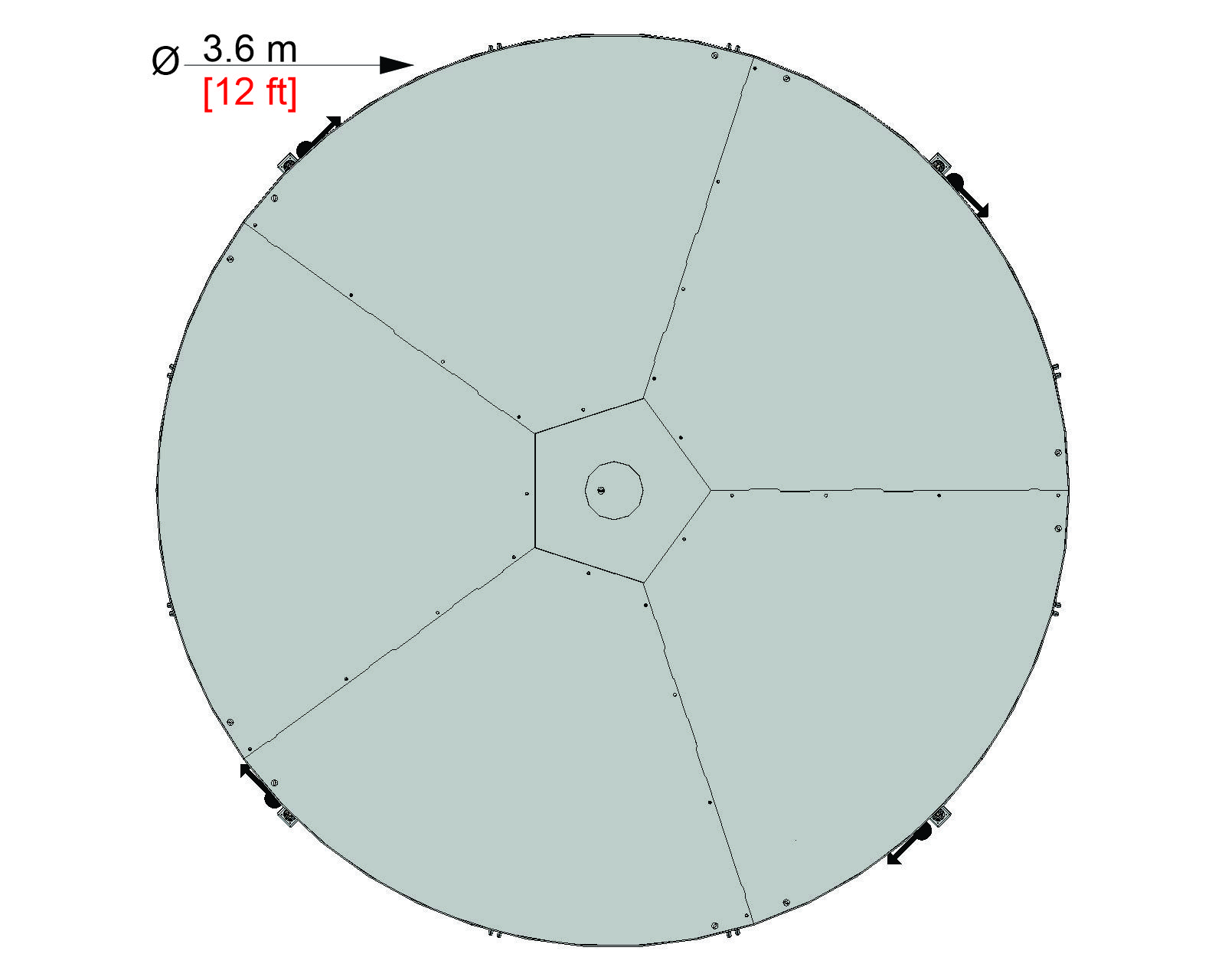

Side View	Top View

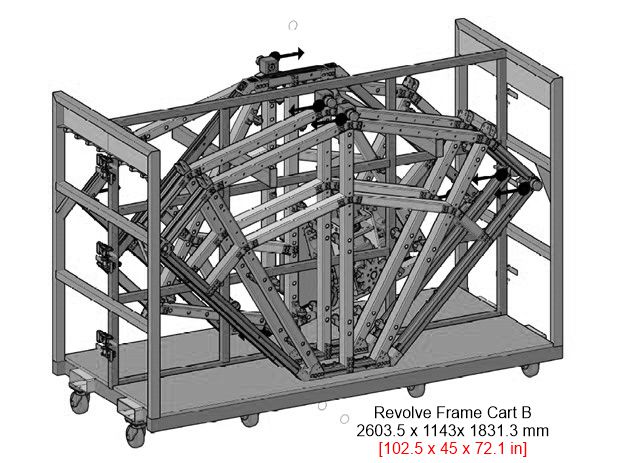

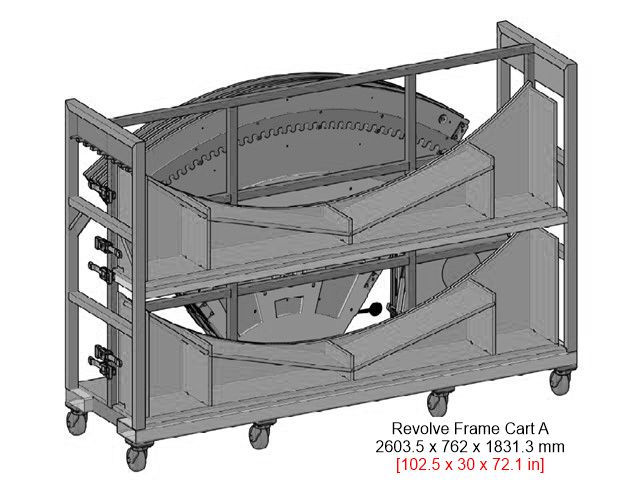

Packaging and Shipping


Shipping Weight	1723.6 kg (3800 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.05.08 Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 26102200K
