Key Features
|
|
Description
The TAIT Low Profile Zip Lift is a custom-built element used to elevate props or a performer above the stage. The lift rises at a maximum speed of 0.15 m/s (0.50 ft/s) to a height of 3.05 m (10.0 ft) with props or a performer onboard.
The Low Profile Zip Lift is fully-compatible with the TAIT Navigator Automation System, providing control of intricate and precise movements, while maintaining complete control over the load. The Low Profile Zip Lift integrates seamlessly with the TAIT Decking system and surrounds; adding versatility and flexibility to any stage production. Packaged into self-contained dolly for quick setup/teardown.
Specifications
| Connections | |
| Power | L22-20 |
| Control | Local, TAIT Navigator |
| Mechanical | |
| Maximum Speed | 0.15 m/s (0.50 fps) |
| Maximum Load | 114.4 kg (250.0 lbs) |
| Maximum Rise | 3.05 m (10.0 ft) |
| Construction | |
| Dimensions (L x W x H) | Retracted: 710.2 mm x 710.2 mm x 710.2 mm (60 in x 60 in x 27.9 in) Extended: 710.2 mm x 710.2 mm x 3048 mm (60 in x 60 in x 120.0 in) |
| Weight | 408.23 kg (900.0 lbs) |
| Accessories | |
| MAG Deck Surrounds | Center, Offset or Zone Lock in various sizes |
| Performer Platform | Ø 762 mm (30 in) or Ø 914.4 mm (36 in) |
| Performer Support Pole | |
Dimensions

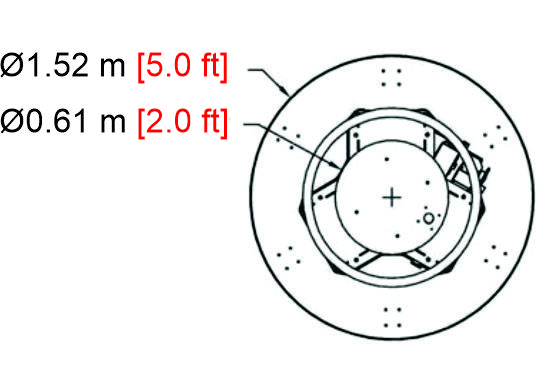

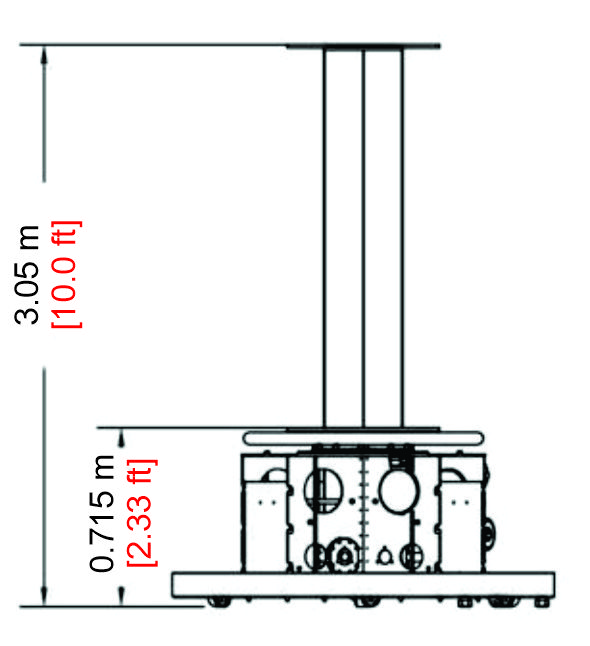

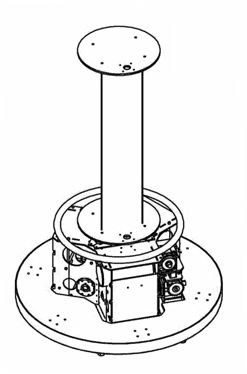

| Top View | Front View | ISO View |

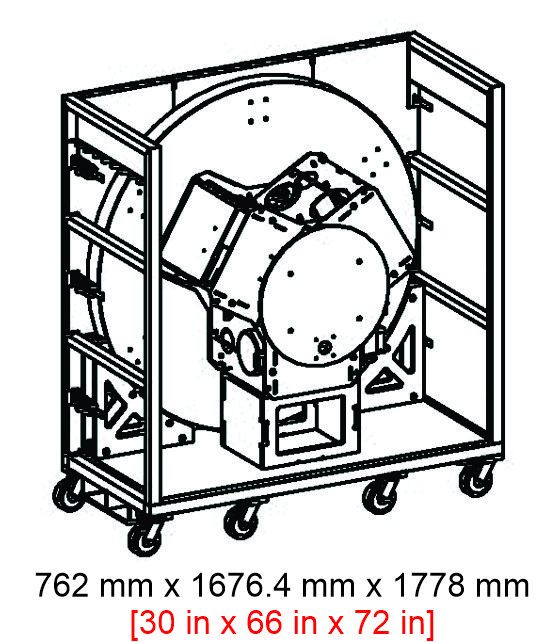

Packaging and Shipping
| Weight | 589.67 kg (1300 lbs) |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.01.16. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 24400009, 24400009-C
