Key Features
|
Description

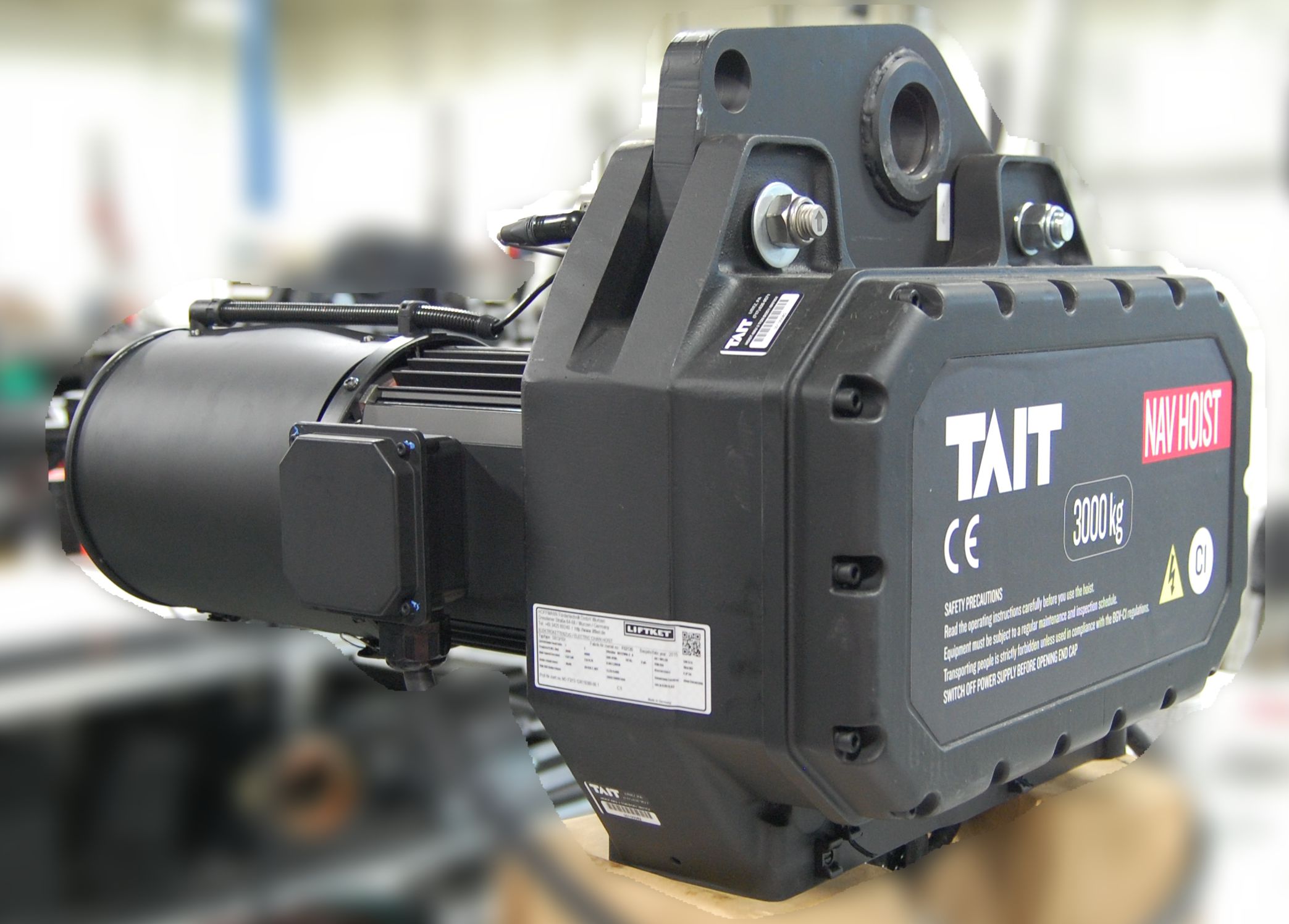

The 'Jumbo' 6000-kg Nav Hoist is a fully automated and integrated electric chain hoist that meets the highest level of hoist safety. The Jumbo Nav Hoist features variable speed operation, backup suspension points, and a five-pocket lift wheel for fast, quiet, and smooth lifting. Has dual independent brakes to achieve a minimum safety factor of 10:1 (BGV-C1 configurations only). Top and bottom limits as well as two ultimate limits to set the highest and lowest lift positions.
The top rigging connection features a fixed plate with a single hole suspension eye. Harting connector cable extensions interface with Standard Function Box (SFB) to break out power, network and encoder connections.
As part of the TAIT Navigator Automation Platform, this Nav Hoist can perform precise movements at variable speeds while maintaining complete control over the load.
Specifications
| Software Compatibility | |
| Control System | TAIT Navigator |
| Electrical | |
| Motor Phase | 3 Phase + PE |
| Duty Cycle | 25% |
| Rated Voltage | 308V, 50/60 Hz |
| Power | 2.6 kW |
| Current | Max: 9.7A |
| Brakes | Dual |
| Encoder | Incremental standard; SSI encoder available |
| Connections | |
| Motor and Low Power | Harting extension to SFB |
| Hoist Network/Encoder/Load Cell | Harting extension to SFB |
| SFB Power | LKH-30 |
| SFB Network | EtherCON |
| SFB Encoder | XLR8+2 |
| Mechanical | |
| BGV-D8 safety rated BGV-C1 safety rated |
Capacity: 6000 kg (13,227.7 lbs) Capacity: 3000 kg (6,613.9 lbs) |
| Max Speed | 0.09 m/s (0.3 ft/s) |
| Length of Lift, standard | 22.86 m (75 ft) |
| Environmental | |
| Operating Temp | 40 C (104 F) |
| Construction | |
| Dimensions (L x W x H) | 715.96 mm x 378.57 mm x 309.36 mm (28.8 in x 22.0 in x 18.0 in) |
| Weight | 113.4 kg (250.0 lbs) excluding chain |
| Certifications | |
| Safety | Conforms to UL 508. Complies with CE standards. Certified to CSA 22.2 No. 14 |
| Accessories | |
| Chain | Type: RUD EN 818-7 DAT. Size: 16 x 45 mm (0.63 in x 1.77 in) Weight: 5.7 kg/m (1.63 lbs/ft) |
| Extras | Truss grapples, chain sliders, control pendant |
Dimensions

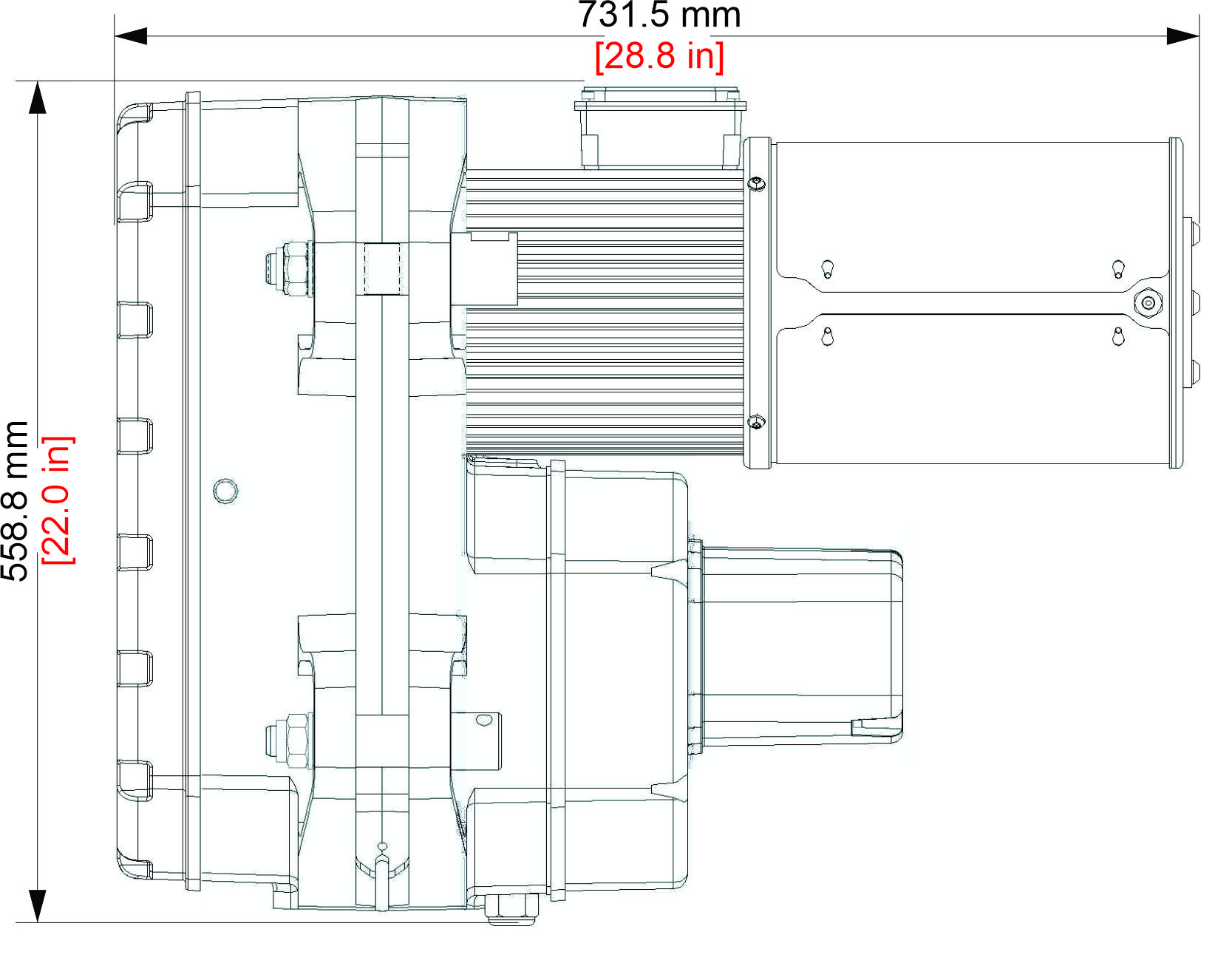

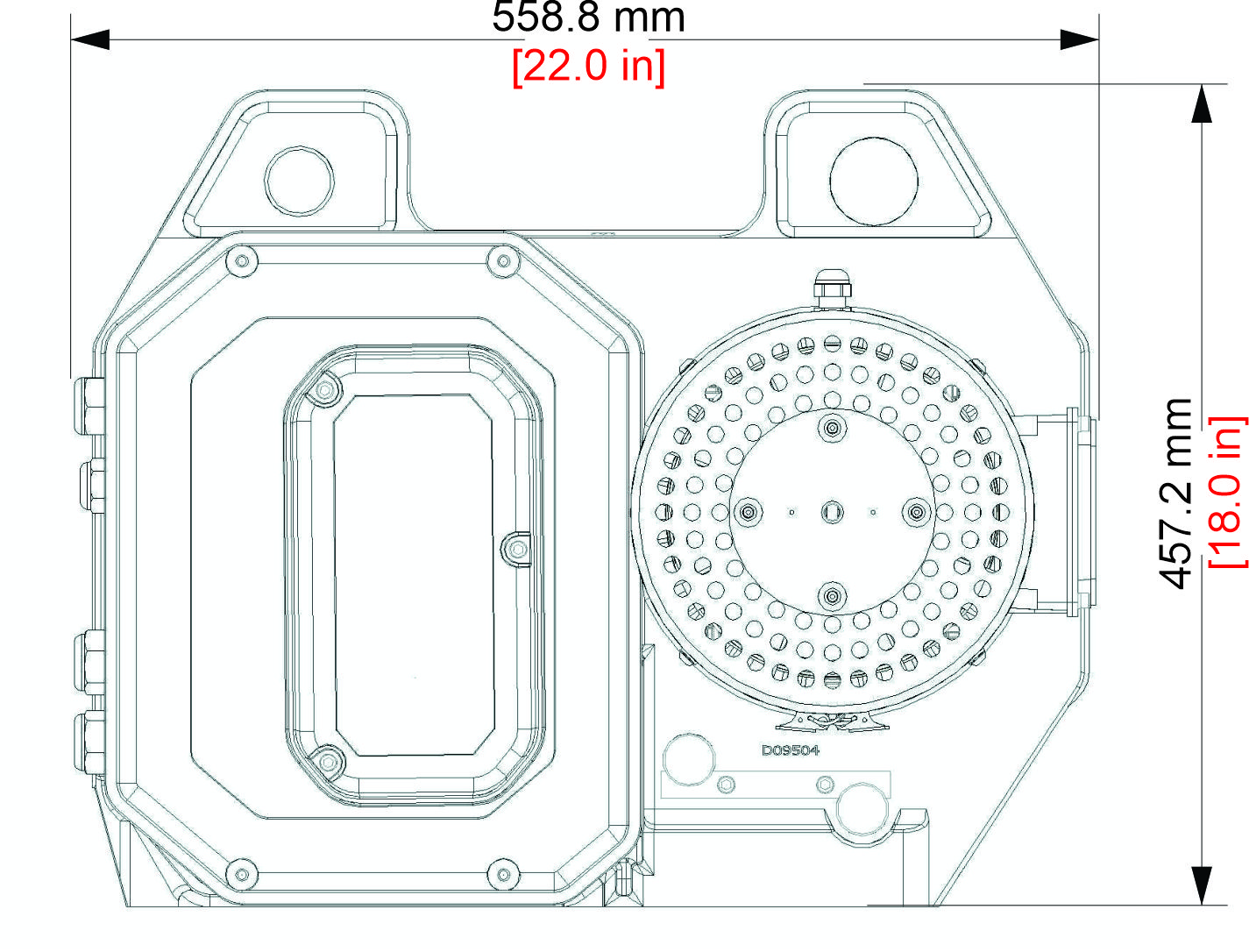

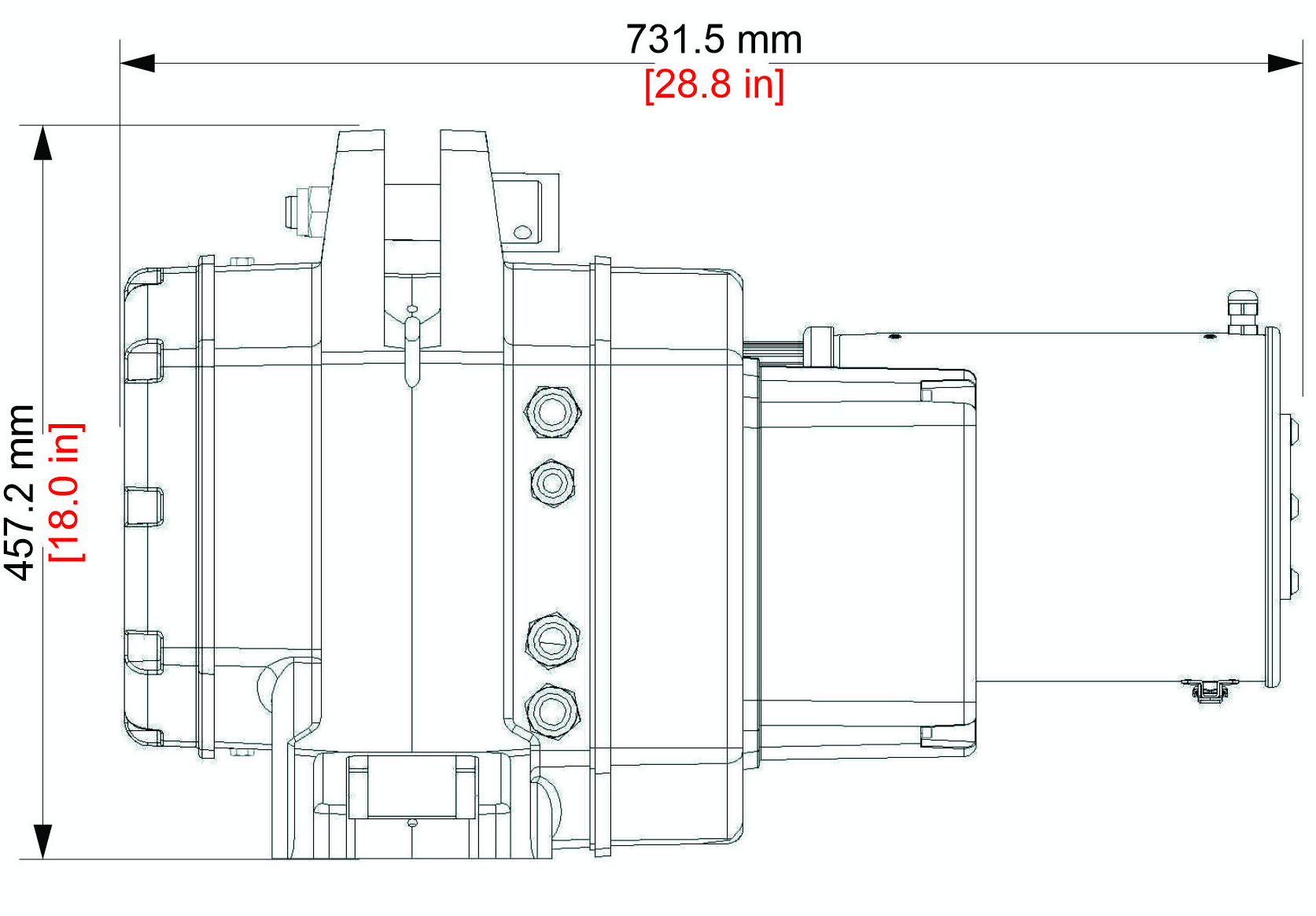

| Front View | Top View | Right Side View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.05.21 Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
