Key Features
|
Description

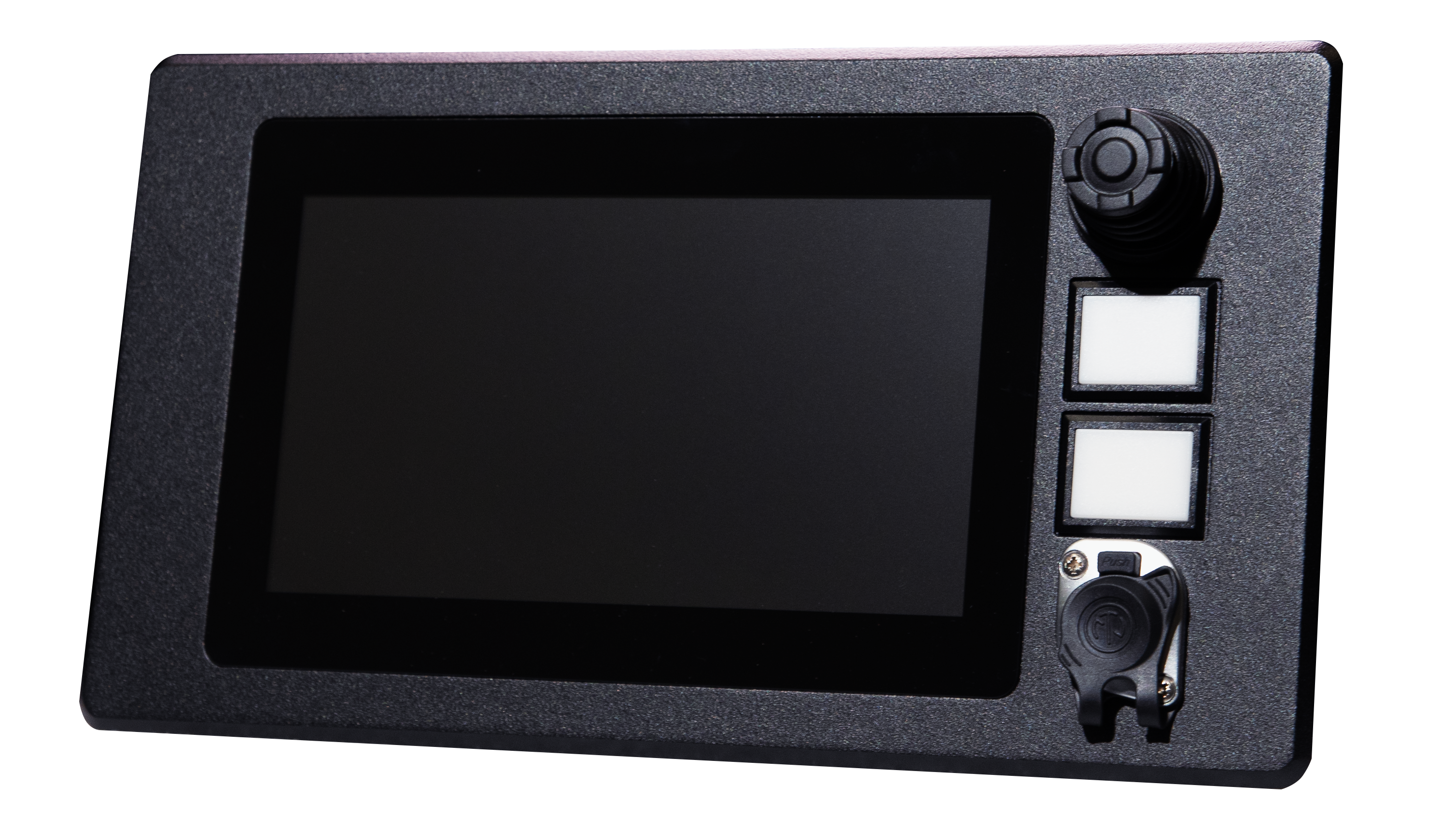

The TAIT Navigator Infinity Panel is a custom node and user interface that uses an Intel® Atom processor with integrated memory and storage. It is used for controlling the movement of devices on the TAIT Navigator™ network.
It features an illuminated touchscreen display, push buttons, joystick with enable switch, Ethernet switch, Power over Ethernet supply, PLC inputs and outputs, and fan & temperature control. This large number of features and connection options reduces the number of components and equipment that are normally required for a typical installation.
The TAIT Navigator Infinity Panel is designed to be used as a standalone Navigator node and user interface. The dimensions allow it to fit into an industry-standard 4U 19" rack or panel if required. The attachment slots and mounting brackets allow it to be secured to a wall or other suitable location as decided by the end-user.
All cable connections are located on the bottom of the device and are recessed to allow enough space for connectors and cable bending radii when install to a cabinet or rack, as well as to the front panel of the TAIT Pulse Drive.
Specifications
| Electrical | |
| Power supply | 24 V DC, optional Power of Ethernet supply (802.3bt) and output. |
| Display | 7" diagonal, 1024 x 600 pixels, 800 cd/m2 captive touchscreen External display via Display Port connection Intel® HD Graphics 500 controller |
| Controls | Single-axis hall-effect joystick with Enable button, two-axis version optional Illuminated Go and Stop push buttons |
| Processor | Intel® Atom x5-E3930, 1.80 GHz (Burst) 1.13 GHz Clock, Dual core, 2MB L2 cache Intel® Atom x5- E3940 and x5- E3950 available as options |
| RAM | 2 GB (standard); up to 8 GB optional |
| Storage | Up to 32 GB available |
| Construction | |
| Enclosure | Front panel: aluminium Rear panel: steel Black textured paint finish |
| Dimensions | 270 mm x 150 mm x 82 mm (10.6 in x 5.9 in x 3.2 in) (W x H x D) 4U height for installation to 19" rack |
| Weight | 1.45 kg (2.2 lbs) |
| Characteristics | |
| Ingress Protection rating | IP65 only applies if waterproof cover on the front panel RJ45 connector is closed when not in use |
| Temperature range | Operating: 0°C and 50°C (32°F and 122°F) Storage: -20°C and 80°C (-4°F and 176°F) |
| Compliance | SIL 3, EN17206 UC1 to UC6 |

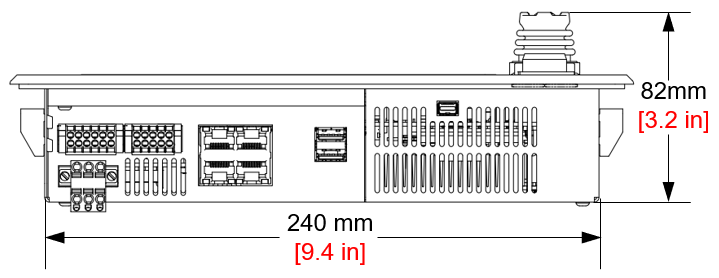

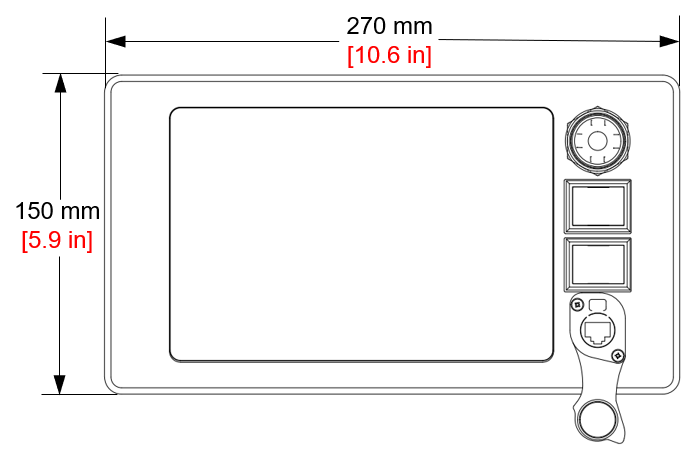

Dimensions
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2018.10.16. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.
