Key Features
|
Description

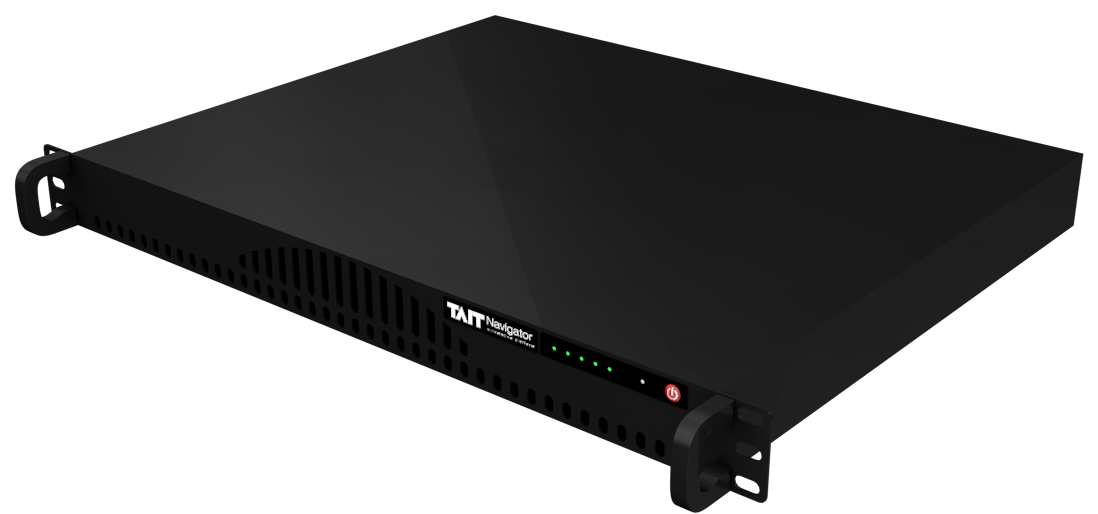

TAIT's Rackmount GUI allows for interaction between the user and TAIT’s Navigator System. The GUI allows the user to see all aspects of the system from axis status, to timecode clocks, to editing and running cues, to troubleshooting, to system setup and configuration.
The Rackmount GUI has a compact size and is ideal for installations into 19" IT or mobile racks.
TAIT's Rackmount GUI is typically operated with single or multiple displays, as well as a keyboard and mouse. It provides several tools that can be used for diagnostics and troubleshooting of subsystems controlled by the Navigator System. A user's view can be customized based on preference or need and can be actively switched between multiple views when required.
Specifications
| Electrical | |
| Rated Voltage | 100-240 VAC, 50-60Hz |
| Maximum Power | 200/260W |
| Connections | |
| Power | IEC |
| Network and peripheral | USB, x2 Ethernet, x4 mini display port, x2 PS/2, serial I/O |
| Environmental | |
| Operating Temperature | 10° C to 35° C (50° F to 95° F), 50% RH |
| Construction | |
| Dimensions (L x W x H) | 489 mm x 356 mm x 43 mm (19.25 in. x 14.0 in x 1.7 in) |
| Weight | 5.56 kg (12.25 lbs) |
| Mounting | Rack mount (1U) |
| Options | |
| DVD-RW Drive | |
Dimensions

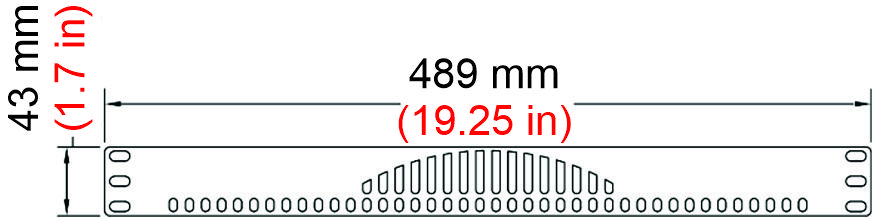

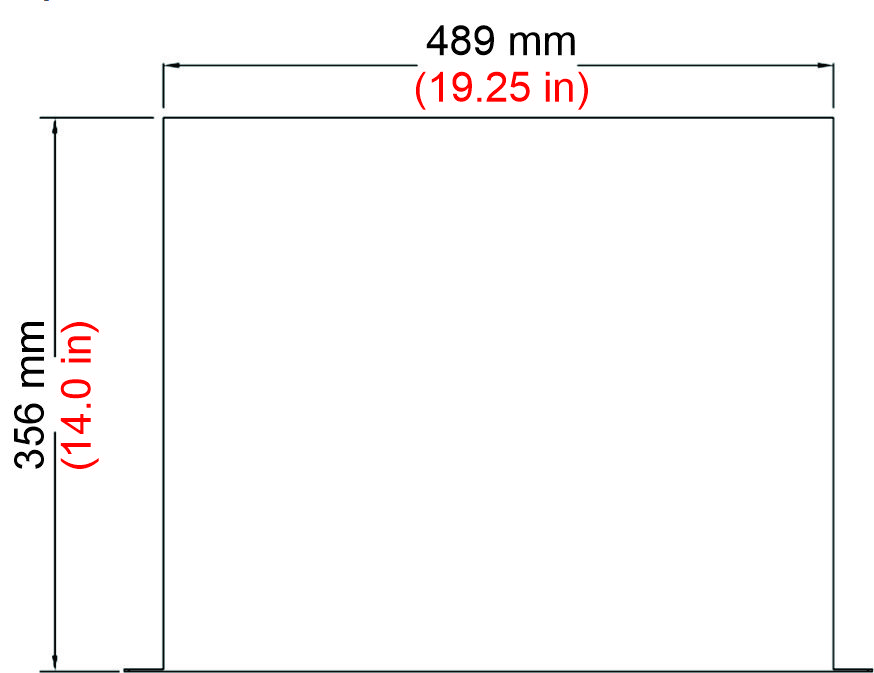

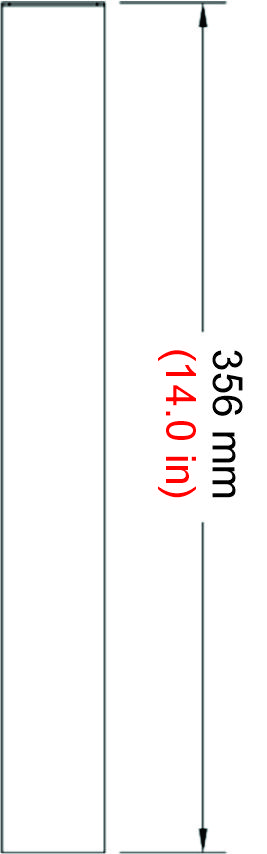

| Front View | Side View | Top View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.04.03. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 19813055
