Key Features
|
Description
TAIT Mobilator PT units provide linear motion to stage wagons and set pieces. They have pneumatically driven brakes and drive system that allows free movement of the pieces. One Mobilator can move 3401.9 kg (7500.0 lbs); while multiple Mobilators can integrate with large stage elements to create a visually stunning moving application. They can be paired with TAIT smart air compressors and encoders to be controlled by TAIT Navigator or operated locally. The Mobilator can be integrated with our Mag Deck system.
Specifications
| Electrical | |
| Motor | 180 VDC |
| Power | 0.5 HP |
| Connections | |
| Power | L21-30 Cable, 208V 3 Phase |
| Control | Local, TAIT Navigator, Pickle Pneumatic line for brakes, drive engage |
| Mechanical | |
| Maximum Speed | 0.59 m/s (1.95 ft/s) |
| Load Capacity | 3401.9 kg (7500.0 lbs) |
| Construction | |
| Dimensions (L x W x H) | 91 mm x 19 mm x 23 mm (36 in x 8 in x 9 in) |
| Weight | 45.36 kg (100 lbs) |
Dimensions
| Top View | Front View |

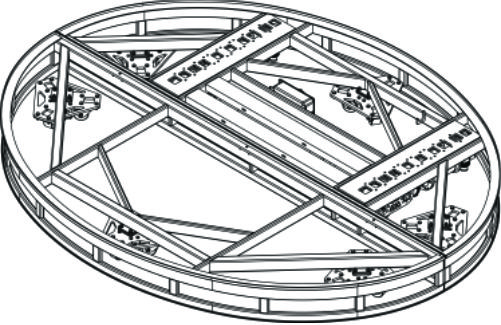

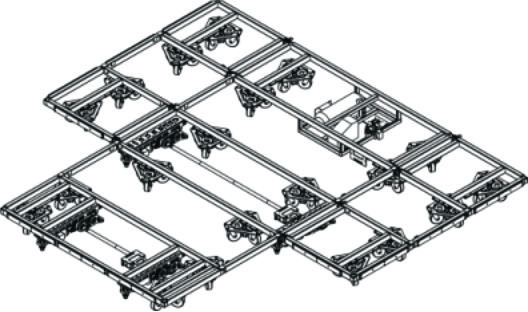

Configuration Examples
|
|
Custom Deck |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issued date: 2024.06.13. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 23680130, 23680135
