Key Features
|
Description

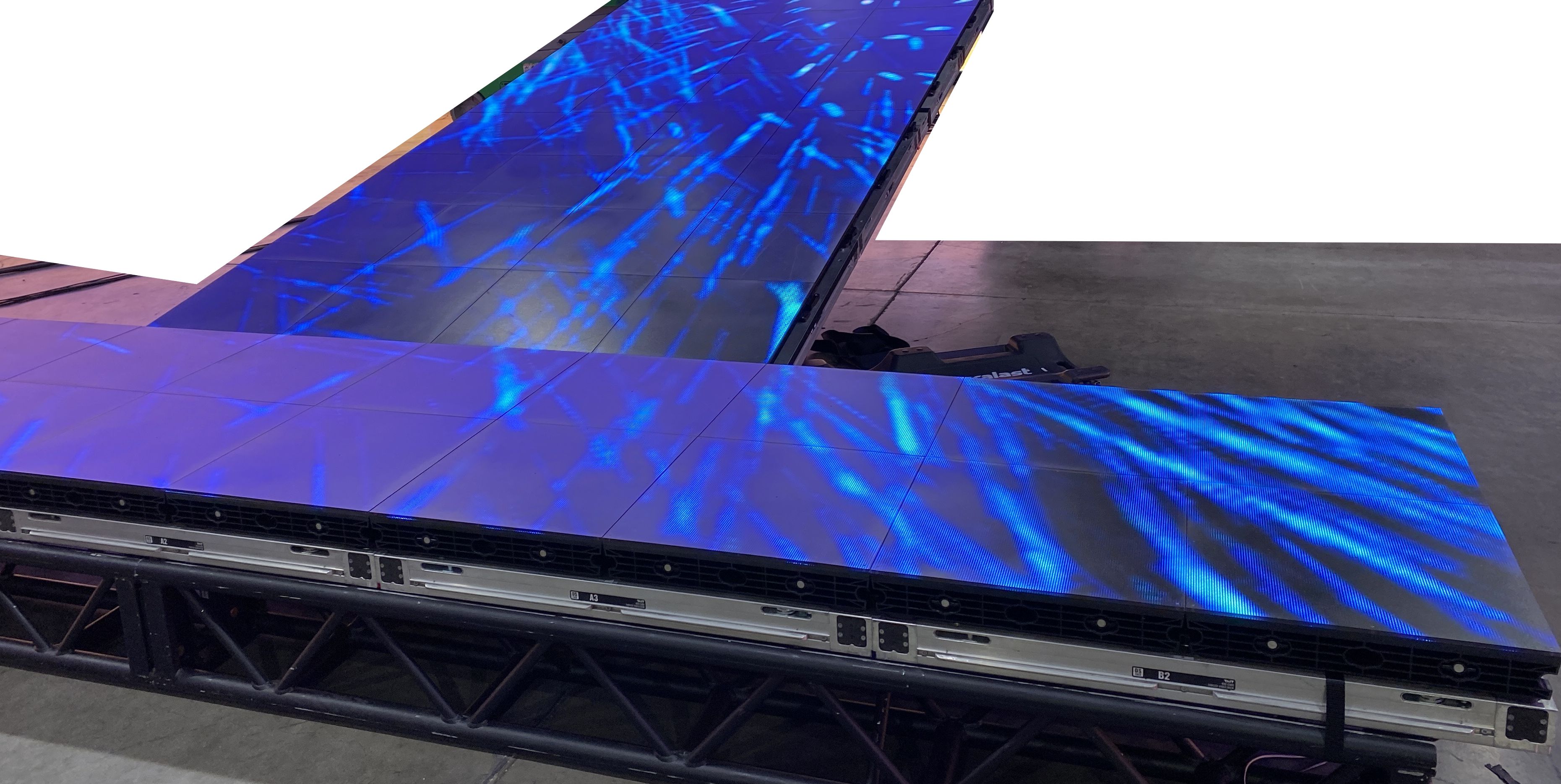

TAIT’s LED Locking Mag Deck System allows for customized visual staging effects. The decks are integrated with 500 mm x 500 mm LED tiles with a custom widget to integrate a variety of video products. TAIT’s standard LED mag decks measure 1000 x 1000 mm (39.37 x 39.37 in) with locking fluffer receivers. Other custom sizing solutions available.
The LED Mag Deck can be incorporated into a complete TAIT Mag Deck system for all stage designs. Our decking is easy to assemble, package, and tear down. The custom deck dollies hold fourteen (14) 1000 mm x 1000 mm decks (with LED).
Specifications
Mechanical | |
Dead Load | Decking self weight is 5psf |
Live Load | Allowable Live load varies based on configuration |
Construction | |
Standard Deck Dimensions (L x W) |
1000 mm x 1000 mm (39.37 in x 39.37 in) |
Accessories | |
Extras | Handrail for performer safety, stairs, adjustable height legs |
Dimensions

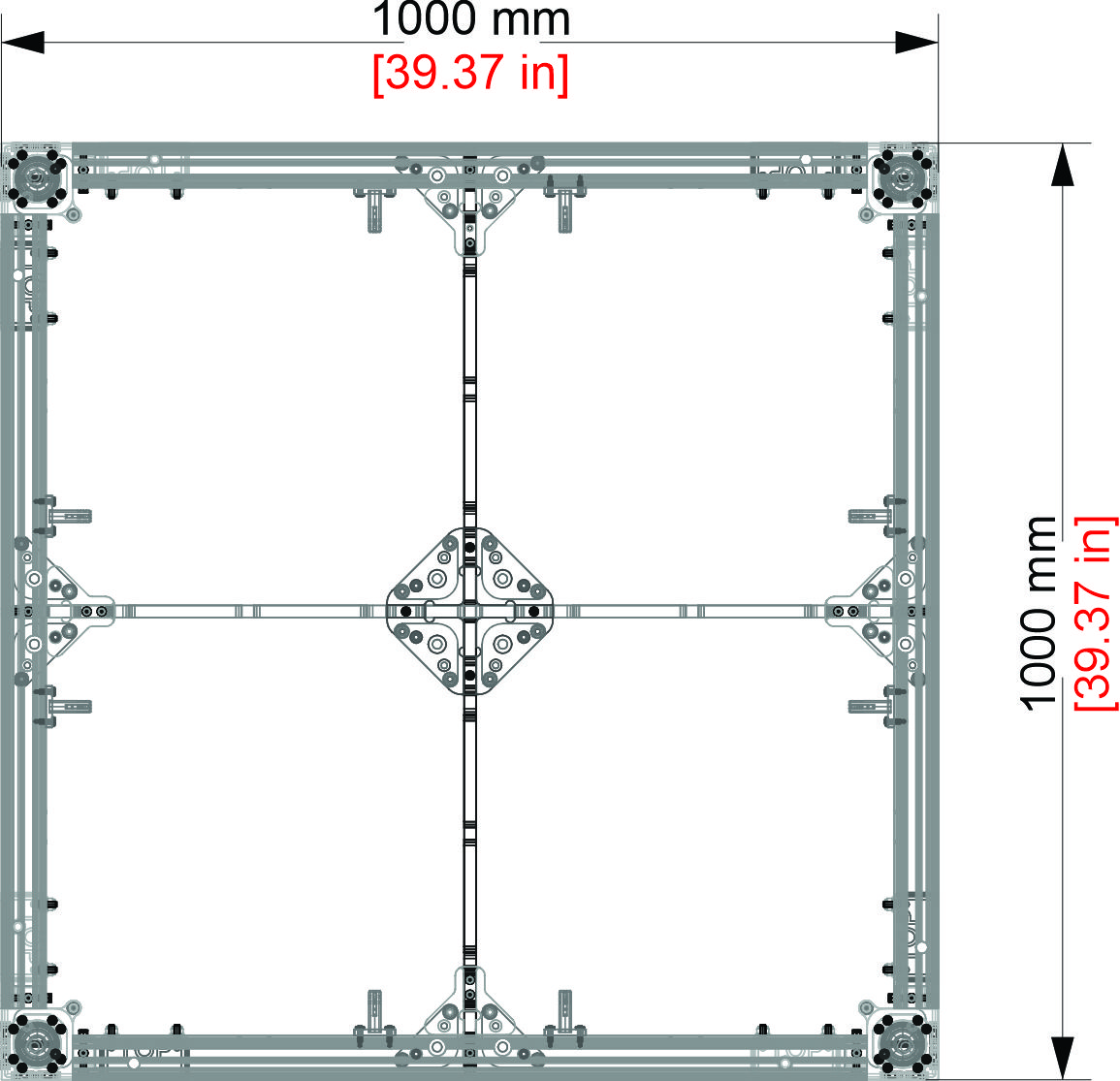

LED Tiles removed for clarity - Top View | Side View | |
Configurations

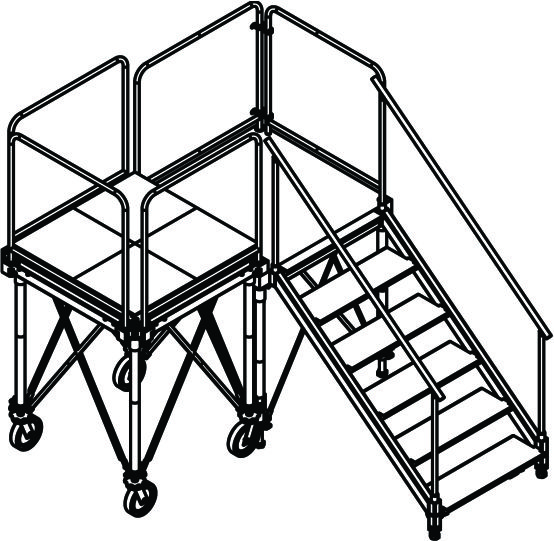

optional handrails and stairs | Large stage format example | |
Packaging and Shipping

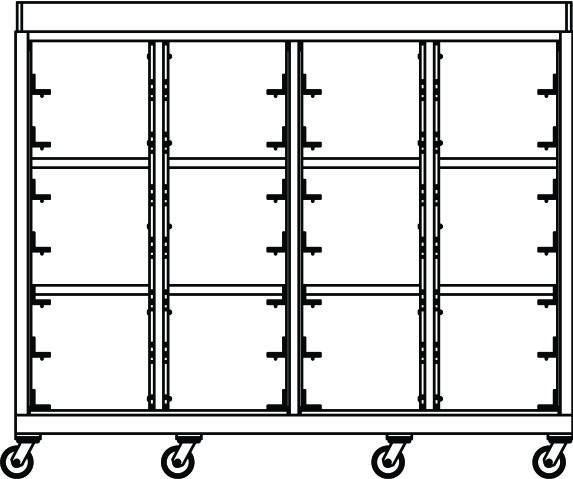

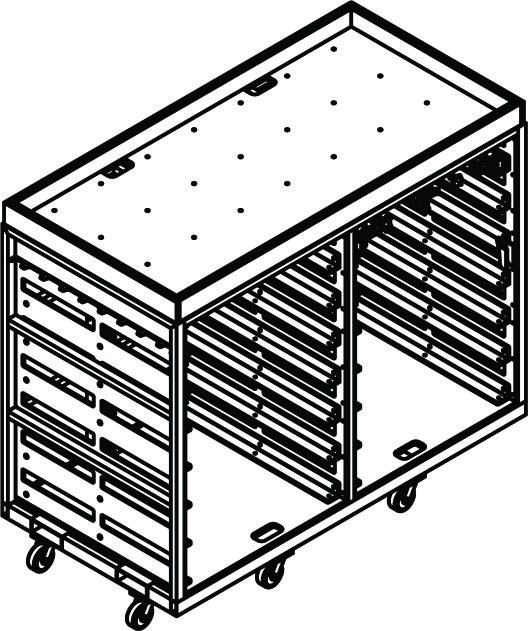

Dolly ISO View | Dolly Front View |
|
|
Number of units per Dolly | 14 |
Dolly Dimensions (L x W x H) | 2.29 m x 1.14 m x 1.93 m (7.5 ft x 3.75 ft x 6.33 ft) |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.06.12. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 403005xx
