Kinesys Array PD-ES Mini Spec Sheet

Daniel Proctor
  • Updated

Key Features

  • Smaller version of the Array PD-ES with many of the same features.
  • Power distribution and emergency stop system
  • 2 x 32A individually switched three-phase CEE Form outlets
  • Adjustable RCD
  • Integrated emergency stop button




Description

The Array PD-ES Mini provides 32 A of emergency stop switch power through two 32 A three-phase CEE Form outlets. The three-phase outlets are protected with an adjustable RCD. A single-phase auxiliary outlet is provided. The unit includes Transform 485 functionality providing an interface between software and the Kinesys Elevation controller.

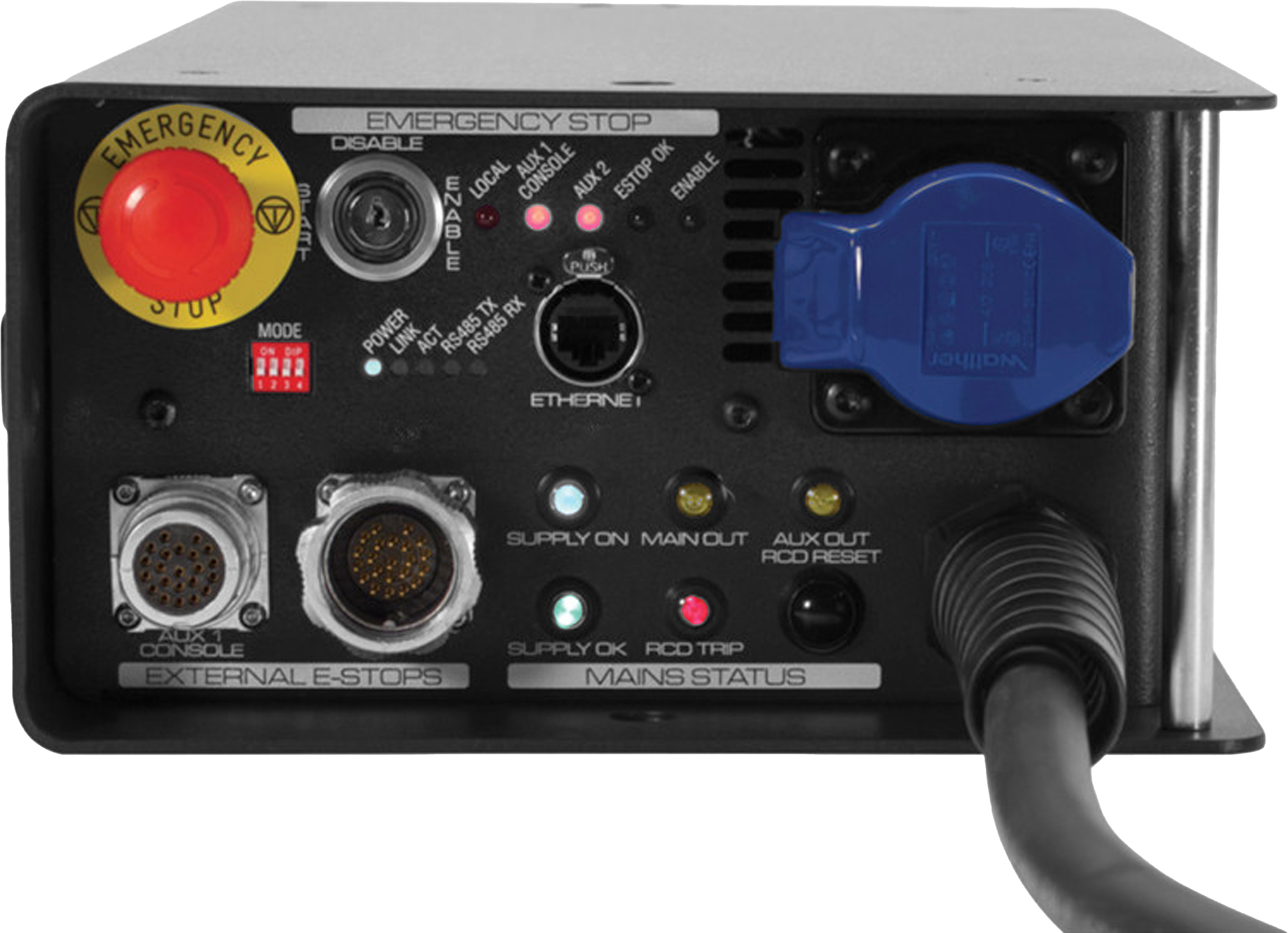

The front panel features an integrated emergency stop button, status indicators, individual MCBs for each CEE Form outlet and an adjustable RCD. ‘Power Present’ status indicators are provided on the front and back panels.

Multiple fixings for hooks or half couplers allow for a variety of mounting positions. The unit is not rack mountable like the larger Array PD-ES.

Specifications

Electrical
Mains in 3-Phase + Neutral + Earth, 50-60 Hz, via Powerlock or CamLok E1016 single-pole connectors with through outlets
Power output 2 x 32 A CEE Form type IEC 60309 5-pole individually switched connectors with a maximum output of 32 A collectively
Auxiliary power options 1 x 16A CEE Form Blue
Data connections 1 x EtherCON Ethernet
2 x RS485
1 x Male 22 Pin Socapex E-Stop
1 x Female 22 Pin Socapex E-Stop
Construction
Dimensions, excluding buttons and handles (L x H x W) 424 mm x 241 mm x 126 mm (16.7 in x 9.5 in x 5.0 in)
Total weight 9.1 kg (20 lbs)
Characteristics
Temperature Operating: 5 to 40ºC (41 to 104ºF)
Storage: -20 to 80 ºC (-4 to 175 ºF)
Ingress Protection IP40
Compliance EN62061, EN ISO 13849



Dimensions

Front View Side View
Array PD-ES Mini front dims.PNG Array PD-ES Mini side dims.PNG



Still Have Questions?

If you have any questions, please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.09.06. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
