Key Features
|
Description
The Array 485 is a 1 in / 8 out RS485 distribution unit for use with the Kinesys Elevation controller.

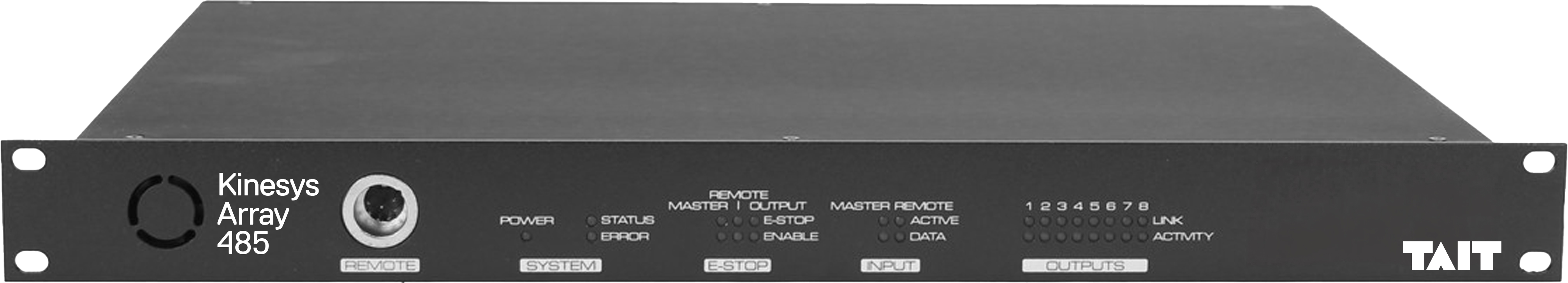

The rear panel features eight XLR7 data connections for outputting RS485 data. The front panel offers link, data and emergency stop status indicators as well as a feature for connecting the Kinesys Rigger for local hoist control.
Specifications
| Electrical | ||
| Mains in | 1-phase + Neutral + Earth, 90-240V, 50-60 Hz | |
| Front Panel connections | 1 x XLR7 Data In (for Rigger connection only) | |
| Rear Panel connections | 8 x XLR7 Data Out 1 x XLR7 Data In |
|
| Construction | ||
| Dimensions (L x H x W) |
483 mm x 45 mm x 305 mm (19 in x 1.75 in x 12 in) 1U 19" rack mountable |
|
| Total weight | 35.2 kg (77.6 lbs) | |
| Enclosure | Case – aluminium, black anodised, 1.5 mm (1.8 mm at rear panel) Front panel – aluminium, 2.8 mm, RAL5011 textured paint |
|
| Characteristics | ||
| Temperature | Operating: 0 to 40ºC (32 to 104ºF) Storage: -20 to 80 ºC (-4 to 175 ºF) |
|
| Ingress Protection | IP30 | |
| Compliance | EN62061, EN ISO 13849 | |
| Accessories provided | PowerCON True1 2 m power cable, socket to bare ends | |
Dimensions

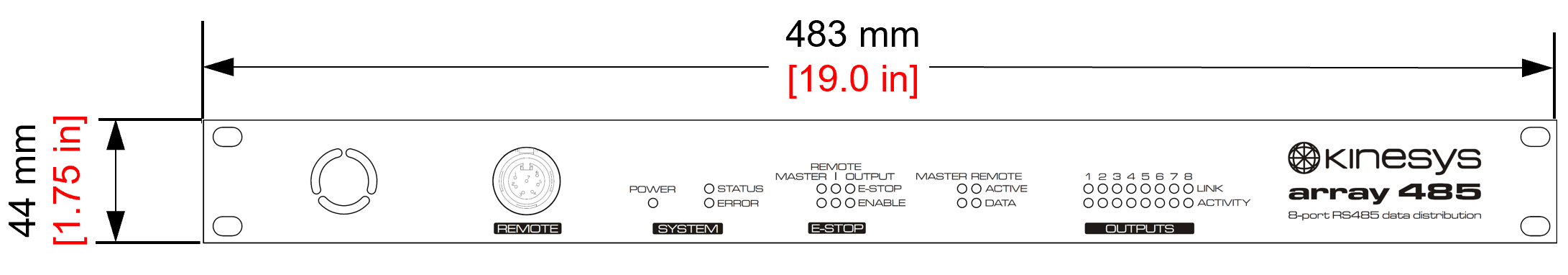

| Front View |

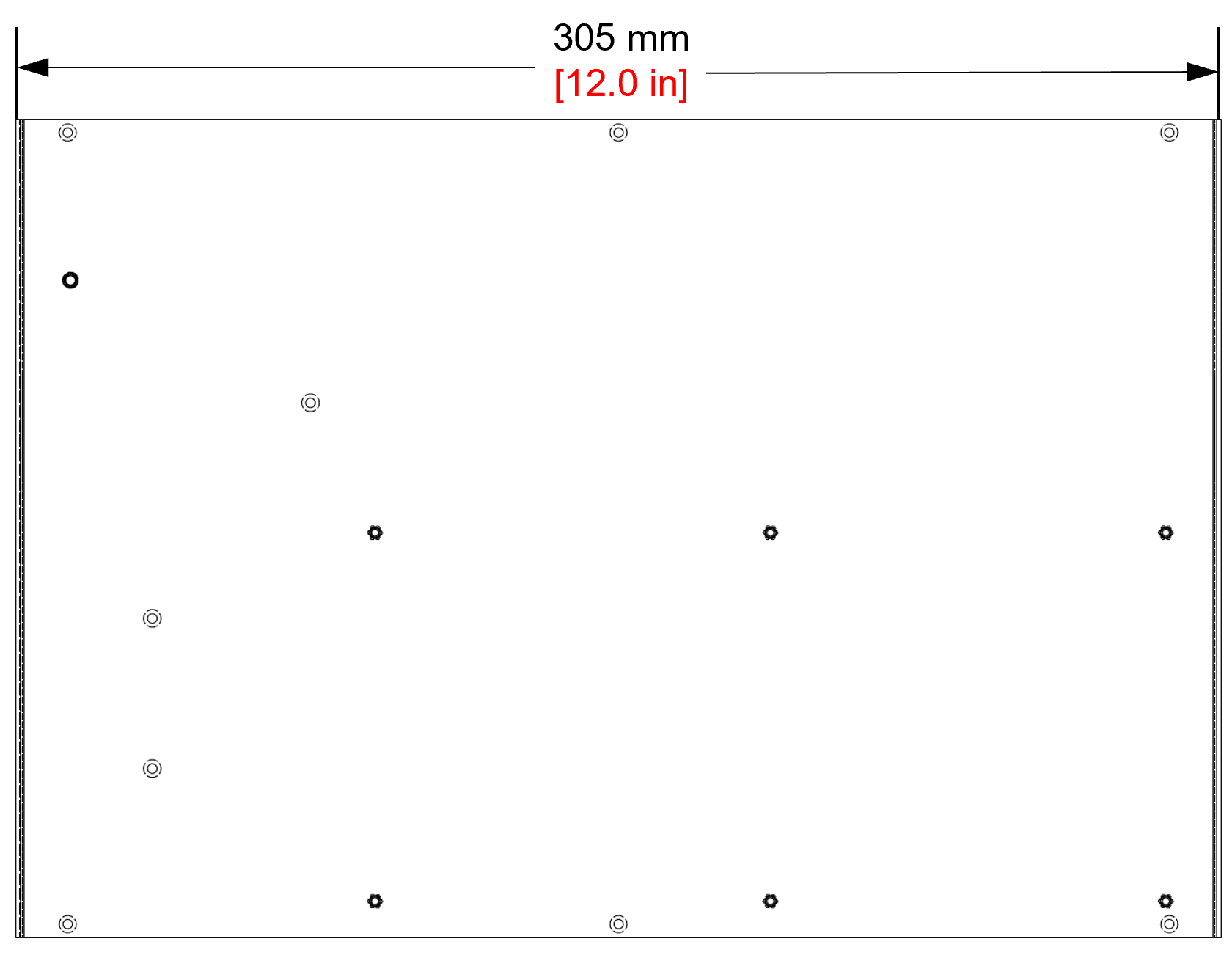

| Top View |
Still Have Questions?
If you have any questions, please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.11.01. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
