Key Features
|
Description
The Array IP8 is a rugged 8-port 10/100 Ethernet switch designed to work with Kinesys products.
EtherCON connectors on the rear panel provide increased protection for 8 x RJ45 connections. Standard RJ45 connectors can also be plugged into these outputs.

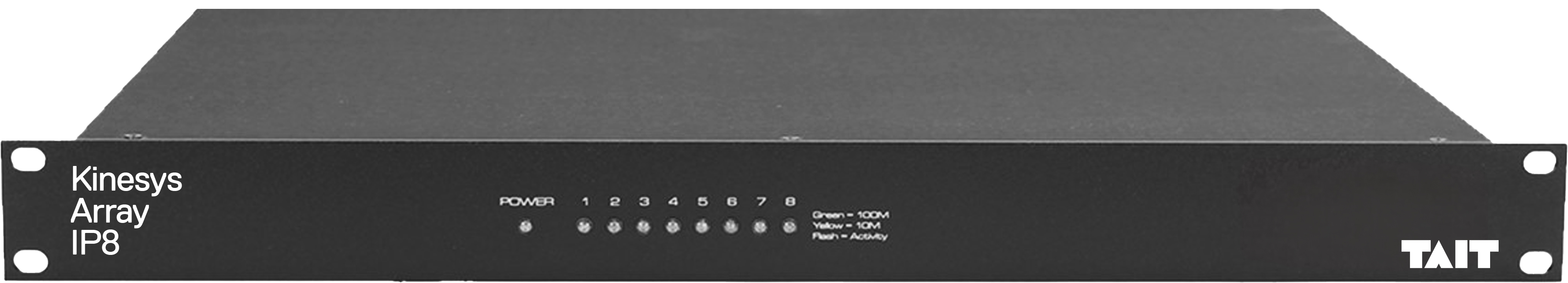

LEDs on the front panel indicate if power is present, provide a channel by channel breakdown of activity, and whether each channel is operating at 10 or 100 BASE-T.
Specifications
| Electrical | ||
| Mains in | 1 phase + Neutral + Earth 50-60 Hz, 85-264V | |
| Front Panel connections | None | |
| Rear Panel connections | 8 x EtherCON RJ45 | |
| Construction | ||
| Dimensions (L x H x W) |
483 mm x 45 mm x 305 mm (19 in x 1.75 in x 12 in) 1U 19" rack mountable |
|
| Total weight | 2.0 kg (4.4 lbs) | |
| Enclosure | Case – aluminium, black anodised, 1.5 mm (1.8 mm at rear panel) Front panel – aluminium, 2.8 mm, RAL5011 textured paint |
|
| Characteristics | ||
| Temperature | Operating: 0 to 40ºC (32 to 104ºF) Storage: -20 to 80 ºC (-4 to 175 ºF) |
|
| Ingress Protection | IP30 | |
| Compliance | EN62061, EN ISO 13849 | |
| Accessories provided | PowerCON True1 2 m power cable, socket to bare ends | |
Dimensions
| Rear View |

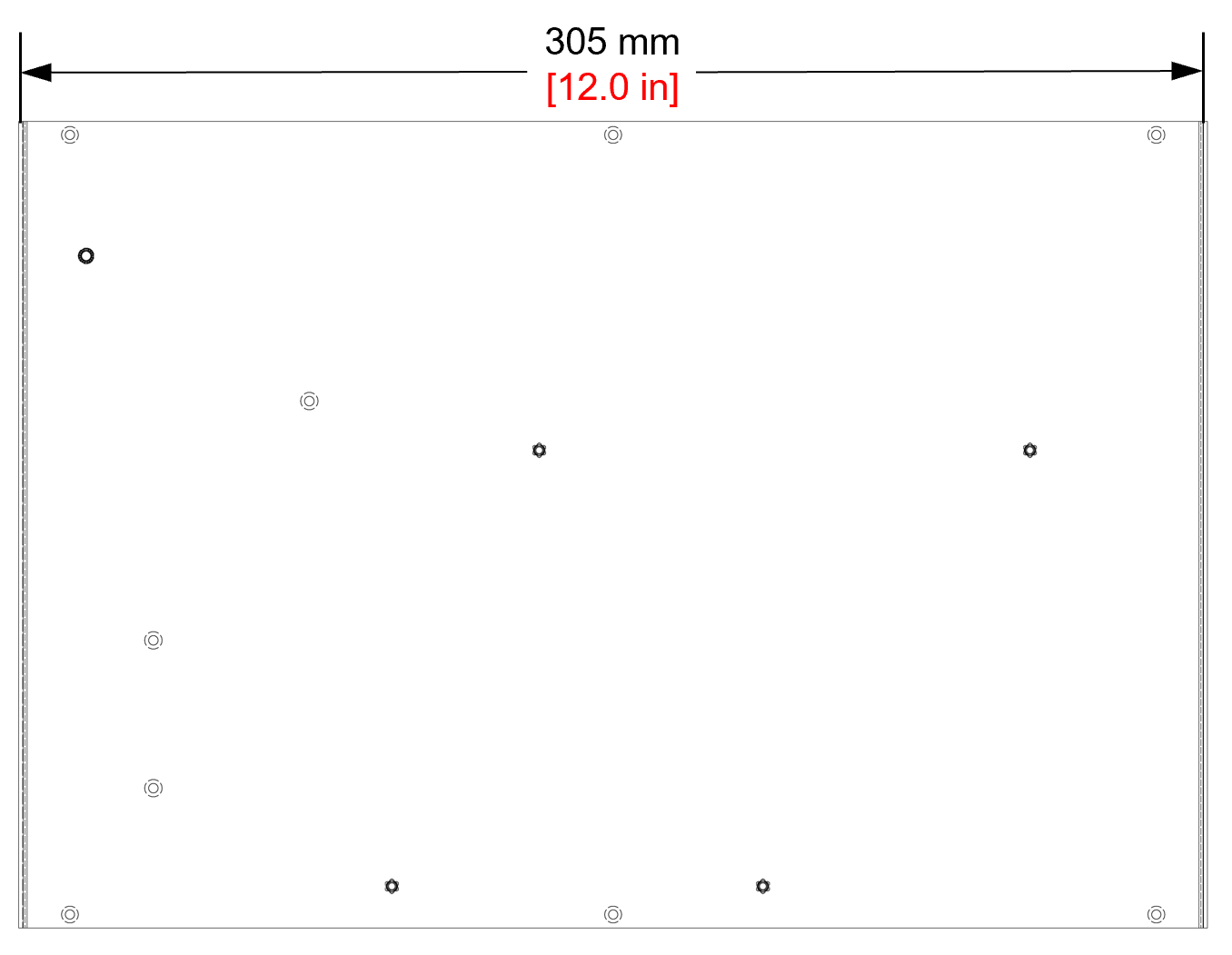

| Top View |
Still Have Questions?
If you have any questions, please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.09.06. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
