Key Features

  • Handheld controller for use with Elevation products
  • Available in 8, 16 and 24 channel versions.
  • Integrated speed control for use with variable speed hoists
  • Ability to enable/disable limits using the bypass key
  • Toggle switches to initiate movement and Up, Down, Status indicators for providing feedback
  • Integrated E-Stop button, multifunction key switch and group halt feature





HERO-Elevation Rigger Front on black.png

Description

Designed to mimic industry-standard handheld controllers, the Elevation Rigger offers an instantly recognizable method of operation with minimal training required.

The Elevation Rigger can operate variable speed chain hoists in conjunction with Elevation Drive and can be used in place of, or in conjunction with, a computer control system such as Vector or K2.

Using the menu system on the Elevation Drive along with on-board speed control, the Elevation Rigger should only be used as a controller for simple setup operations where basic movements are required.

It is not recommended to run shows using the Elevation Rigger unless allowed by a suitable risk assessment.

An E-Stop button built into the controller and group functionality means that the Rigger provides a safe method of movement for setup purposes. The Rigger will automatically scan and recognise all connected Elevation controllers, further enhancing ease of use and operation.

A single XLR-7 cable provides the power and data required to operate the unit.

Specifications

Electrical
Mains in Power and data received via XLR7 cable connected to Elevation Drive or Array 485
Construction
Dimensions (L x W x H)

Rigger 8: 284 mm x 170 mm x 86 mm (11.2 in x 6.7 in x 3.4 in)
Rigger 16: 284 mm x 254 mm x 86 mm (11.2 in x 10.0 in x 3.4 in)
Rigger 24: 284 mm x 338 mm x 86 mm (11.2 in x 13.3 in x 3.4 in)
Total weight Rigger 8: 1.4 kg (3.1 lbs)
Rigger 16: 2.1 kg (4.6 lbs)
Rigger 24: 2.8 kg (6.2 lbs)
Enclosure C2 / 1.6 mm Aluminium, RAL5011 stove enamelled
Characteristics
Temperature Operating: 0ºC to 55ºC (32ºF to 131ºF)
Storage: -20ºC to 80 ºC (-4 to 175 ºF)
Ingress Protection IP40
Compliance EN62061, EN ISO 13849
Accessories provided PowerCON True1 2 m power cable, socket to bare ends


Dimensions

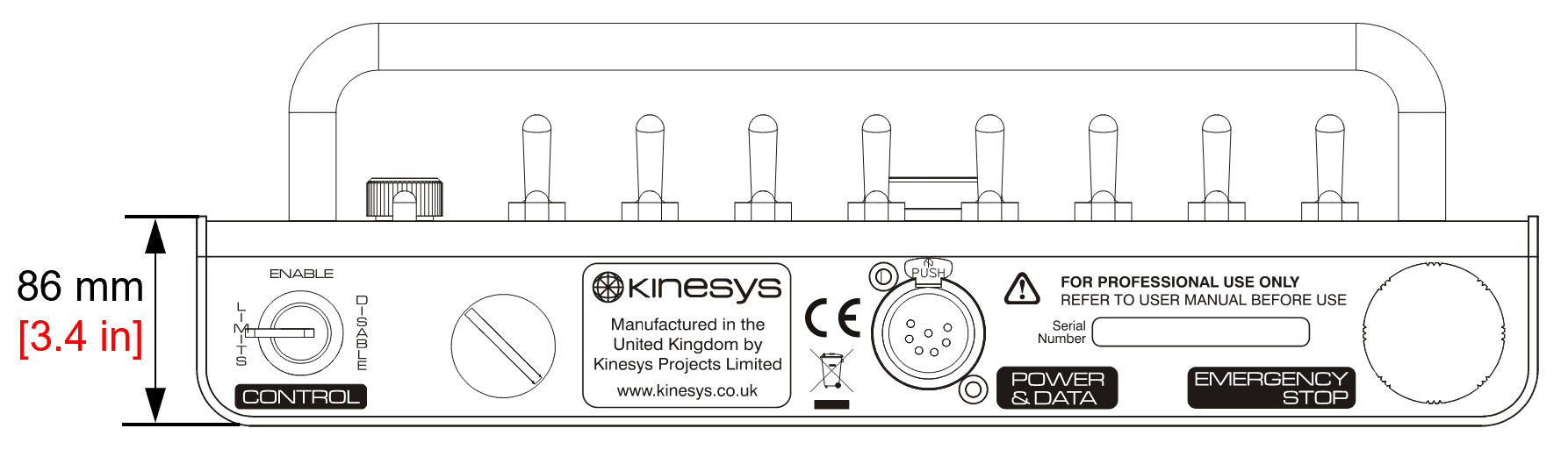

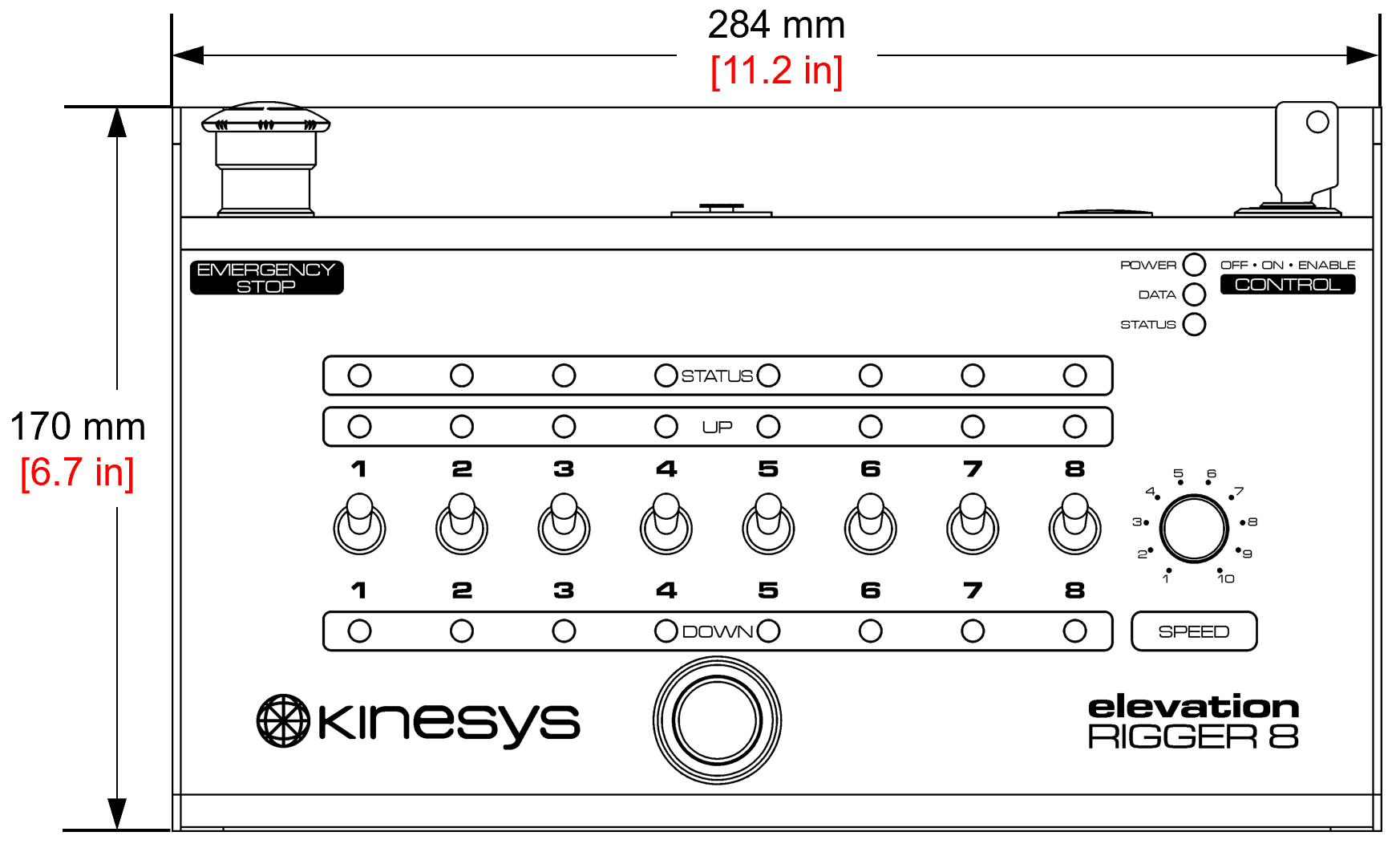

Front View (8-channel) Side View (8-channel)
Rigger Front Dims.PNG Rigger Side Dims.PNG



Still Have Questions?

If you have any questions, please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.12.17. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
