Atlas Spec Sheet

Key Features

Simple wall-mounted control interface Primarily for stage management and maintenance personnel Individual log-ins allow customized level of access Three control modes: move, jog, and cue Uses Embedded TAIT Navigator Custom user interface screens

Description

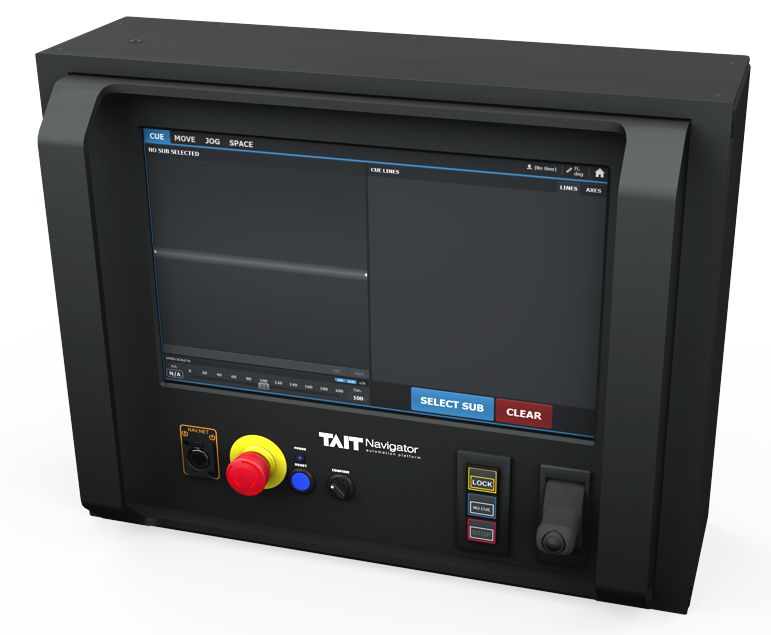

TAIT’s NAV:Atlas is a control interface designed primarily for stage management and maintenance personnel. It is wall-mounted, hardwired, and operates any equipment connected to NAV:Net. Custom user interface screens show relevant functions for different types of operators and access levels, turning a complex system into a simple user interface.

Three modes are available: move, jog, and cue. Move mode sends an axis or group of axes to a precise location. Jog mode allows the user to manually move an axis or group of axes. Cue mode programs simple cues with an axis or group of axes. Integrated Safety Controller allows the Atlas to act as a complete system controller.

Specifications

Dimensions

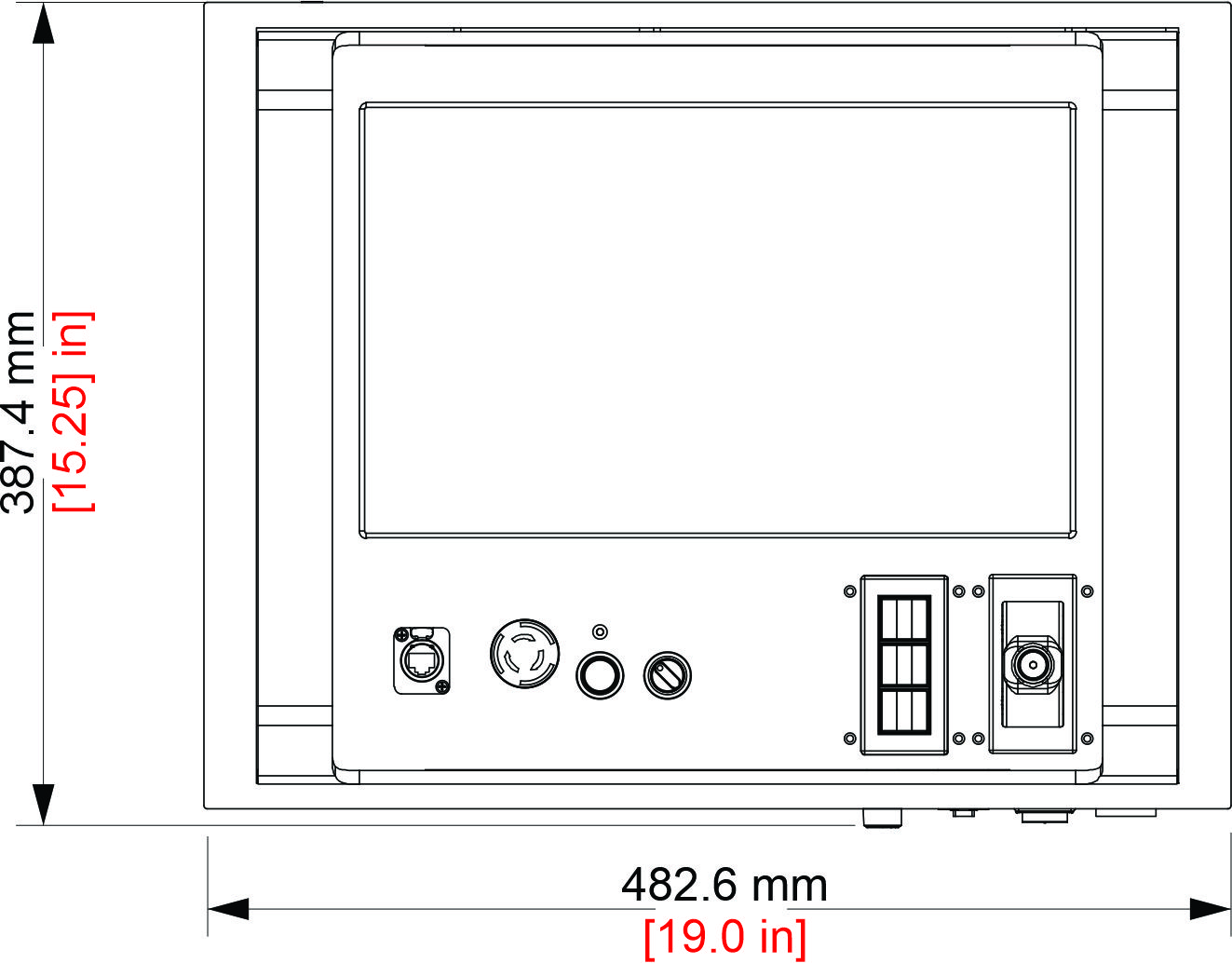

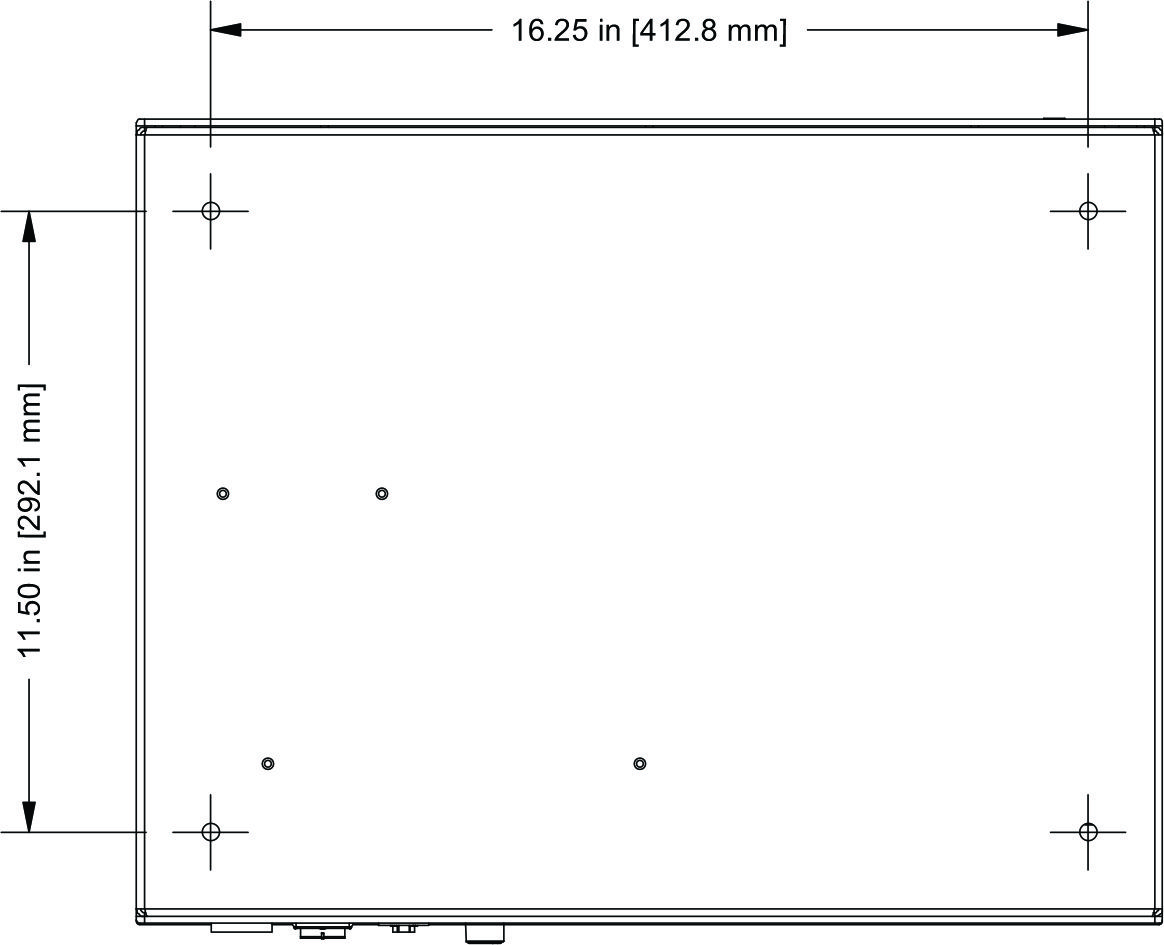

Front View	Back View

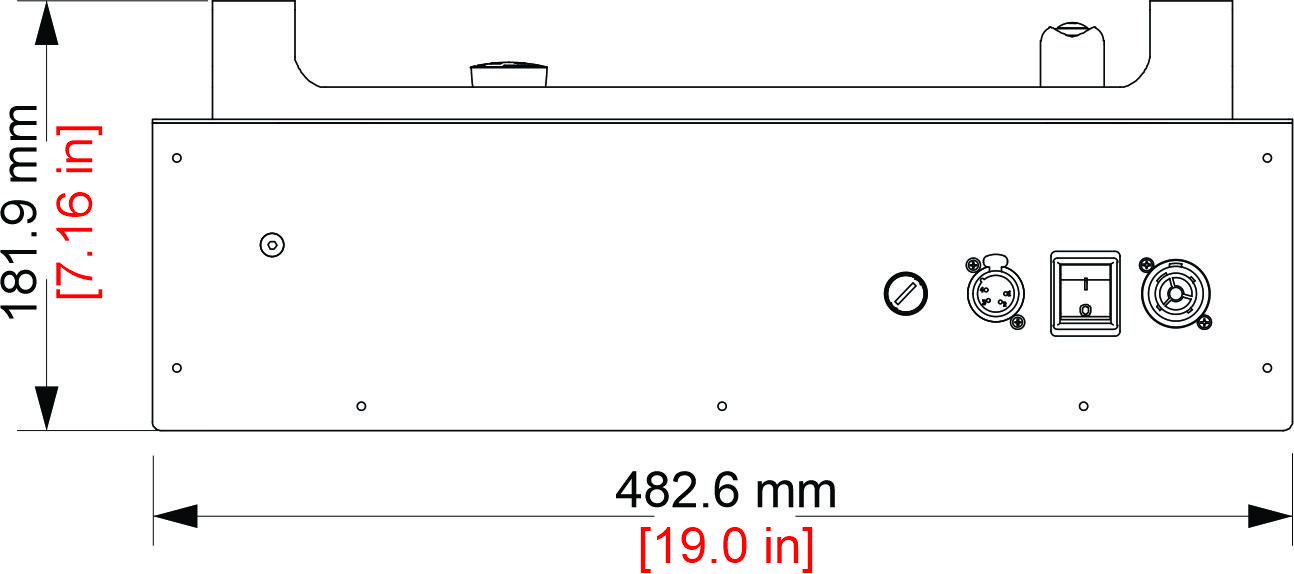

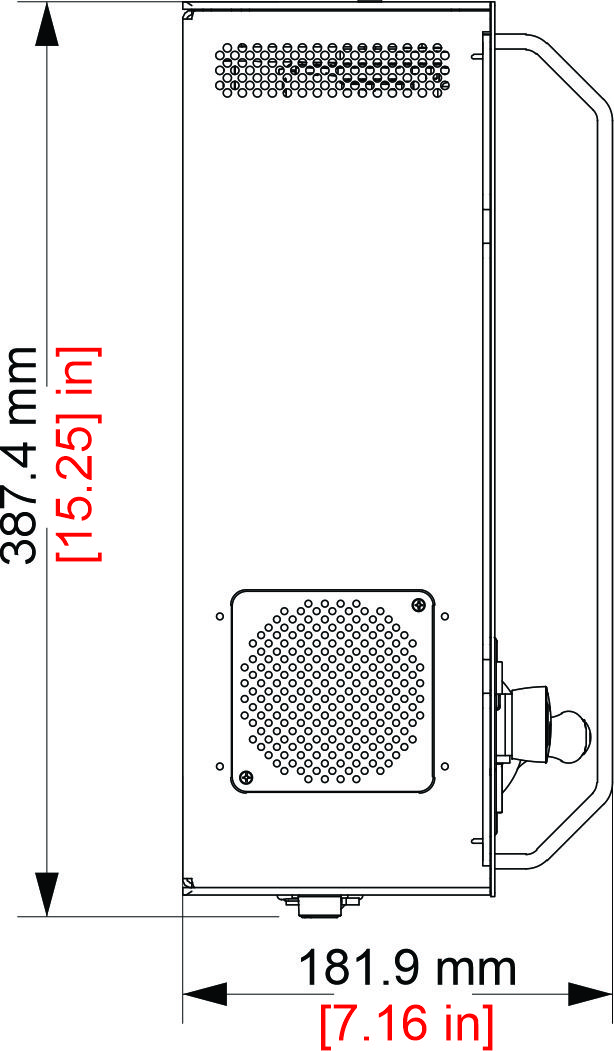

Bottom View	Side View

Want To Learn More?

Ready to learn more about our Atlas control interface? Click here to contact our sales team.

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.10.29. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 19812504
