Kinesys DigiHoist DigiLink Spec Sheet

Daniel Proctor
  • Updated
Not yet followed by anyone

Key Features

  • Linking unit for connecting and controlling large numbers of DigiHoists remotely
  • Connections for up to four DigiHandsets and up to 96 channels in total.
  • Status and presence indicators for all connections
  • Standard and Clone modes available

Description

The DigiLink unit offers the user the opportunity to control large numbers of DigiHoists remotely.

In order to control a system of greater than 32 channels multiple handsets are required. The DigiLink connects up to four handsets together so that a single handset GO button can control up to 96 hoists. While limiting the start of movement to a single GO button the DigiLink ensures that all emergency stops remain active at all times for maximum safety.

The DigiLink also offers an innovative Clone feature. This allows multiple handsets to take control of the same DigiHoist controllers. The DigiLink ensures that only one DigiHandset has control of the hoists at any one time while ensuring all the emergency stops stay active. Control is moved between handsets by simply pressing the emergency stop on any handset and then pressing RESET on the handset that is to take control.

Specifications

Electrical
Mains in 3-Phase + Neutral + Earth, 50-60 Hz, via Neutrik PowerCON True1 power cable, socket to bare ends
Connections
  • 1 x Amphenol C16-3 Link In Male 14+PE for DigiHoist
  • 4 x Amphenol C16-3 Link Out Female 14+PE for DigiHandsets
  • 1 x inlet/outlet combination Neutrik PowerCON True1
Front panel indicators
  • 4 x status and presence indicators for DigiHandset
  • 3 x mains and status indicators for DigiLink
Construction
Dimensions, excluding cables and connectors (L x D x H) 482.6 mm x 300 mm x 88.1 mm (16.7 in x 11.8 in x 3.5 in)
2U 19" rack format
Total weight 3.3 kg (7.3 lbs)
Enclosure 1.5 mm steel, matt black powder coat finish
Characteristics
Temperature Operating: 0 to 55ºC (32 to 131ºF)
Storage: -20 to 80 ºC (-4 to 175 ºF)
Ingress Protection IP40
Compliance EN62061, EN ISO 13849


Dimensions

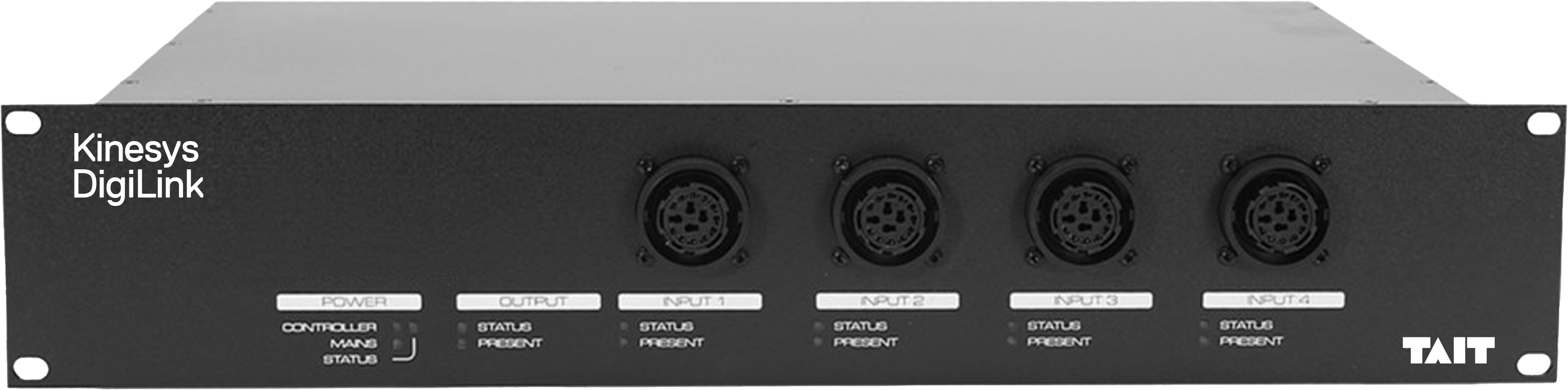

Front View (L x H)
DigiLink Front Dimensions.PNG

Still Have Questions?

If you have any questions, please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.11.01. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.
