Kinesys Libra Rig Spec Sheet

Key Features

Lifting accessory designed to connect a 4.75T Libra Cell shackle to a 3.25T bow shackle

Description

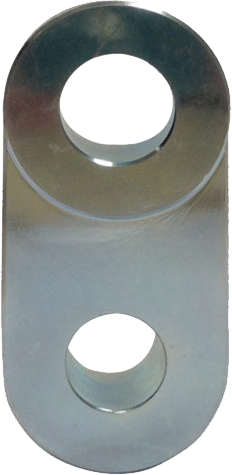

The Libra Rig is a lifting accessory designed to connect a 4.75T Libra Cell shackle to a 3.25T standard bow shackle.

Using the Libra Rig, Libra Cells do not have to be disassembled during load in/load out.

The Libra Rig can travel on the Libra Cell and loses less "hook height" than a traditional O ring, saving time and increasing the efficiency of the rigging process.

The Libra Rig is not designed for lifting people.

Specifications

• 23 mm hole for Libra Cell 4.75T load pin
• 20 mm hole for 3.25T bow shackle pin
• Safe working load (SWL): 3.25 T
• Made in steel with zinc clear passivated finish
• Safety factor 5:1
• Measures 100 mm x 46 mm x 25/30 mm

Additional photos

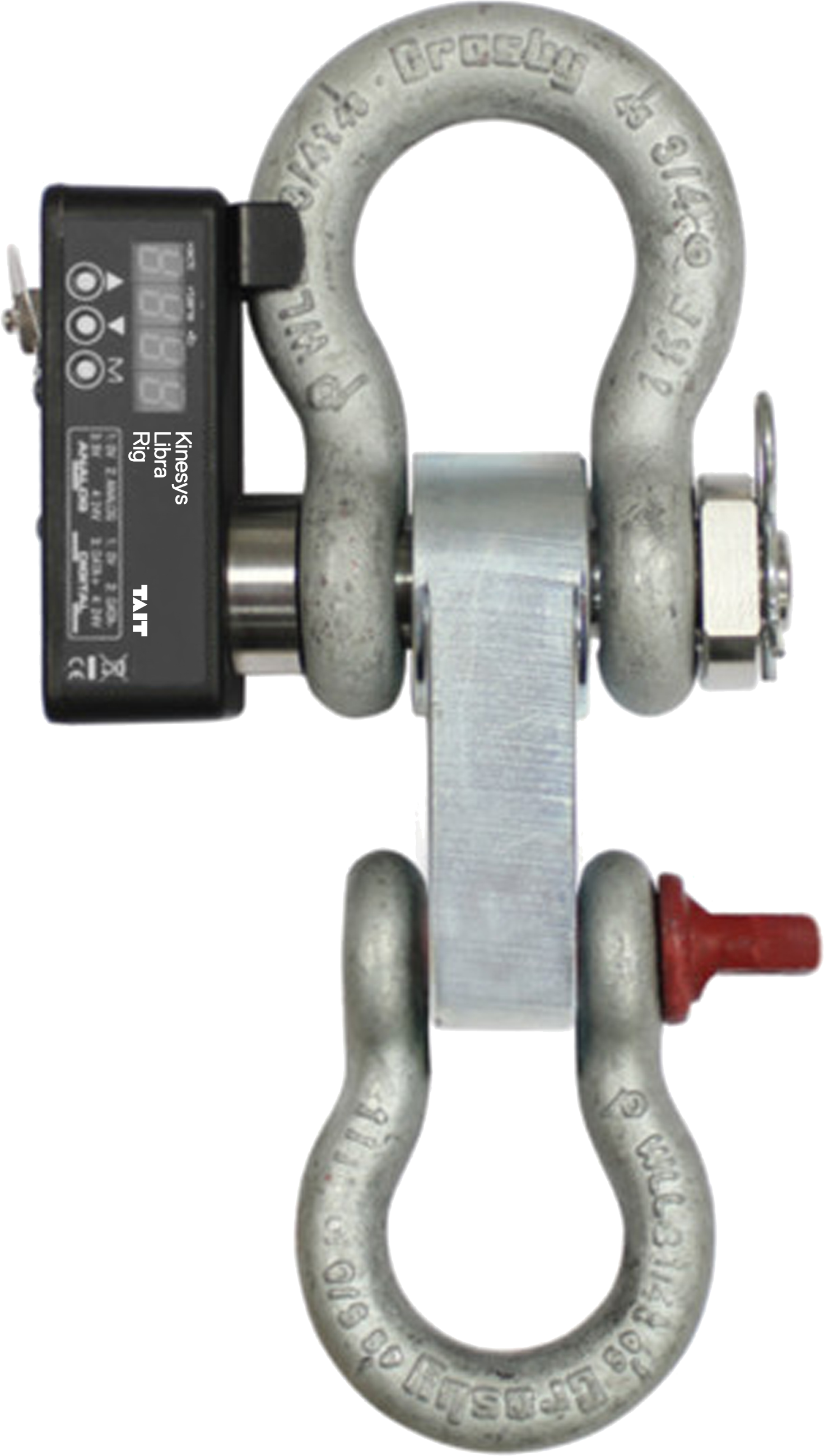

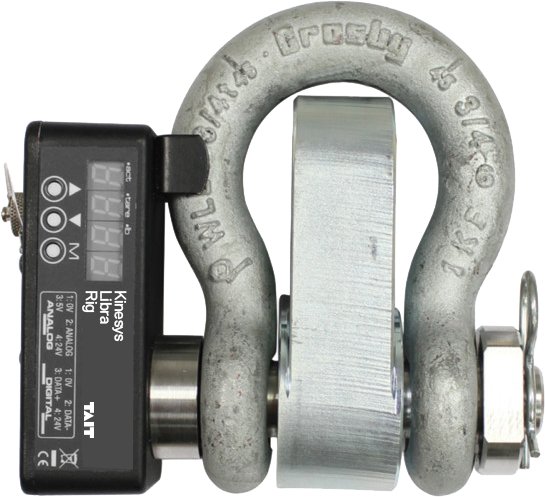

Libra Rig connected to the Libra Cell and 3.25T bow
