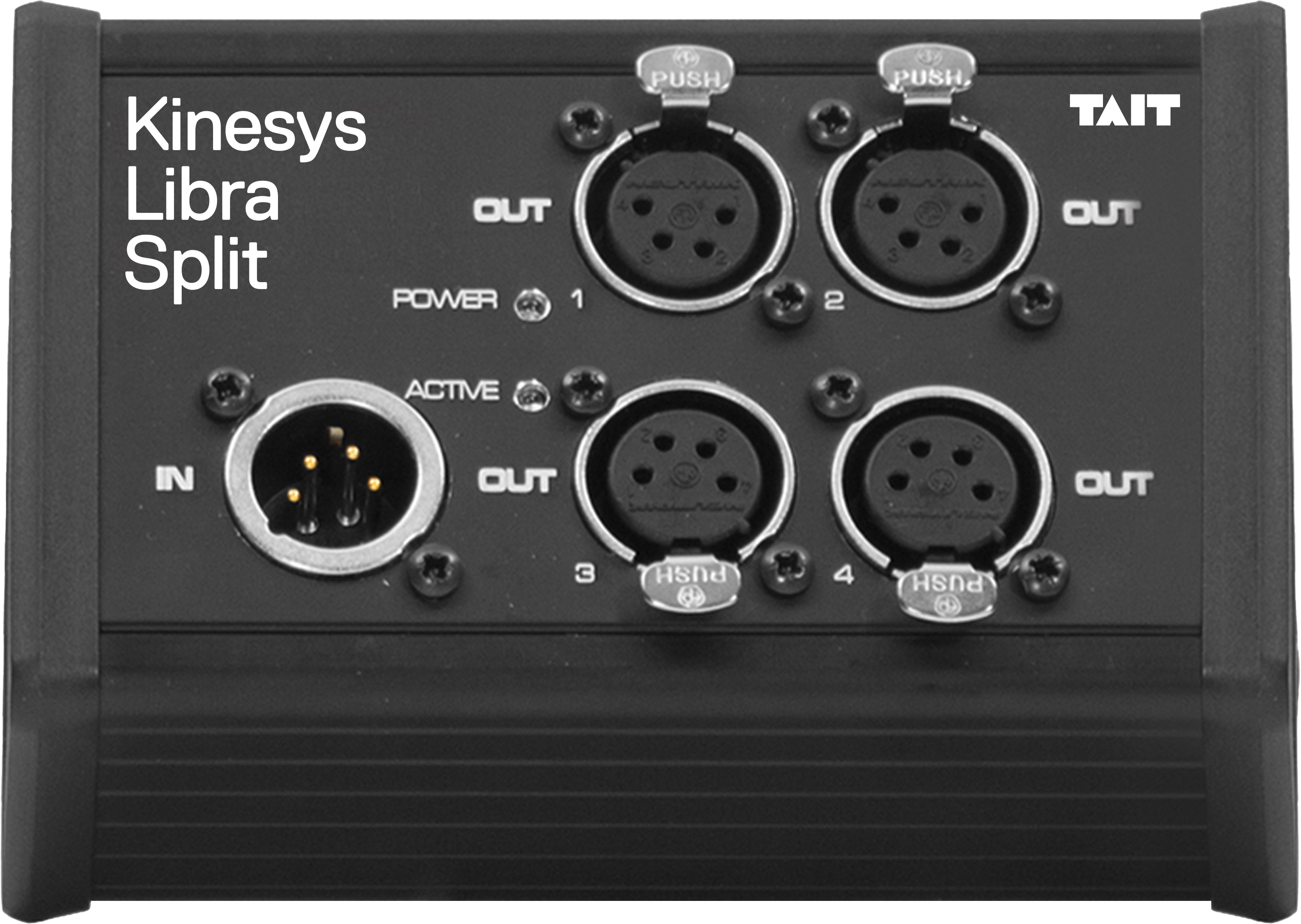

Kinesys Libra Split Spec Sheet

Key Features

Loadcell splitting unit that allows multiple Libra Cell units to be connected to a single port on a Libra controlling device.

Description

The Libra Split allows multiple chains of Libra Cells to be connected to a single port on a Libra controlling device such as Libra Pro, Libra Basic or DigiHoist.

The total number of cells connected to the Libra Split is restricted by the limitations of the master port or master device.

The Libra Split is housed in a robust extruded aluminium case and receives low-voltage DC power from the incoming data cable.

Specifications

• Data Input: 1 x Neutrik XLR4 male
• Data Output: 4 x Neutrik XLR4 female
• Indicators: Power and Activity
• Dimensions: 129 mm x 81 x 47 mm (5.1 in x 3.2 in x 1.9 in)
• Weight: 0.27 kg (0.6 lbs)
