Kinesys Elevation Hoist Lodestar® Spec Sheet

Daniel Proctor
  • Updated

Key Features

  • Variable-speed converted chain hoist to be used with an Elevation controller.
  • Speed ranges from 0 to 6 m/min or 0 to 30 m/min.
  • Lifting capacities from 500 kg to 2000 kg
  • More configurations available on request.

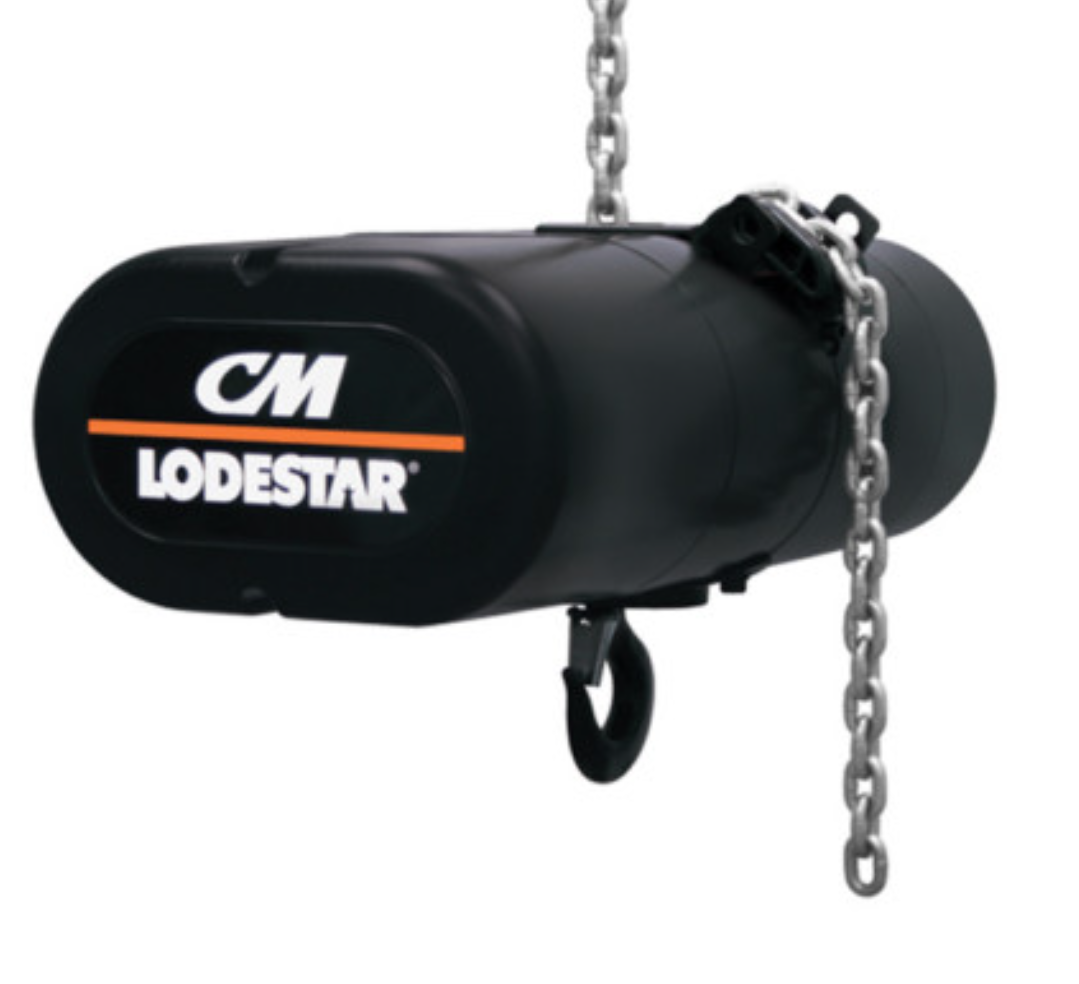

 CM Hoist.PNG

Description

The Kinesys-converted Elevation Hoist Lodestar® combines the lifting mechanism design of a CM chain hoist with the control of the Kinesys Elevation variable speed chain hoist system.

All hoists are fitted with double brakes, limit switches and an encoder. In conjunction with the Libra Cell load cell system, they can reach conformity with many of the world's most restrictive safety standards.

Hoists are available in US, China and European voltage variants and come in a wide range of sizes, speeds and lifting capacities.

Hoist are available in four models: JJ (two lifting speeds available, see below), LL and RR. This naming convention is taken from the original manufacturer (CM).

Specifications

Software Compatibility
Control System TAIT Navigator and iQ
Electrical
Motor Phase 3-Phase + PE
Operating Voltage 400 V
Brakes Double silent brakes
Limit switches 4 adjustable limit switches
Connections
Power, Network Multi-function Harting connector
Compatible Controller  Elevation Drive
Mechanical
Max lifting speeds

JJ - 30 m/min & 21 m/min
LL - 10.5 m/min
RR - 6 m/min
Reeving options JJ 30 m/min: Single only
JJ 21 m/min: Single only
LL: Single only
RR: Single & Double
Entertainment Load Limit (ELL) JJ 30 m/min: 500 kg (1100 lbs)
JJ 21 m/min: 500 kg (1100 lbs)
LL: 1000 kg (2200 lbs)
RR: 2000 kg (4400 lbs)
Construction

Dimensions, excluding cables, hook and chain
(W x D x H)

321 mm x 582 mm x 208 mm (12.6 in x 22.9 in x 8.2 in)
Hoist weight, excluding chain JJ 30 m/min: 61 kg (134.4 lbs)
JJ 21 m/min: 58 kg (127.9 lbs)
LL: 58 kg (127.9 lbs)
RR: 62 kg (136.7 lbs)
Chain weight 1.42 kg/m
Chain size 7.9 x 21.7 mm
Characteristics
Ingress Protection IP55
Temperature Operating: 5 to 40ºC (41 to 104ºF)
Storage: -20 to 80 ºC (-4 to 175 ºF)
Accessories
  • Chain bag and attachment bracket
  • Load chain (black), length specified on order
  • Lift limiter
  • Chain, with latch lock mechanism
  • Hook or lug suspension assembly


Dimensions

Front View Side View

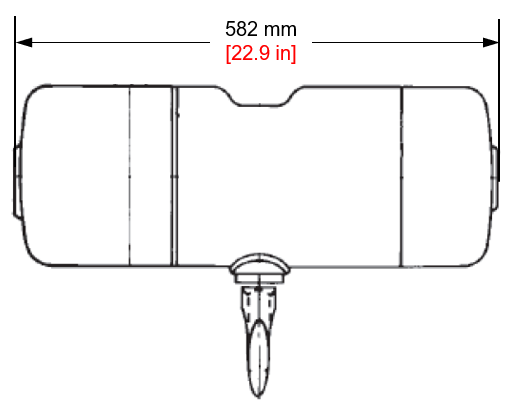

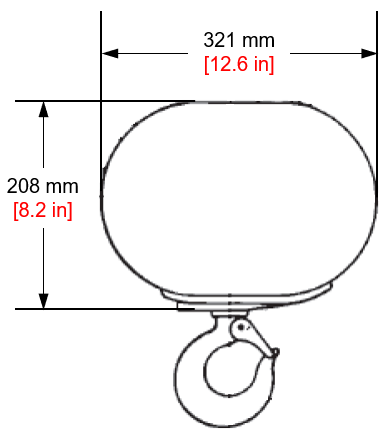

CM Hoist Front Dims.PNG CM Hoist Side Dims.PNG



Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2024.10.29. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
