AU:tour 6 Spec Sheet

Lesa Snider
  • Updated

Key Features

  • Portable Motion Control Cabinet (MCC) with its own touring case
  • Plug-and-play wheeled cabinet
  • Easily adaptable, highly flexible
  • Ideal for use with winches and point hoists and integrates seamlessly with additional stage machinery

Description

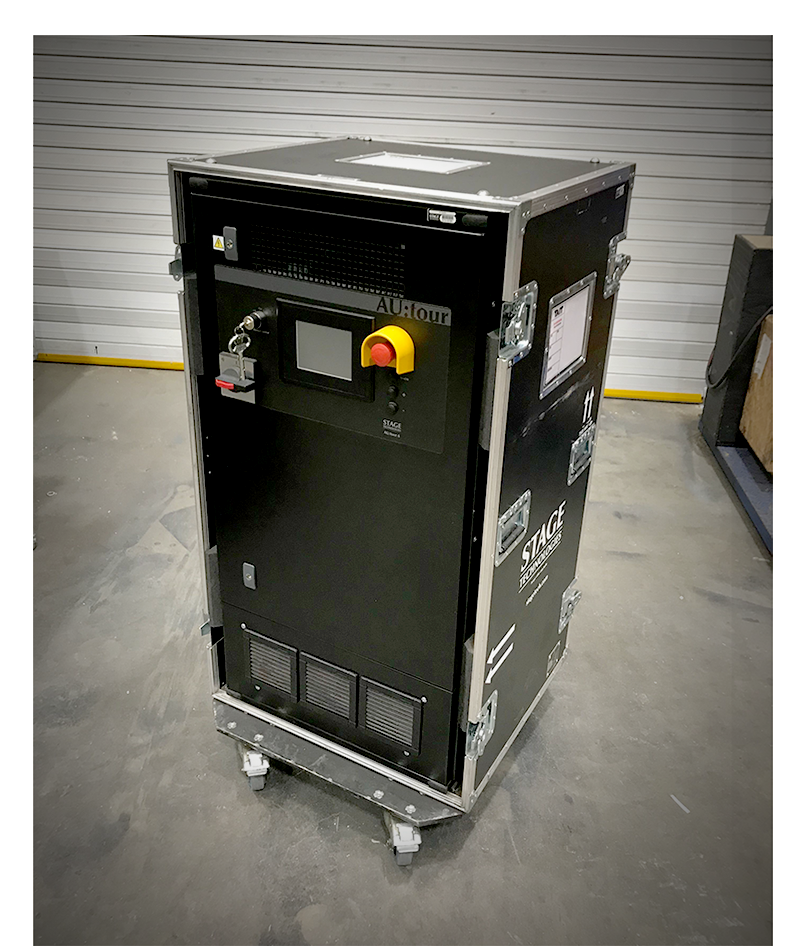

The AU:tour 6 is a control rack system mounted within a touring case. A reliable, plug-and-play system, it is predominately used for temporary installations and touring, but can also be used in a wide range of other live entertainment environments. The AU:tour 6 comes with six 18A drives but is also configurable with up to three 30A drives, or a combination of the two. Multiple AU:tours can be combined into a more extensive system or integrated into existing permanent installations. A braking resistor optional is available if regen into the grid is not possible. There is essential local control and diagnostics on the built-in touch panel, and The AU:tour is controllable by either Navigator or eCham consoles.

Specifications

Software Compatibility
Front End eCham or TAIT Navigator (with optional add-on)
Control System Siemens, Simotion
Electrical
Duty Cycle S4
Rated Voltage 415V to 480V, 50/60 Hz
Current 125A
Maximum Drive Size 30A*
Maximum Number of Drives 6*
  *Not available together
Connections
Power Pin and sleeve 125A, 3 Phase
Winch/Machine Harting
Construction
Dimensions (L x W x H) 0.92 m x 0.72 m x 1.53 m (3.02 ft x 2.36 ft x 5.02 ft)
Dimensions with Braking Resistor 0.92 m x 0.72 m x 1.96 m (3.02 ft x 2.36 ft x 6.43 ft)
Weight 280 kg (617.29 lbs)
Weight with Braking Resistor 380 kg (837.76 lbs)
Certifications
Safety European Machinery Directive
SIL 3 (requires optional safety features)
British Standard BS 7905-1: 2001
Accessories
Braking Resistor For use with generator power
I/O Expansion For when additional I/O is required


Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.11.10. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 19942013-C
