Key Features
- Navigator-embedded handheld device
- Allows remote control of devices connected to TAIT Navigator Automation System™
- Portable console with ergonomic design
- Individual log-ins allow customized level of access
- Multiple control modes including cue, jog, and custom move
- Uses an Embedded Navigator operating system, though custom user screens are available
|
|
Description

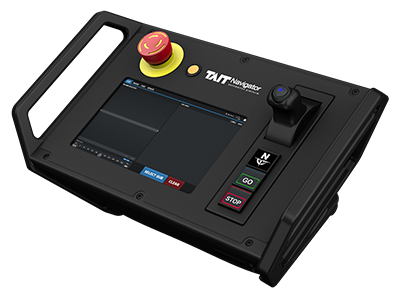

TAIT’s NAV:Compass is a TAIT Navigator-embedded, handheld device that allows for remote control of devices connected to the Navigator Automation System™. It features a simple interface for operating any equipment connected to NAV: Net and individual logins allow for customized levels of privileges that control access. Custom user interface screens show relevant functions for different types of operators and access levels. Multiple control modes are available, including move, jog and cue. Move mode sends an axis or group of axes to a precise location. Jog mode allows the user to manually move an axis or group of axes. Cue mode programs simple cues with an axis or groups of axes. Users can also view axis details, I/O devices, as well as system status for troubleshooting. Transportation/storage case included.
Specifications
Software Compatibility |
Control System |
TAIT Navigator, iQ |
Other |
Display |
7 inch touchscreen |
Channels |
See options above |
E-Stop Buttons |
1 |
Input Data/Power |
Power over Ethernet; 802.3at 30W |
Enable Inputs |
1 |
Dimensions (L x W x H) |
340 mm (13.39 in) x 220 mm (8.66 in) x 190 mm (7.48 in) |
Weight |
2.79 kg (6.16 lb) |
|
|
Dimensions
Top View |
Side View |
|
|
Channel Options
2 Axis Joystick |
Encoder Wheel |
Quad Display |
|
|
|
Single Axis Joystick |
Single Axis Joystick Low Pro |
|
|
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2019.03.01. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 19812404
