The second-generation Big Tow winches are the first choice for theatre installations touring productions and spectaculars that need to move scenery or fly performers across the stage. The BT2 range winch incorporates zero fleet technology, allowing the winch to be mounted easily in any position by ensuring the drum take-off points remain static. The BT2 winches conform to the BS7905-1:2001 standard and the European Machinery Directive due to safety features such as dual brakes and a crossed groove detector. The winches also offer optional safety features including load cells, a slack rope detector, and a secondary encoder. Optional winch control systems are available for applications to be incorporated into SIL 3 installations.
200 Series
The BT2-200 series is the smallest of the BT2 range and comes in several configurations up to an ELL of 325kg. Its narrow depth matches that of a standard theatre flying system and allows compact installation in a theatre grid. Perfect for direct flying, counterweight assist, performer flying or traversing.
Specifications
Software Compatibility | |
Control System | TAIT Navigator, eChameleon |
Electrical | |
Motor Phase | 3 Phase |
Rated Voltage | 380V to 480V |
Current | Max: 17A at full load, full speed |
Connections | |
I/O, Encoder, Motor Power | AU:tour Harting |
Mechanical | |
Maximum Speed | 1.5 m/s (4.92 ft/s) |
Maximum Acceleration | 1.5 m/s2 (4.92 ft/s2) |
Working Load Limit | Non-Performer: 300 kg (661.39 lbs) |
Travel (5-Line) | 19.5 m (63.98 ft) |
Travel (6-Line) | 17.2 m (56.43 ft) |
Rope | Steel-Wire Rope, 6.5 mm (0.25 in) |
Set Up | |
Line Take-Off | Past Channels; Past Motor |
Orientation | A, B, C, E |
Environmental | |
Operating Temp | Clean, dry environment 10 C to 35 C (50 F to 95 F), 50% RH |
Outdoor Use | With cover |
Construction | |
Dimensions (L x W x H) | 2883 mm x 225 mm x 435 mm (113.50 in x 8.86 in x 17.13 in) Base Width: 200 mm (7.87 in) |
Drum Diameter | 125 mm (4.92 in) |
Weight | 200 kg (440.93 lbs) |
Certifications | |
Entertainment | BS 7905-1:2001 |
Safety | European Machinery Directive |
Accessories | |
Extras | Single- or Dual-Circuit Load Cell, Secondary Encoder, Brake Release Monitors, On-winch Diverter Sheaves |
Dimensions

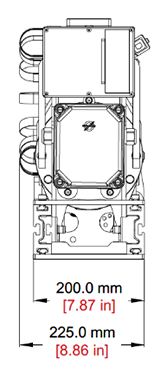

Front View | Rear View |

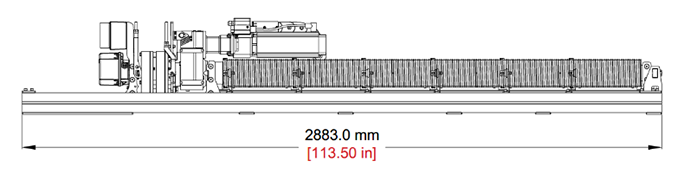

Side View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.11.12. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: BT2-200-16
