The second-generation Big Tow winches are the first choice for theatre installations touring productions and spectaculars that need to move scenery or fly performers across the stage. The BT2 range winch incorporates zero fleet technology, allowing the winch to be mounted easily in any position by ensuring the drum take-off points remain static. The BT2 winches conform to the BS7905-1:2001 standard and the European Machinery Directive due to safety features such as dual brakes and a crossed groove detector. The winches also offer optional safety features including load cells, a slack rope detector, and a secondary encoder. Optional winch control systems are available for applications to be incorporated into SIL 3 installations.

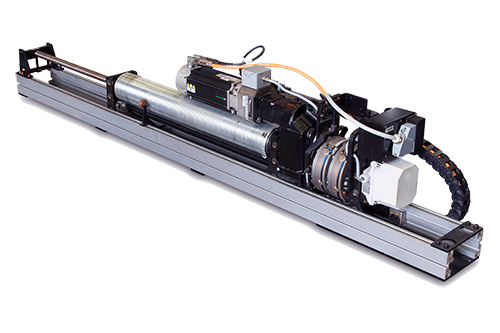

The BT2-200 series is the smallest of the BT2 range and comes in several configurations up to an ELL of 325kg. Its narrow depth matches that of a standard theatre flying system and allows compact installation in a theatre grid. Perfect for direct flying, counterweight assist, performer flying or traversing.
|Control System||TAIT Navigator, eChameleon|
|Motor Phase||3 Phase|
|Rated Voltage||380V to 480V|
|I/O, Encoder, Motor Power||AU:tour Harting|
|Maximum Speed||3 m/s (9.84 ft/s), determined by motor size and gearbox ratio|
|Maximum Working Load||325 kg (716.50 lbs), determined by motor size and gearbox ratio|
|Maximum Travel||Variable, dependent upon lead screw and drum length|
|Maximum Stroke||90 m (295.28 ft), with 5 mm (0.20 in) rope;
can be divided into multiple lines, single ended or roll on/roll off
|Rope||Synthetic or Steel Wire Rope, 2 mm to 6.35 mm (0.08 in to 0.25 in)|
|Line Take-Off||Past Channels; Past Motor|
|Orientation||A, B, C, E|
|Operating Temp||Clean, dry, environment, 10 C to 35 C (50 F to 95 F), 50% RH|
|Outdoor Use||With cover|

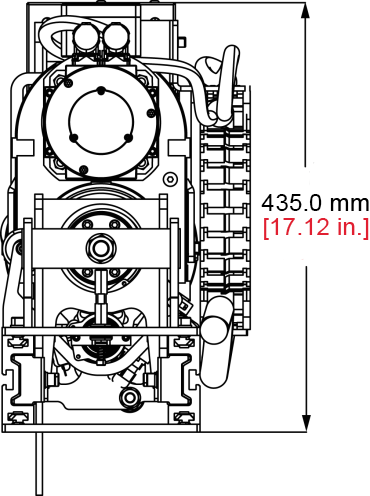

|Dimensions (W x H)||250 mm x 435 mm (9.84 in x 17.13 in)
Maximum Length: 3500 mm (137.80 in)

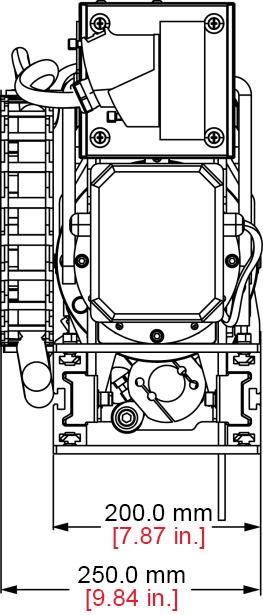

Base Width: 200 mm (7.87 in)
|Drum Diameter||125 mm (4.92 in)|
|Self Weight, typical||220 kg (485.02 lbs)|
|Entertainment||ANSI E1.6 1-2012, ANSI E1.43-2016, BS 7905-1:2001|
|Safety||European Machinery Directive
SIL 3 (requires optional safety features)
|Extras||Single- or Dual-Circuit Load Cell, Secondary Encoder, Brake Release Monitors, On-winch Diverter Sheaves|
|Front View||Rear View|
