Key Features
- Purpose-built for iQ
- Intuitive touchscreen interface
- Fully integrated design (accessories available but not required)
- Integrated timecode and show control interfaces
- Delivered with world-class design, support and training
- Inspired by 20 years of live event automation customer feedback
|
 |
Description

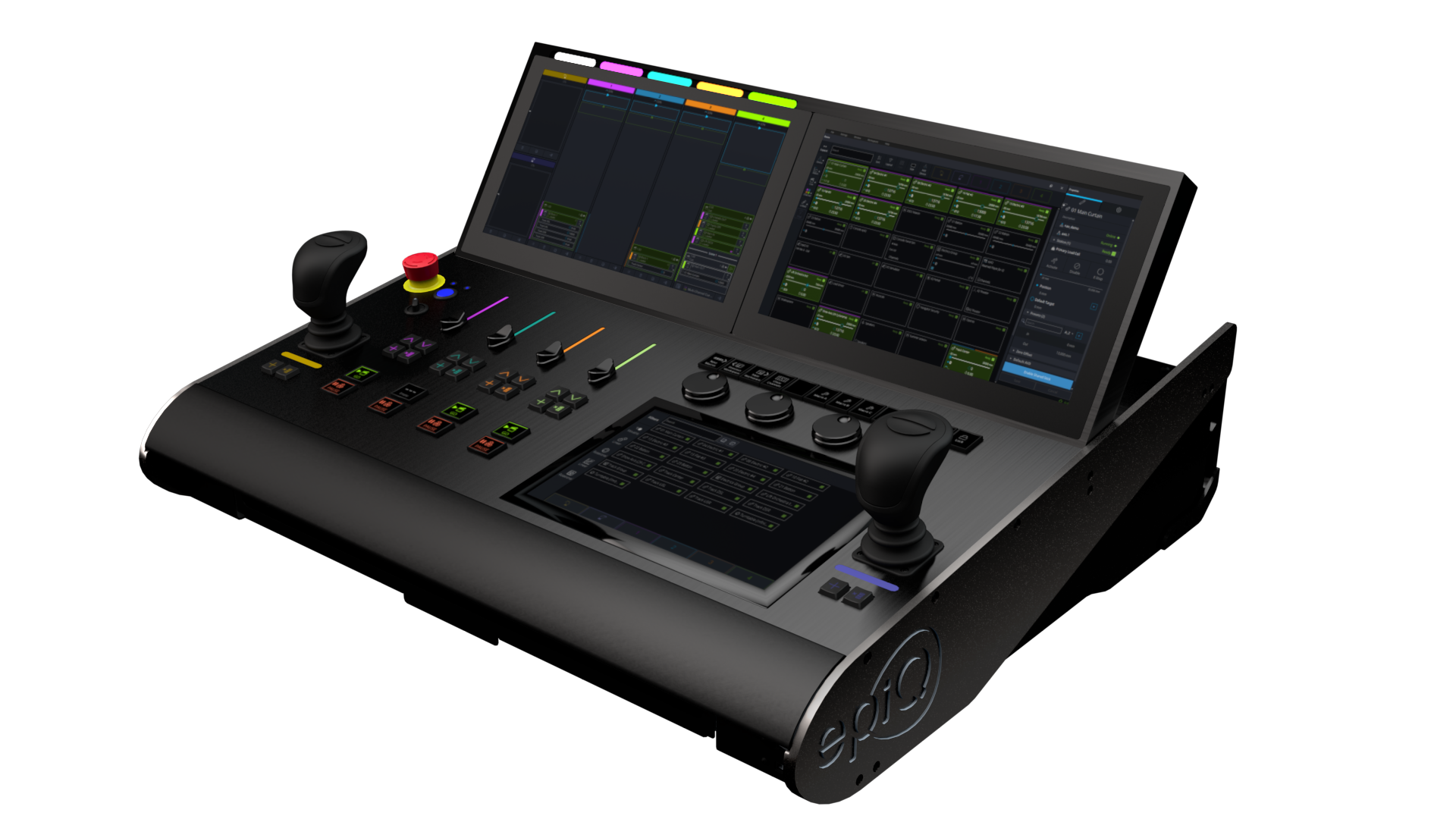

TAIT's newest entertainment console, epiQ™, is purpose-built for iQ powered by Navigator and unifies the control of live event automation in one cohesive experience giving the user the confidence and power to maximize the creative potential of any live event. The epiQ™ console can work as a complete system controller for smaller shows or be used with additional processing units allowing it to work with a virtually unlimited number of axes in the system. For larger shows, multiple operator consoles can be used. The epiQ™ console's compact size allows it to be positioned with good visibility to other equipment being controlled. The touchscreen interface combined with key hardware controls allow the operator to quickly select axes, set motion parameters, and speed scale in progress motion. Commands can easily be programmed into cue blocks to create programmed sequences. See also: epiQ™ Console Stand Spec Sheet.
Dimensions

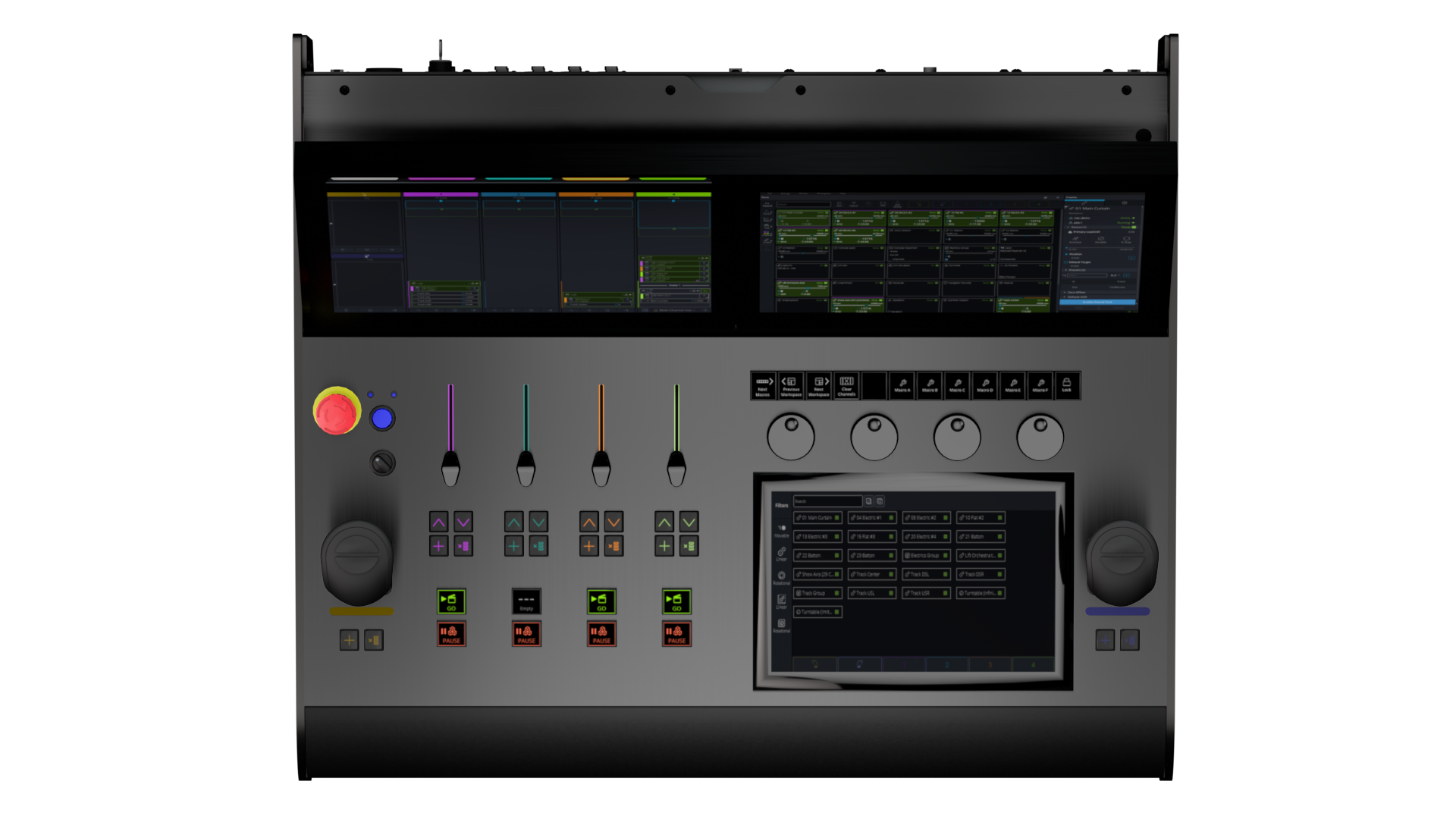

| Top View |

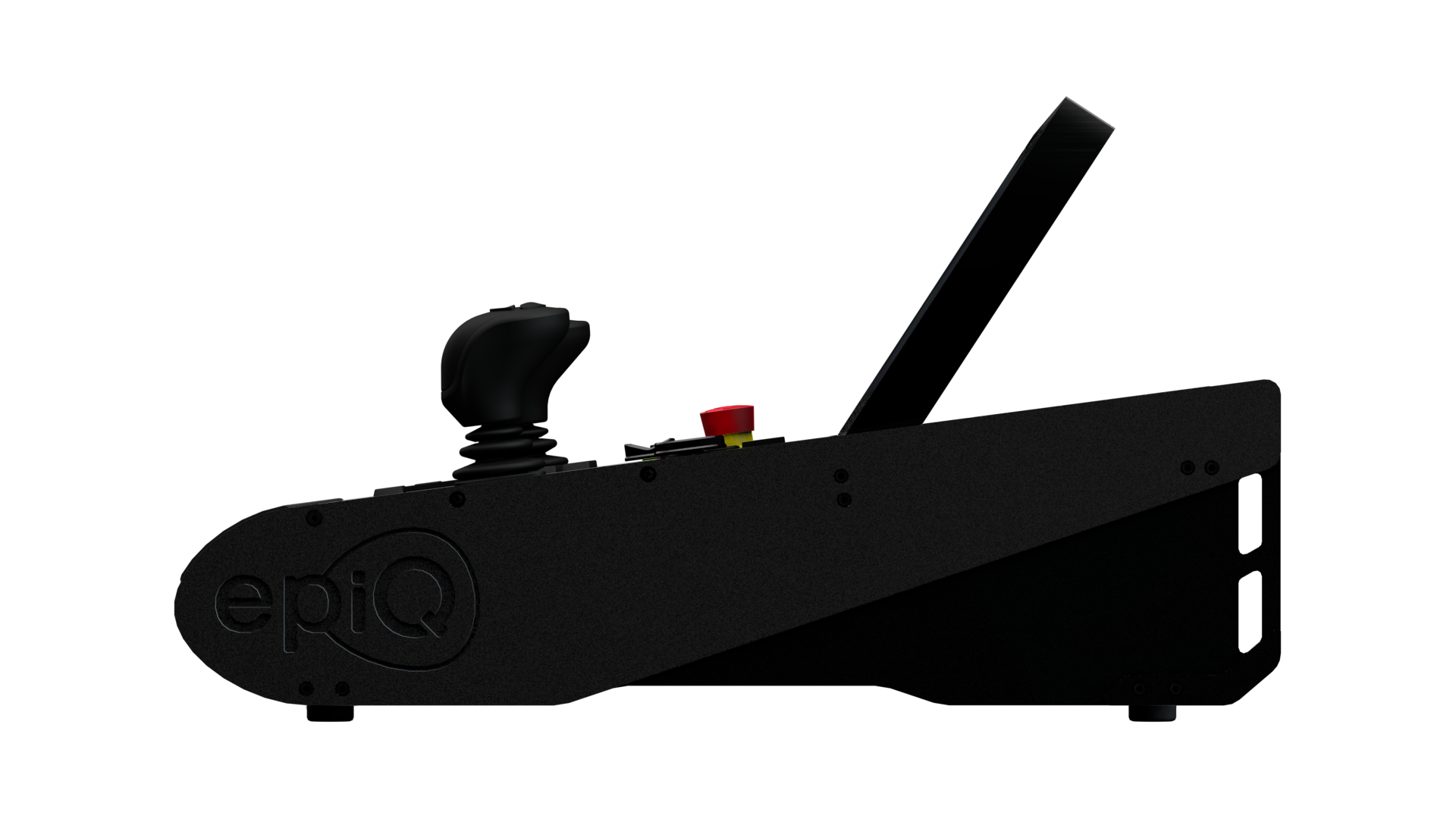

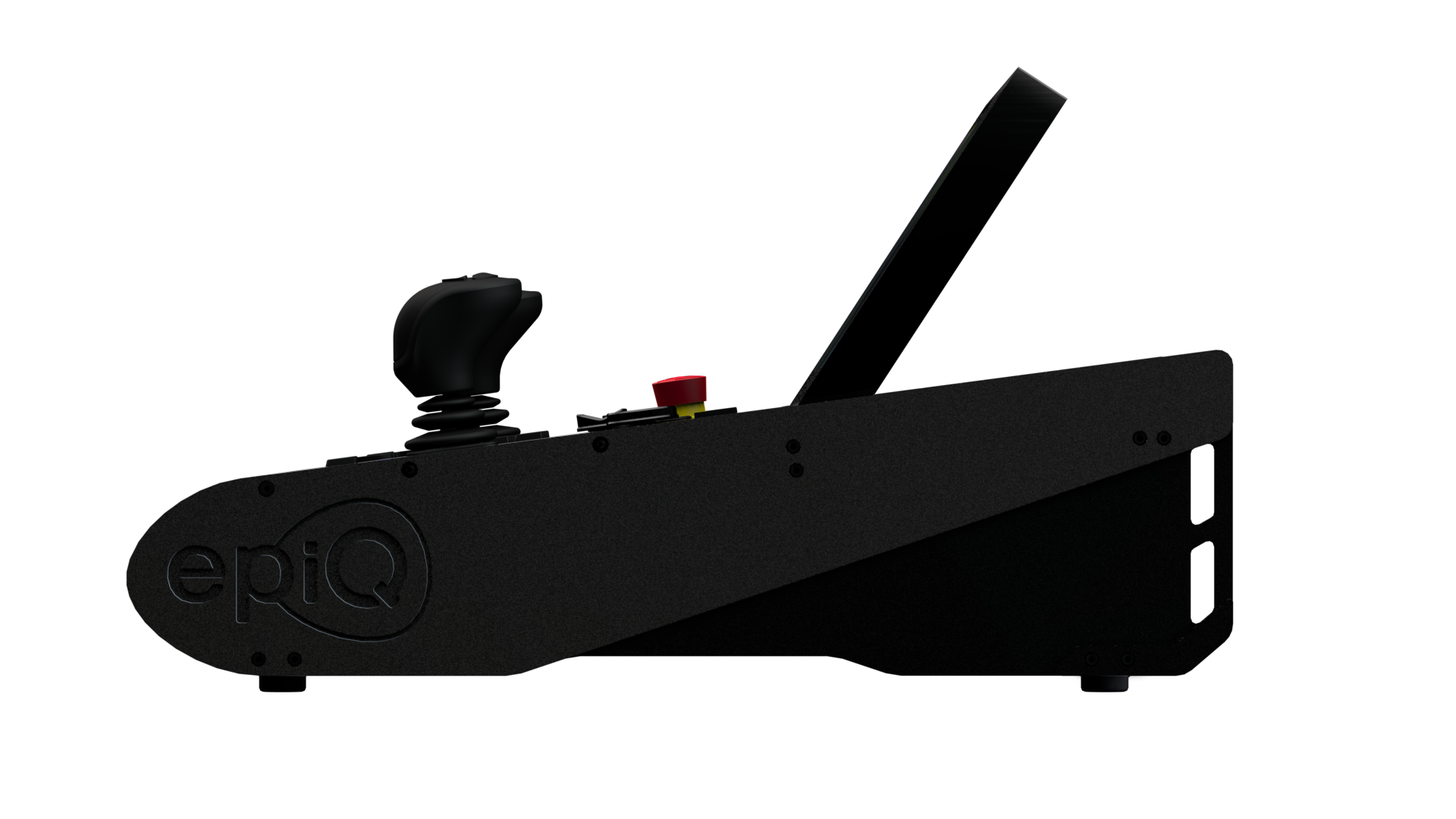

Side View |
 |
 |

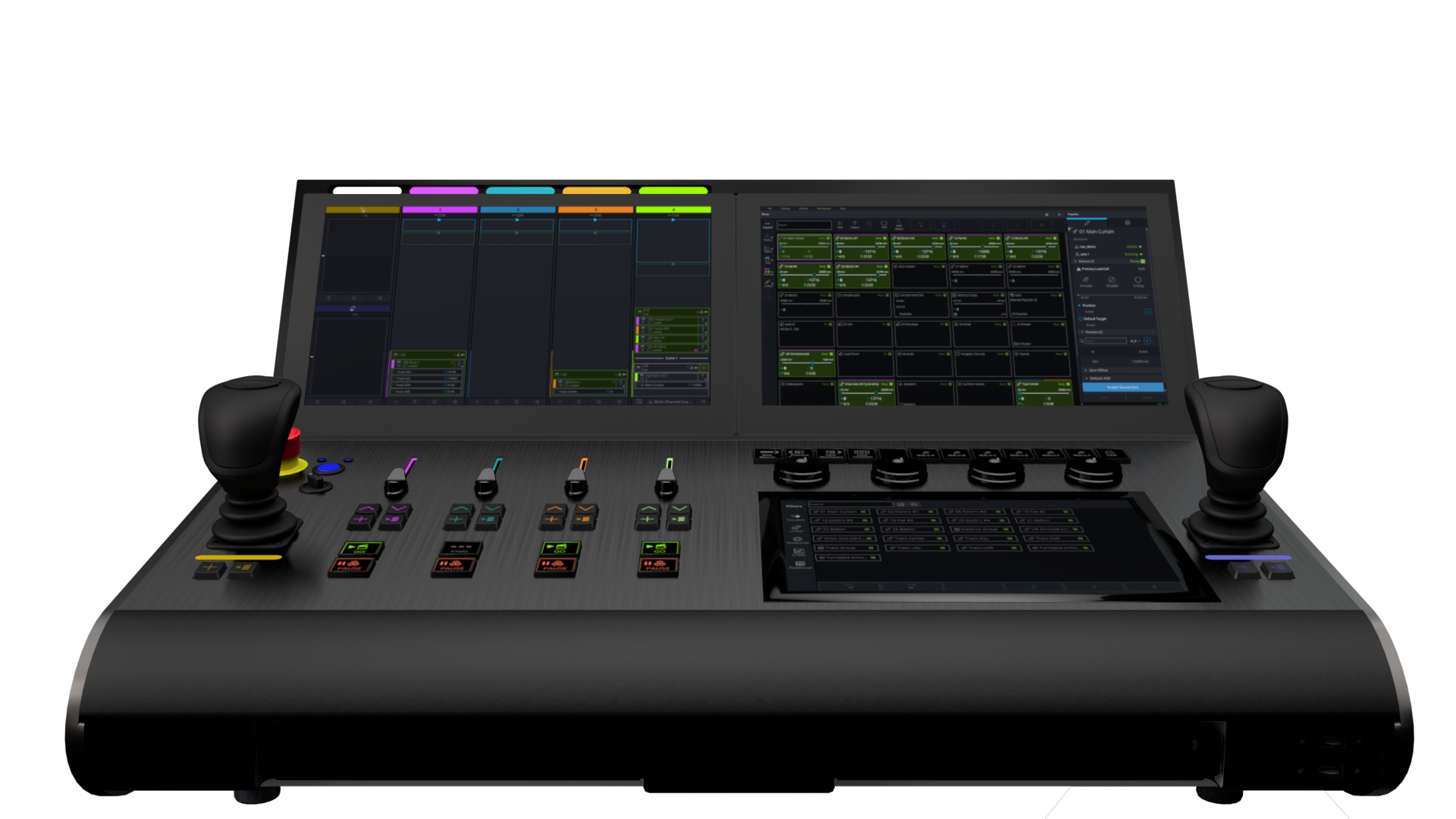

| Front View |

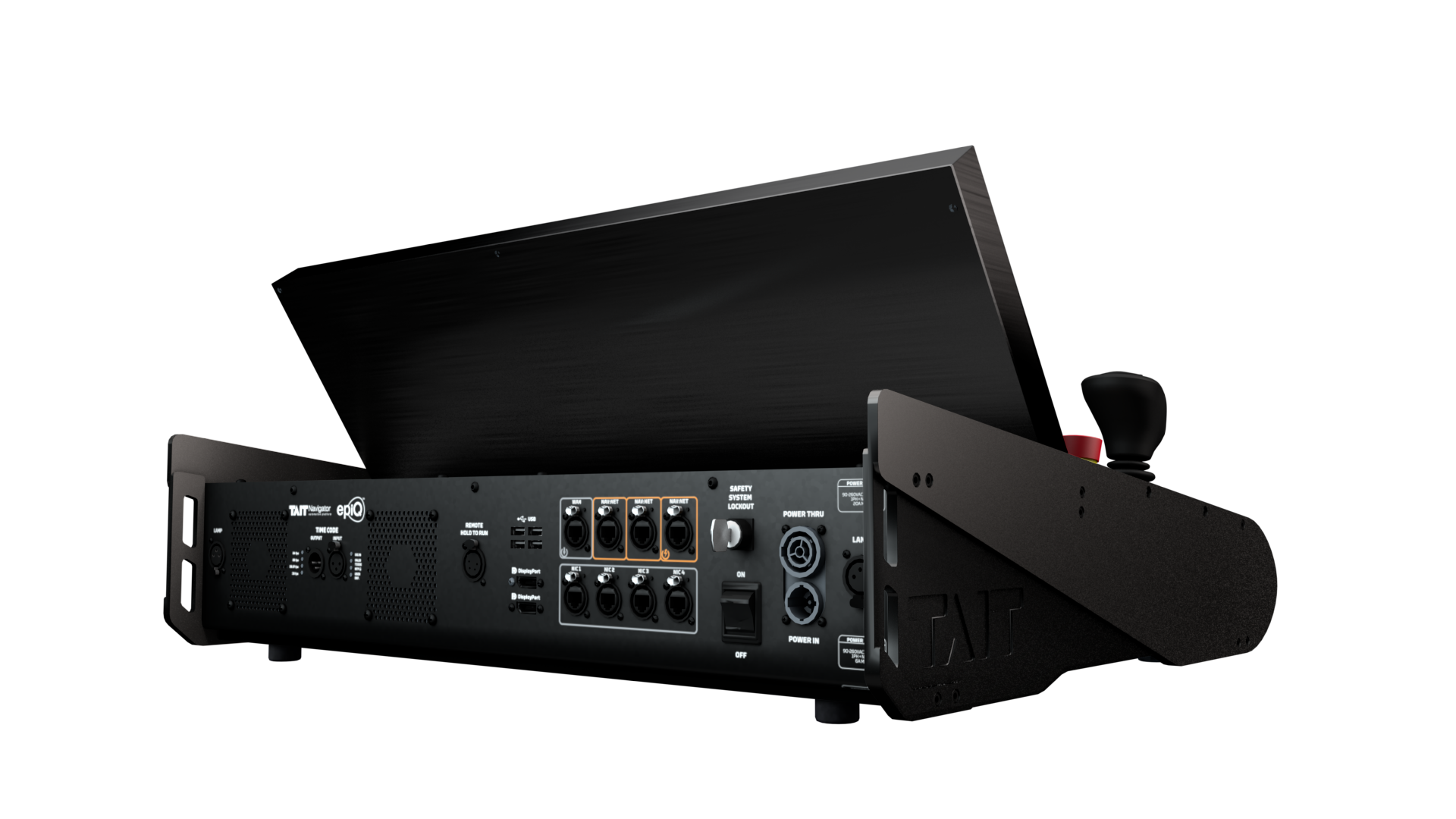

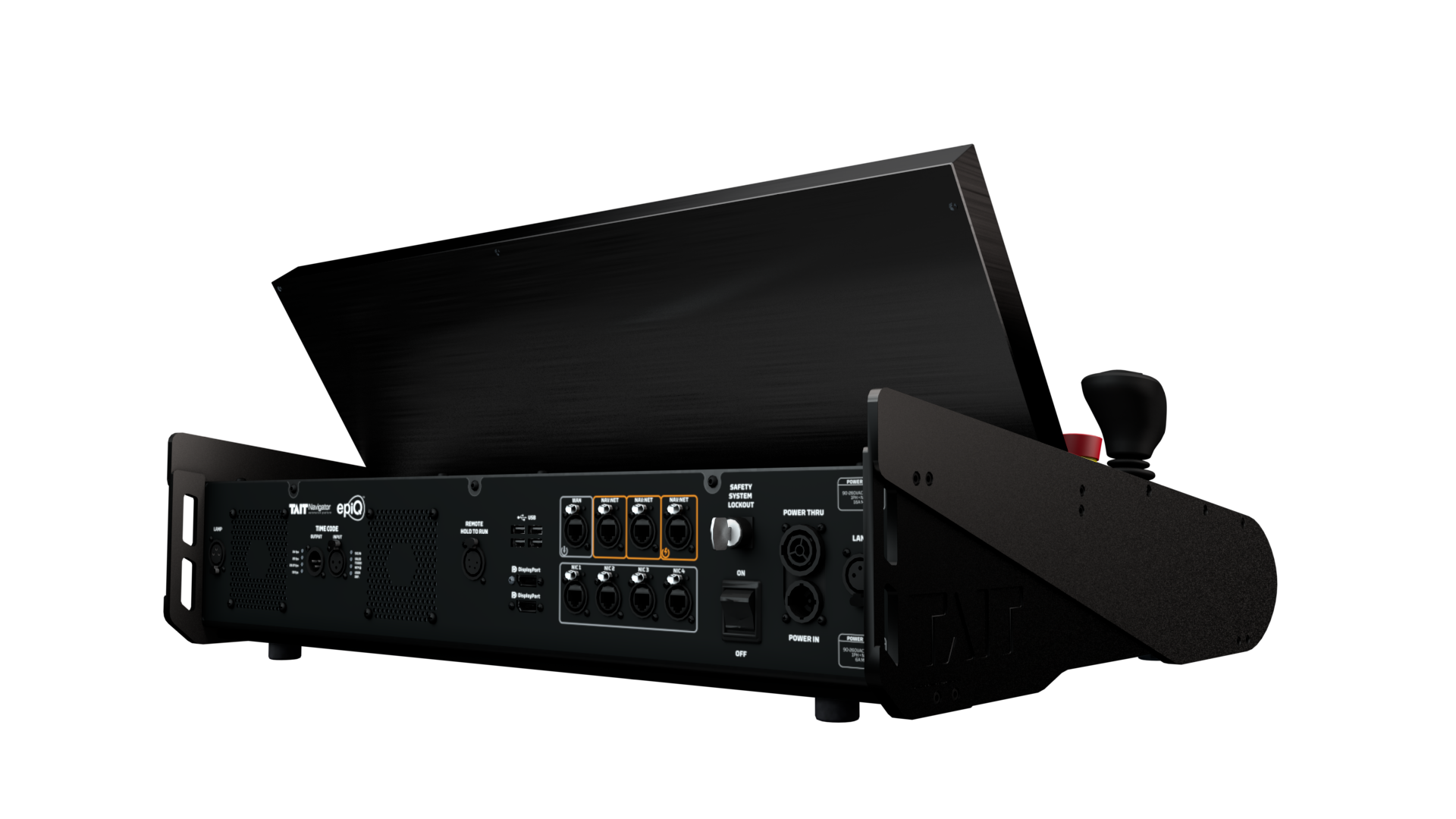

Back View |
 |
 |
Specifications
| Electrical |
| Rated Voltage |
100-240 VAC, 50/60 Hz |
| Power |
250W Typical |
| Connections |
| Power |
PowerCON TRUE1 In/Thru |
| Data |
2x NAV:Net, 1x NAV:Net with PoE Supply
4x Configurable Networks, 1x WAN Port |
| Timecode |
XLR3 In and Out |
| Display |
2x DisplayPort |
| Control |
4x USB 2.0 Inputs (Rear), 2x USB 3.0 Inputs (Front) |
| Environmental |
| Operating Temp |
10° C to 35° C (50° F to 95° F), 50% RH |
| Construction |
| Dimensions (D x W) |
585 mm x 688 m (23 in x 27.1 in) |
| Height Closed |
197 mm (7.75 in) |
| Height Open |
362 mm (14.25 in) |
| Weight |
25 kg (55 lbs) |
| Control |
| Playbacks |
Four (4) Channels |
| Joysticks |
Two (2) Triple Axis |
| Touchscreens |
Three (3) |
| Macros |
Twelve (12) Multifunction Buttons |
| Safety |
Integrated Safety Controller |
| Safety System Master |
Yes |
| HTR |
Integrated Wrist Control, External HTR Input |
| Integrated Nav |
Intel i7 |
| Integrated GUI Computer |
Intel i7 with dedicated graphics |
| Accessories |
|
| Stand |
epiQ™ Console Stand |
| |
|
