Video Track Truss Spec Sheet

Lesa Snider
  • Updated

Key Features

  • The TAIT Video Track system of interlocking truss segments with integrated track enables Plate Trolley or similar to move scenic elements during performance
  • Track incorporates rack and pinion drive to propel trolley
  • Truss segments 1.22 m (4 ft) and 2.44 m (8 ft) in length with 4.57 m (15 ft) or 15.24 m (50 ft) radius curves

Description

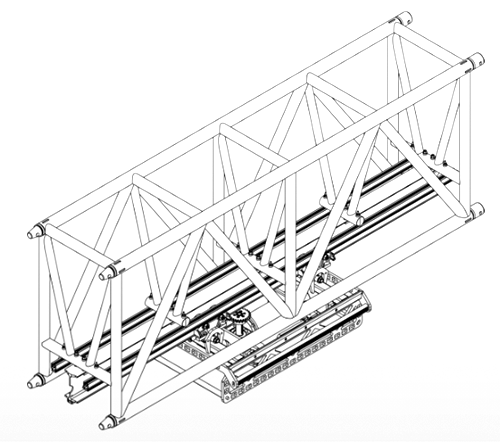

The TAIT Video Track system is a custom-built series of trusses, constructed of chromoly steel segments that support a trolley that rides along a track integrated into the truss. Each 1.22 m (4 ft) or 2.44 m (8 ft) truss segment features interlocking end-caps for quick assembly. A trolley, in turn, supports and moves various stage and scenic elements, including video screens, cameras, and props. The Video Track Truss segments (and the trolley) store securely on a custom dolly that facilitates load-in and load-out procedures. A variety of TAIT trolleys are available.

Specifications

Construction
Dimensions (L x W x H) Truss: 0.53 m x 0.91 m 2.44 m (1.74 ft x 3 ft x 8 ft)
Weight Truss (one segment): 117.03 kg (258 lbs)
Construction

60.325 mm (2.375 in) major chords
50.8 mm (2 in) diagonals and minor chords
Chromoly steel, black
Accessories
Trolleys Plate Trolley, ACS2-T Trolley, Servo Trolley
Cable management track extensions 1.22 m (4 ft) lightweight extension of cable management track to go on end of truss
Extras  Truss load binder/clamps for easier truss assembly, cable management cars, beam trolley for load, end stops, floor dollies, transportation carts, internal storage boxes


Dimensions

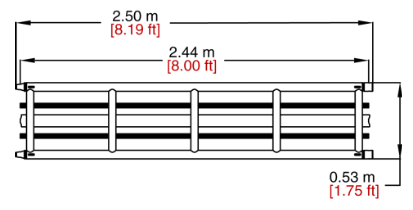

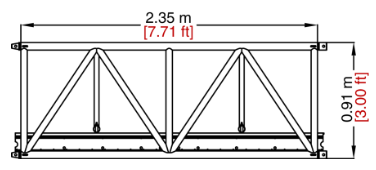

Track Truss Only Side View Track Truss Only Top View
vtt_dim_1.png vtt_dim_2.png

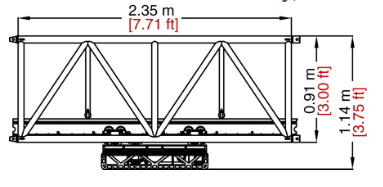

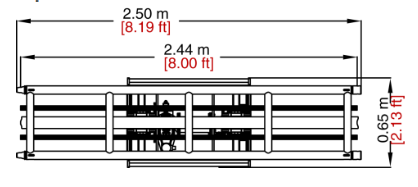

Track Truss with Plate Trolley Side View Track Truss with Plate Trolley Top View
vtt_dim_3.png vtt_dim_4.png

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.12.01. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 75020200
