Key Features

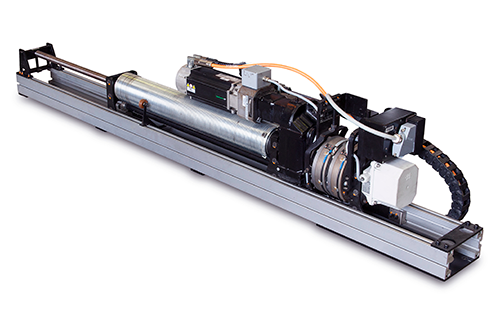

The BT2-200-10 Theatre Winch designed for touring and installed theatre shows
Counterweight assist, performer and non-performer flying, as well as floor and flown traverse applications
Double brakes standard
On-board initial and ultimate limits
Compact 200 mm (7.87 in) foot print; perfect for most in-house counterweight systems
Can be reeved in 1-line, 2-line and Roll-On/Roll-Off (RORO) configurations with synthetic or steel-wire rope

Description

The second-generation Big Tow winches are the first choice for theatre installations touring productions and spectaculars that need to move scenery or fly performers across the stage. The BT2 range winch incorporates zero fleet technology, allowing the winch to be mounted easily in any position by ensuring the drum take-off points remain static. The BT2 winches conform to the BS7905-1:2001 standard and the European Machinery Directive due to safety features such as dual brakes and a crossed groove detector. The winches also offer optional safety features including load cells, a slack rope detector, and a secondary encoder. Optional winch control systems are available for applications to be incorporated into SIL 3 installations.

200 Series

The BT2-200 series is the smallest of the BT2 range and comes in several configurations up to an ELL of 325kg. Its narrow depth matches that of a standard theatre flying system and allows compact installation in a theatre grid. Perfect for direct flying, counterweight assist, performer flying or traversing.

Specifications

Software Compatibility
Control System	TAIT Navigator, eChameleon
Electrical
Motor Phase	3 Phase
Rated Voltage	380V to 480V
Current	Max: 31A at full load, full speed Max: 37A at full load, full acceleration
Connections
I/O, Encoder, Motor Power	AU:tour Harting
Mechanical
Maximum Speed	2.75 m/s (9.02 ft/s)
Maximum Acceleration	2 m/s2 (6.56 ft/s2)
Working Load Limit	Performer: 270 kg (595.25 lbs)
Travel (1-Line)	Steel: 31.5 m (103.35 ft). Synthetic: 30 m (98.42 ft)
Travel (2-Line)	Steel: 14.1 m (46.26 ft). Synthetic: 12.5 m (41.01 ft)
Travel (RORO)	Steel: 30.9 m (101.38 ft). Synthetic: 27.7 m (90.88 ft)
Rope	Synthetic or Steel-Wire Rope, 6 mm (0.24 in)

Set Up
Line Take-Off	Past Channels; Past Motor
Orientation	A, B, C, E
Environmental
Operating Temp	Clean, dry environment 10 C to 35 C (50 F to 95 F), 50% RH
Outdoor Use	With cover
Construction
Dimensions (L x W x H)	1805 mm x 250.8 mm x 435 mm (71.06 in x 9.87 in x 17.13 in) Base Width: 200 mm (7.87 in)
Drum Diameter	125 mm (4.92 in)
Weight	150 kg (330.69 lbs)
Certifications
Entertainment	BS 7905-1:2001
Safety	European Machinery Directive
Accessories
Extras	Single- or Dual-Circuit Load Cell, Secondary Encoder, Brake Release Monitors, On-winch Diverter Sheaves

Dimensions

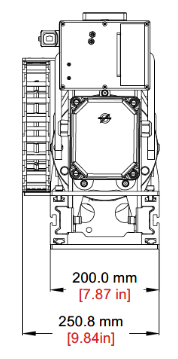

Front View	Rear View

Side View
