Key Features
|
Description

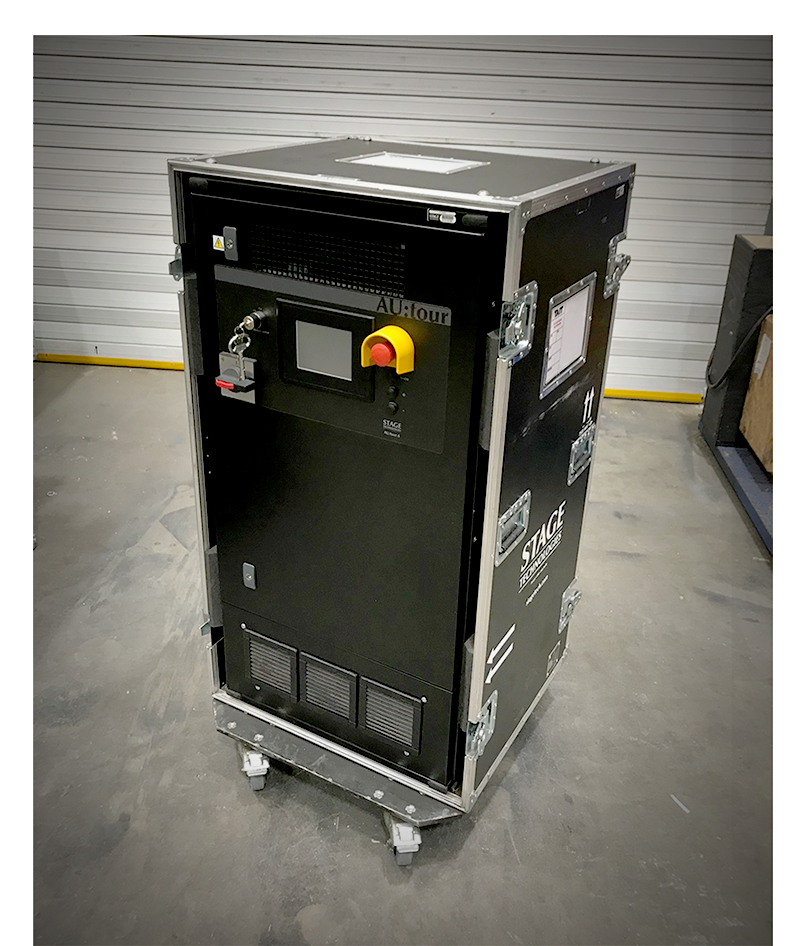

The AU:tour 6+ is a control rack system mounted within a touring case. A reliable, plug-and-play system, it is predominately used for temporary installations and touring, but can also be used in a wide range of other live entertainment environments. The AU:tour 6+ comes with six 30A drives but is also configurable with up to four 45A drives or two 85A drives, a combination of drives is also possible. Multiple AU:tours can be combined into a more extensive system or integrated into existing permanent installations. The AU:tour 6+ comes with a braking resistor built-in. There is essential local control and diagnostics on the built-in touch panel, and The AU:tour is controllable by either TAIT Navigator, iQ or eCham consoles.
Specifications
Software Compatibility | |
Front End | eCham or TAIT Navigator (with optional add-on) |
Control System | Siemens, Simotion |
Electrical | |
Duty Cycle | S4 |
Rated Voltage | 415V to 480V, 50/60 Hz |
Current | 200A |
Maximum Drive Size | 85A* |
Maximum Number of Drives | 6* |
< | *Not available together |
Braking Resistor | For use with generator power |
Connections | |
Power | Harting |
Winch/Machine | Harting |
Construction | |
Dimensions (L x W x H) | 0.8 m x 1.1 m x 1.7 m (2.62 ft x 3.61 ft x 5.58 ft) |
Weight | 535 kg (1179.47 lbs) |
Certifications | |
Safety | European Machinery Directive SIL 3 (requires optional safety features) |
British Standard | BS 7905-1: 2001 |
Accessories | |
I/O Expansion | For when additional I/O is required |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.11.18. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 19942021
