Key Features
|
Description

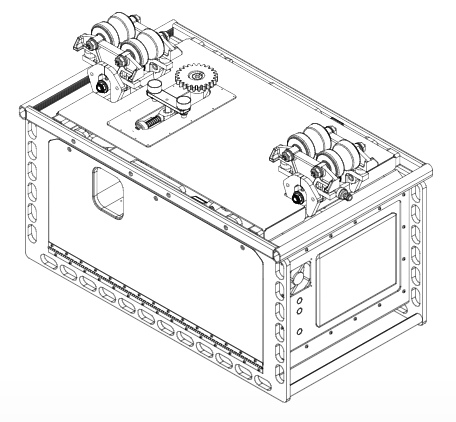

TAIT’s ACS-2T Trolley provides motor-powered horizontal movement. The trolley can be used to move video screens, performers and/or show equipment. It has a weight of 83.9 kg (184.97 lbs) and a moving speed and pull load that is dependent upon the gear box ratio. It is often used in conjunction with our Video Track Truss.
Specifications
| Electrical | |
| Motor Phase | 3 Phase |
| Rated Voltage | 208V |
| Power | 1 HP to 1750 RPM |
| Connections | |
| Power | L21-30 |
| E-Stop | XLR4 |
| Network | Ethercon |
| Control System | Navigator |
| Mechanical | |
| Speed/Pull Load | Dependent upon gearbox ratio |
| Construction | |
| Dimensions (L x W x H) | 0.91 m 0.53 m x 0.64 m (3 ft x 1.75 ft x 2.10 ft) |
| Weight | 83.9 kg (184.97 lbs) |
| Accessories | |
| Extras | Video Track Truss |

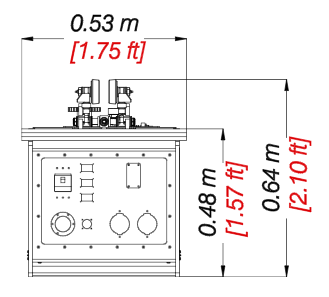

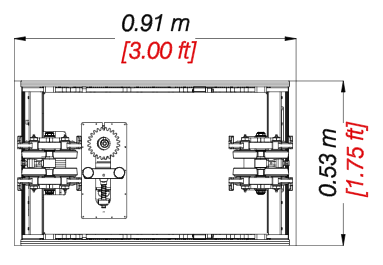

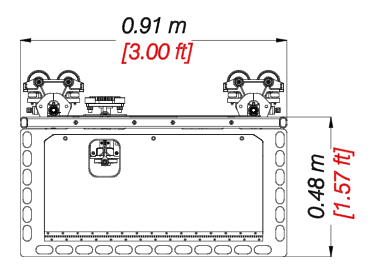

Dimensions
| Top View | Side View | Front View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.01.12. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 28500000
