Key Features

Custom product providing projection screens of incremental widths
Chain-driven system accommodates various arrays of drape drops and sizes depending on fabric type up to 100 kg (220.46 lbs)
Optional compatibility with the Navigator Automation System for precise motion and timing control

Description

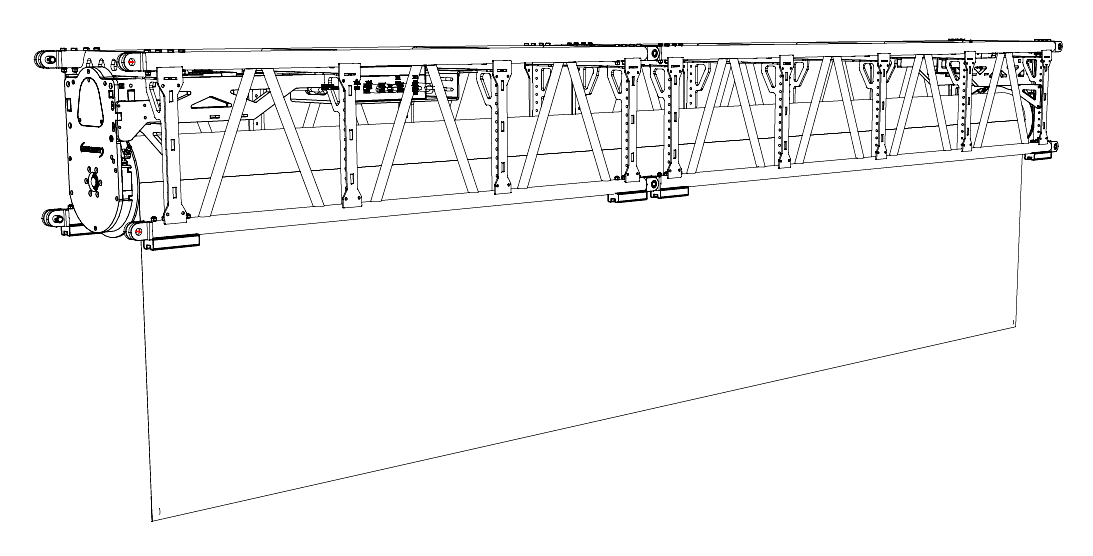

A modular roll-down system consisting of a customizable drum, drive unit and feedback unit that mount into an open-bottomed truss of modular length. It allows a minimum gap between soft goods of adjacent roll-down of only 152.4 mm (6 in).

Specifications

Electrical
Power	415V, 3 Phase, 5A
Connections
Control	AC servo control providing variable speed, exact positioning, smooth accel/decel, and full torque from the get-go
Mechanical
Maximum Speed	2 mps (6.5 fps) at maximum wrap
Maximum Lifting Capacity	100 kg (220.46 lbs)

Construction
Dimensions (L x W x H)	Truss W x H: 520.7 mm x 520.7 mm (20.5 in x 20.5x in) Modular Lengths: 1219 mm, 1981 mm, 2642 mm, 3353 mm, 4064 mm, 4750 mm, 5461 mm, 6147 mm, 6858 mm, 7569 mm, 8230 mm, 8966 mm (48 in, 78 in, 104 in, 132 in, 160 in, 187 in, 215 in, 242 in, 270 in, 298 in, 324 in, 353 in)
Weight	Drive unit: 30 kg (66.14 lbs) Feedback unit: 30 Kg (66.14 lbs) Drum and fabric up to 100 kg (220.46 lbs) Truss sections depending upon application

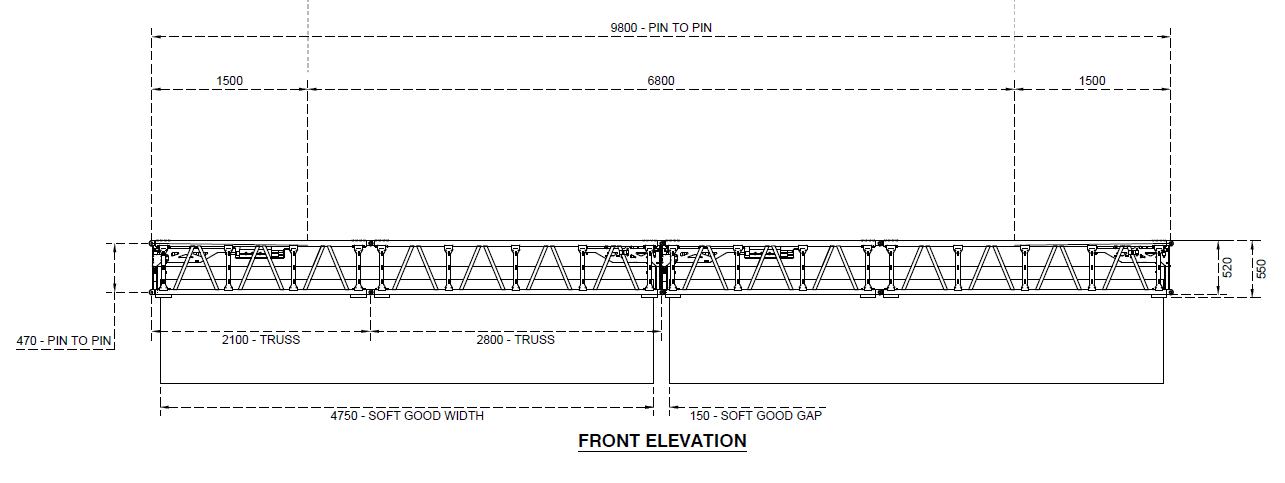

Dimensions

Packaging and Shipping

Travels on a dedicated dolly or with stacking removable skates.

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2020.12.10. Copyright 2020 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 19830347-K
