Key Features
|
 |
Description
The NAV:RS4 is a central controller for the TAIT Navigator Automation Platform. It manages all aspects of the control system including motion control, cueing, user security, remote assistance, and the emergency stop system. It can interface with many other entertainment systems including lighting, video/projection, audio, CCTV, and SFX. It is typically installed in a central control rack and connected to the machine control cabinets to control the axes.
Specifications
| Electrical | |
| Rated Voltage | 100-240 VAC, 50-60Hz |
| Connections | |
| Power | PowerCON In and Thru |
| Control | NAV:Net (1), NAV:COM (1), General purpose NAV:Net/COM (8), WLAN (1) |
| E-Stop Button | Front Panel (1), Hardwire to back panel (8); up to 12 console/remote buttons |
| Environmental | |
| Operating Temperature | 10° C to 35° C (50° F to 95° F), 50% RH |
| Construction | |
| Dimensions (L x W x H) | 489 mm x 483 mm x 178 mm (19.25 in. x 19 in x 7 in) |
| Weight | 14.1 kg (31 lbs) |
| Mounting | Rack mount (3U), Truss mount |
| Certifications | |
| Safety | European Machinery Directive SIL 3 (requires optional safety features) |
| Accessories | |
| Remote Support | Ethernet remote interface or cellular remote interface |
Dimensions

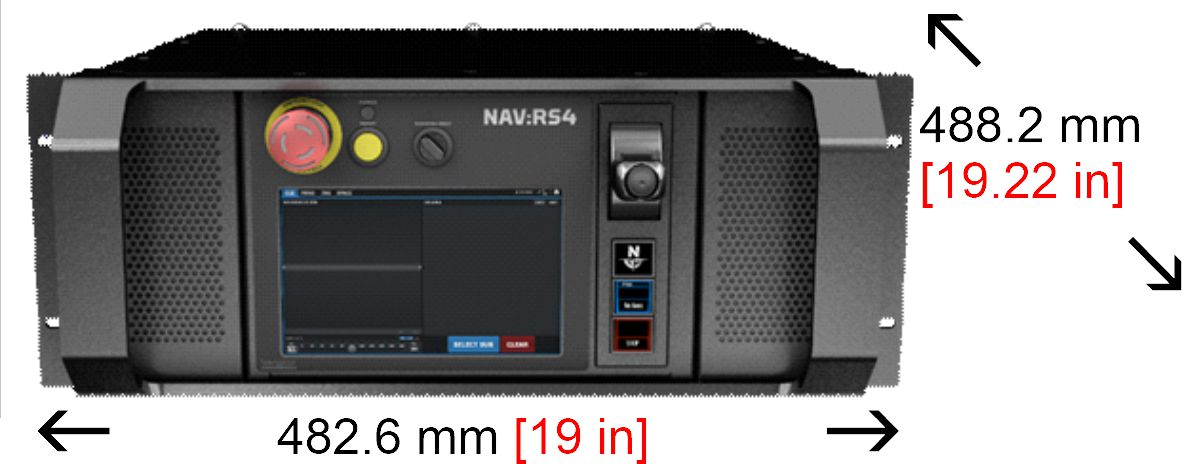

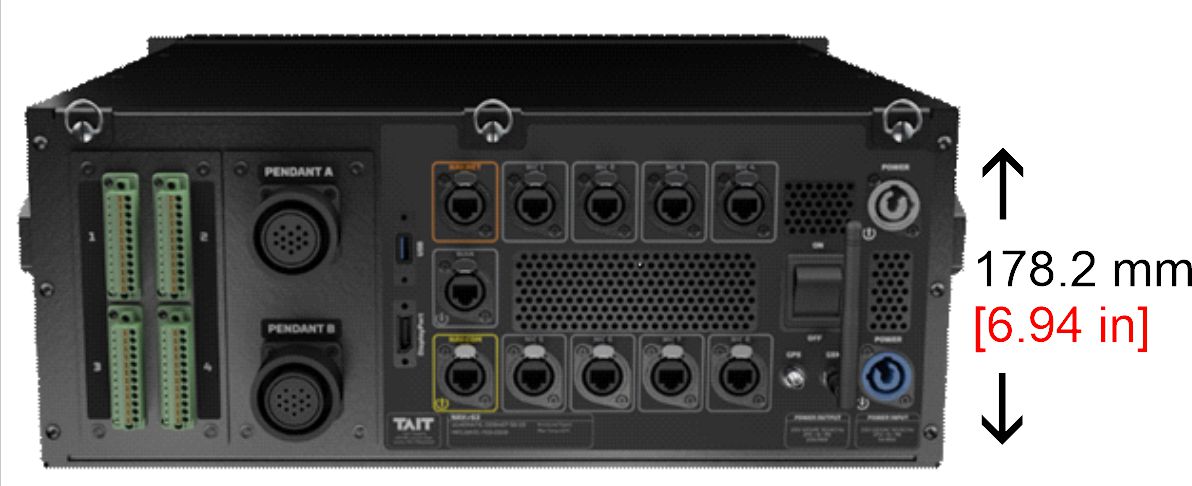

| Front View | Back View |
 |
 |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.06.10. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 19813501
