Key Features
|
Description

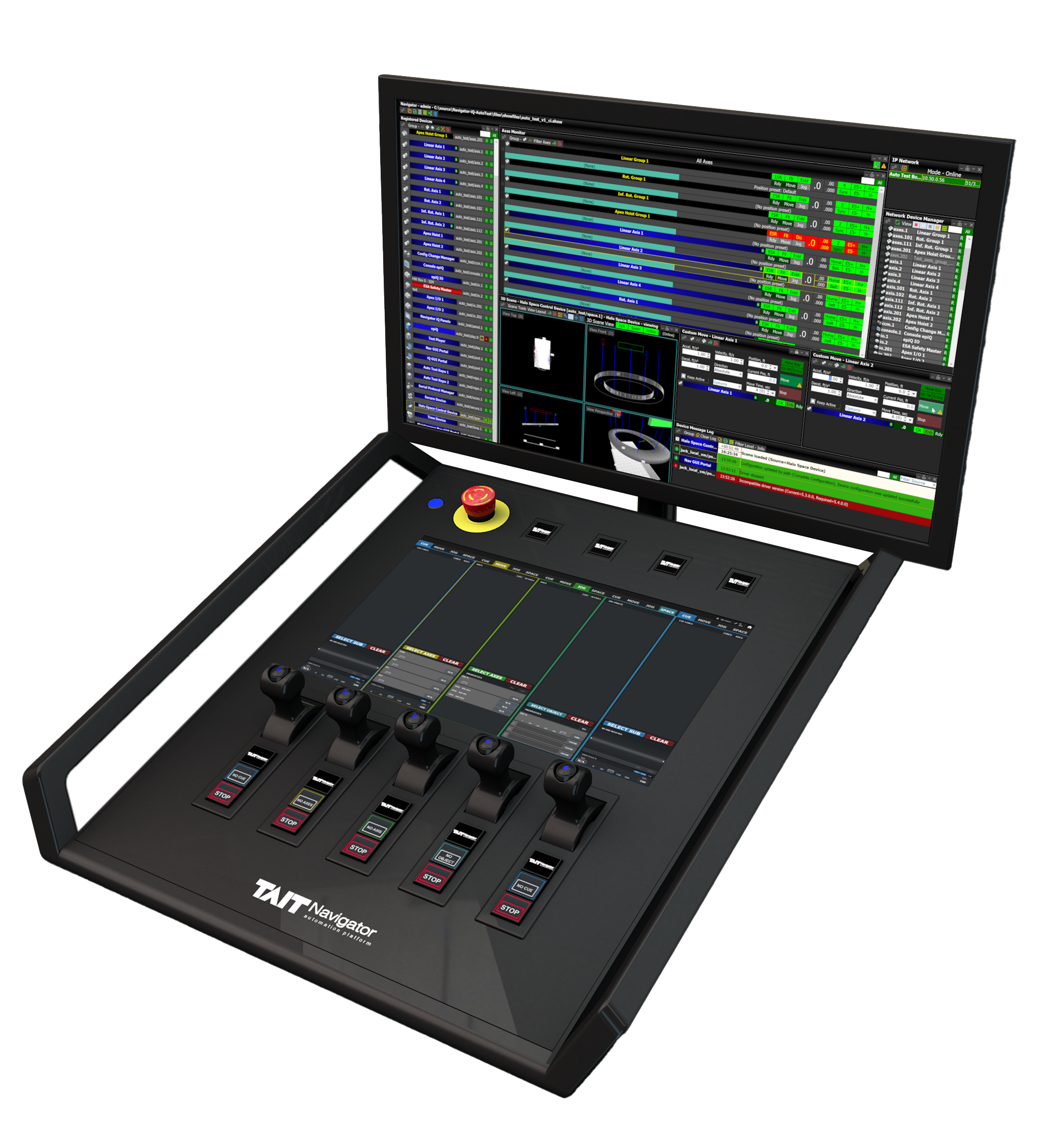

TAIT’s NAV:Polaris is a modular, networked console that can operate with multiple Polaris consoles or as a standalone console. It features a large touchscreen interface and a multitude of channel options. The flexible channel options allow users to customize inputs, creating the ideal programming and show interface for each specific show. Users have the ability to pre-program shows with integrated 3D previsualization to allow for offline previewing, editing and exporting of movies.
Rackmount option available.
Specifications
| Electrical | |
| Rated Voltage | 110-240 VAC 50/60 HZ |
| Connections | |
| Control System | TAIT Navigator, iQ |
| NAV:NET Ports | 2 |
| Display | 15 in touchscreen |
| Channels | 5 (see options above) |
| E-Stop Buttons | 1 |
| Display Macro Buttons | 4 |
| Enable Inputs | 1 |
| Front/Rear USB | 1/4 |
| Lamp Outputs | 2 |
| Monitor Outputs | 2 |
| Construction | |
| Dimensions (L x W x H) | 530 mm x 570 mm x 200 mm (20.87 in x 22.44 in x 7.87 in) |
| Weight | 18.1 kg (40.0 lbs) |
| Shipping Information | |
| Dimensions (L x W x H) | 691 mm 699 mm x 414 mm (27.2 in x 27.5 in x 16.3 in) |
| Weight | 35.38 kg (78.0 lbs) |

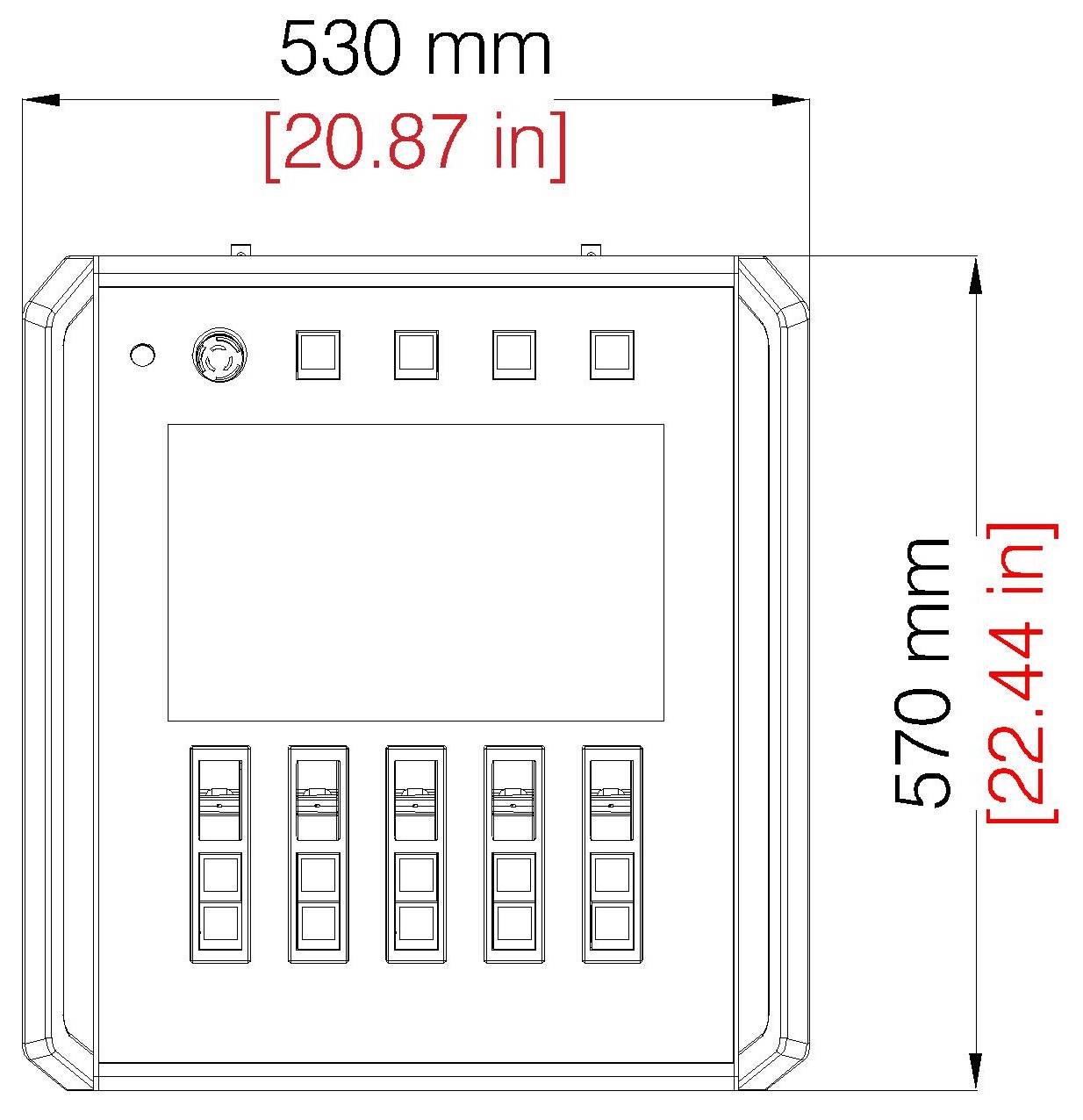

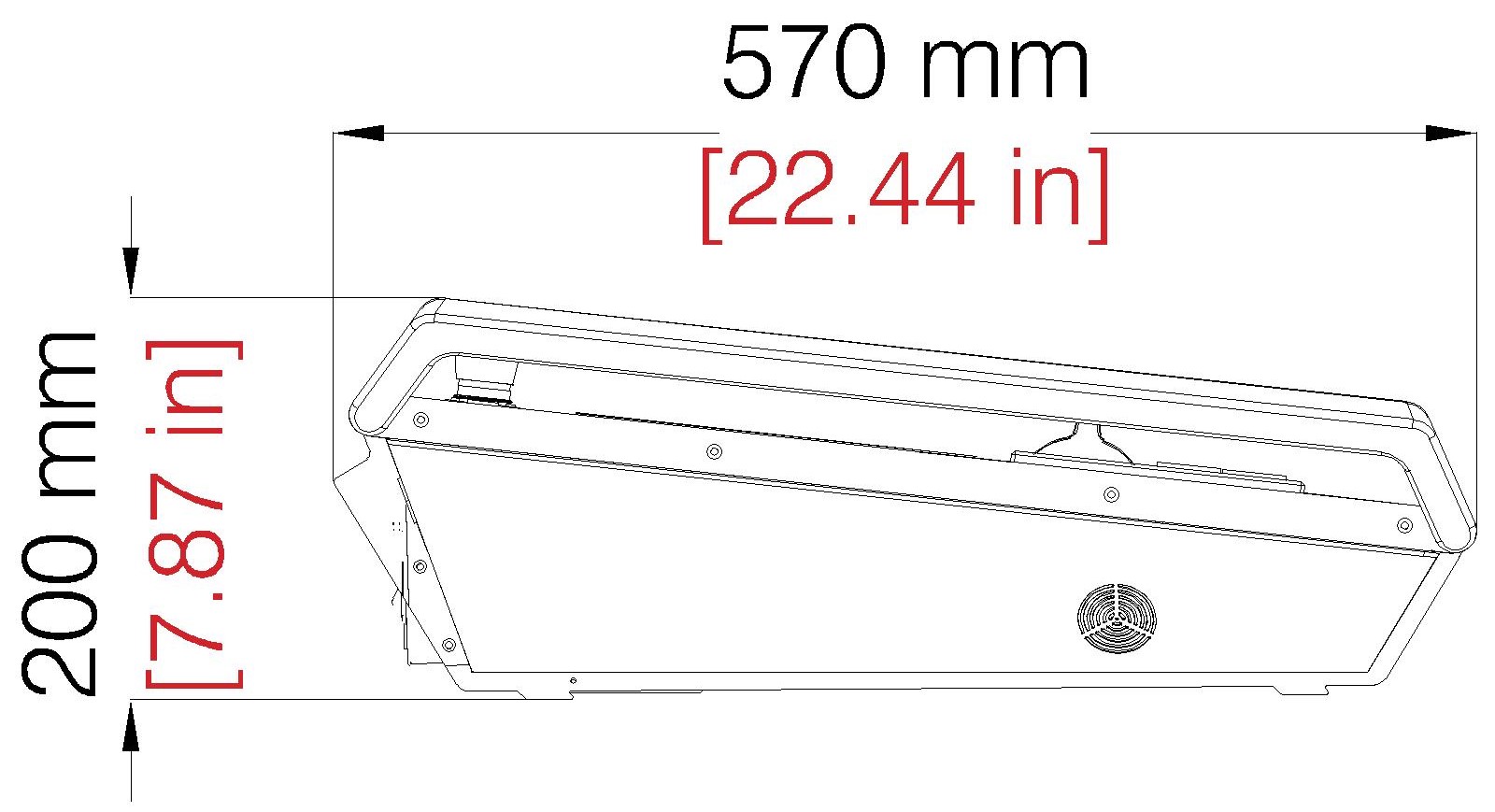

Dimensions
| Top View | Side View |
Channel Options
| Single Axis Joystick | 2 Axis Joystick | 3 Axis Joystick | Encoder Wheel | Macro Strip |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.07.12. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 19812204, 19812203K
