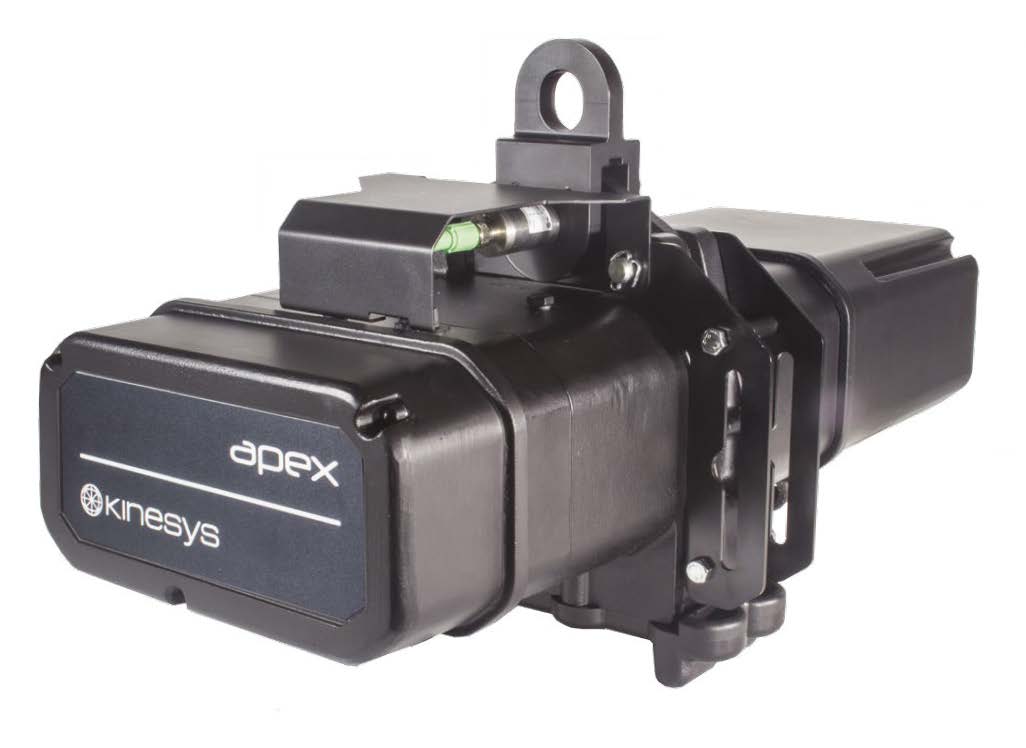

Kinesys Apex Hoist 500 Spec Sheet

Carl Cordes
  • Updated

Key Features

  • Ultra-smooth movement, precision speed and position control in compact package
  • Dual low-noise, monitored brakes
  • Complies with hoist safety standards of EN17206
  • Integral SIL3 rated loadcell
  • Control with Apex Drive
  • Integrates with TAIT Navigator and iQ systems

Description

The Apex Hoist 500 electric chain hoist meets Use Cases 1 thru 4 of EN17206 for hoist safety. Low-noise brakes across the range along with the ability to ‘hover’ allow the use of the compact Apex system in environments where chain hoists previously may not have been appropriate.  The Apex Hoist logs all the key usage data including run time, maximum load experienced by the hoist, maximum temperature reached and number of brake operations.

Interfaces with the Apex Drive v2 NAV for seamless system integration. As part of the TAIT Navigator Automation Platform, Apex Hoist 500 can perform intricate and precise movements while maintaining complete control over the load.

Specifications

Software Compatibility
Control System TAIT Navigator and iQ
Electrical
Motor Phase 3 Phase + PE
Voltage 208/400/480V nominal
Duty Cycle Intelligent Duty Cycle management
Brakes Dual, low-noise and monitored
Connections
Power, Network Multi-function Harting connector
Drive Controller  Apex Drive v1, v2 or Apex Drive v2 NAV
Mechanical
Load Capacity 8:1 Factor of Safety (FoS): 500 kg (1102.31 lbs)
10:1 Factor of Safety (FoS): 400 kg (881.85 lbs)
Speed 0-0.5 m/s (1.64 fps)
Chain Size: 7 mm x 22 mm (0.28 in x 0.87 in)
Weight: 1.1 kg/m (0.75 lbs/ft)
Max. Length of Lift, achievable 50 m (164.04 ft)
Features Integral SIL3 rated loadcell, temperature monitoring
Construction
Dimensions (L x W x H) 640 mm x 317 mm x 339 mm (25.2 in x 12.48 in x 13.35 in)
Weight 80 kg (176.37 lbs) with 24 m (78.74 ft) chain
Certifications CE, EN17206 Use Case 1-4

Dimensions

Front View Top View Side View
Apex_Hoist_500_dims_front_view.jpg Apex_Hoist_500_dims_top_view.jpg Apex_Hoist_500_dims_side_view.jpg

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.09.29. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
