Key Features

Hydraulically-actuated single Scissor Lift B supports up to 302.55 kg (667 lbs)
Combine multiple lifts for Quad, T, Triple or V configurations
Integrates seamlessly with TAIT Mag Deck system and other staging structures
Maximum height 5.79 m (19.0 ft)
Maximum speed 0.33 m/s (1.07 ft/s)
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Scissor Lift B is a hydraulically-actuated lift. SLB utilizes a 4-inch bore hydraulic cylinder. The lift features a variable lifting speed from 0.18 m/s to 0.33 m/s (0.59 ft/s to 1.07 ft/s), allowing for dynamic staging applications. The SLB is fitted with a dual acting hydraulic cylinder.

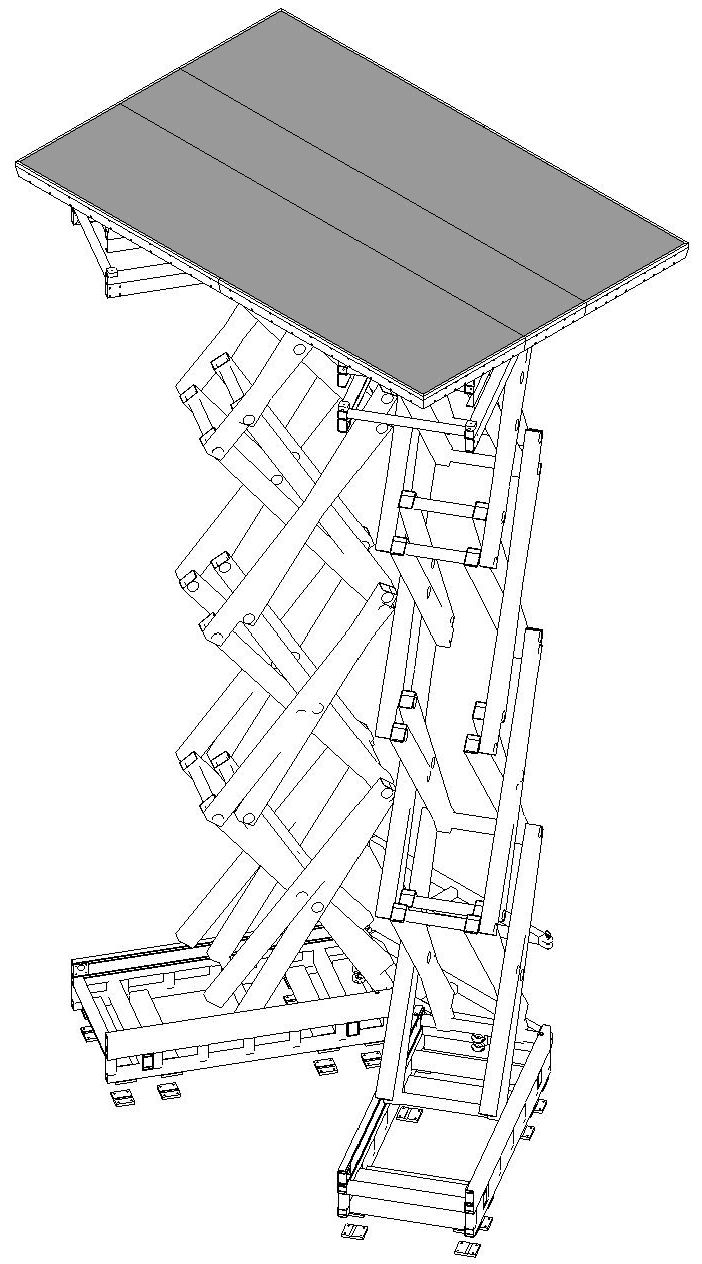

Various configurations using multiple lifts are possible. The Quad Scissor Lift configuration supports a 4.27 m x 3.66 m (14 ft x 12 ft) performer platform comprised of 12 TAIT Mag Decks sections. This platform integrates with other TAIT Mag Decks to create a seamless and uniform stage appearance.

The lift is compatible with the TAIT Navigator Automation System, ensuring versatile operation.

Specifications

Connections
Control		Local, Pickle, TAIT Navigator Control Options: Smart Valve Cart or Hydraulic Valve with string encoder
Mechanical
Maximum Speed		0.33 m/s (1.07 fps)
Maximum Lifting Capacity		302.55 kg (667 lbs)
Maximum Travel		5.18 m (17.0 ft) rise from 0.61 m (2 ft) retracted to 5.79 n (19.0 ft) extended height

Construction
Dimensions (L x W x H) for single lift	Retracted Extended	1.58 m x 0.75 m x 0.61 m (5.18 ft x 2.46 ft x 2 ft) 1.58 m x 0.75 m x 5.79 m (5.18 ft x 2.46 ft x 19.0 ft)
Weight, single lift		635 kg (1400 lbs)
Accessories
Quad Platform Deck	4267.2 mm x 3657.6 mm (168.0 in x 144.0 in)
Hydraulics	Power Unit (1), Manifold (1)

Dimensions

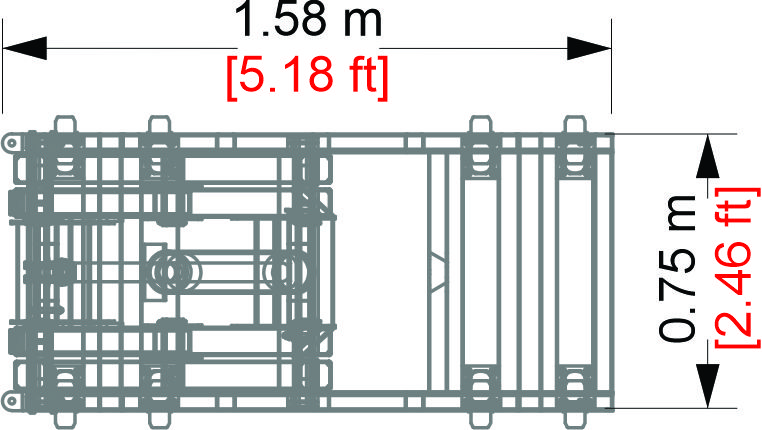

Top View - Single Lift only	Various Configurations with decks
	QUAD TRIPLE "V"

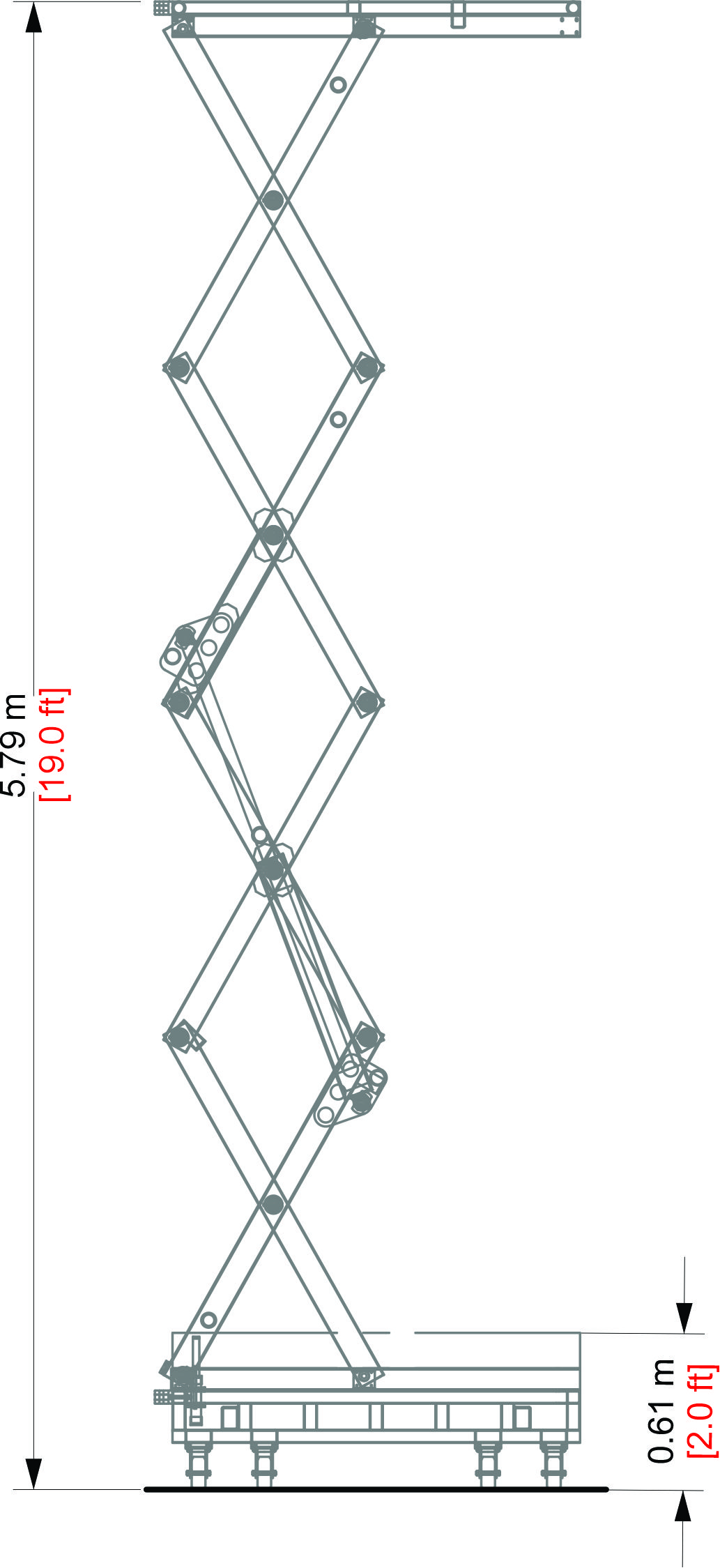

Side View - Single Lift Only

Packaging and Shipping

Dimensions (L x W x H)	One (1) Lift	1580 mm x 750 mm x 610 mm (227.9 in x 29.5 in x 24.0 in)
Weight	One (1) Lift	635 kg (1400 lbs)
