Key Features

Four hydraulically-actuated scissor lifts that work as one unit to lift a performer platform
Performer platform formed by 12 TAIT Mag Decks
Support up to five (5) performers, max weight
453.59 kg (1000.0 lbs)
Maximum rise 4.34 m (14.25 ft)
Maximum speed 0.33 m/s (1.07 ft/s)
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Quad Scissor Lift is a hydraulically-actuated system of four scissor lifts that lifts up to five (5) performers to a height of 4.34m (14.25 ft) above stage. The lift features a variable lifting speed from 0.18 m/s to 0.33 m/s (0.59 ft/s to 1.07 ft/s), allowing for dynamic staging applications.

The Quad Scissor Lift supports a 4.27 m x 3.66 m (14 ft x 12 ft) performer platform comprised of 12 TAIT Mag Decks sections. This platform integrates with other TAIT Mag Decks to create a seamless and uniform stage appearance. The lift is compatible with the TAIT Navigator Automation System, ensuring versatile operation.

Specifications

Connections
Control	Local, Pickle, TAIT Navigator Control Options: Smart Valve Cart or Hydraulic Valve with string encoder
Mechanical
Speed Range	0.18 m/s (0.59 fps) to 0.33 m/s (1.07 fps)
Maximum Lifting Capacity	453.59 kg (1000 lbs)
Maximum Travel	4760 mm (187.4 in) stroke from 1150 mm (45.28 in) retracted to 5910 mm (232.68 in) extended height

Construction
Dimensions (L x W x H) with Deck	Retracted Extended	4267 mm x 3660 mm x 1520 mm (168.0 in x 144.0 in x 59.84 in) 4267 mm x 3660 mm x 6230 mm (168.0 in x 144.0 in x 245.28 in)
Weight		3501.73 kg (7720 lbs) includes Quad Lift, Decking, Handrails
Accessories
Performer Platform	4267.2 mm x 3657.6 mm (168.0 in x 144.0 in)
Hydraulics	Power Unit (1), Manifold (1)

Dimensions

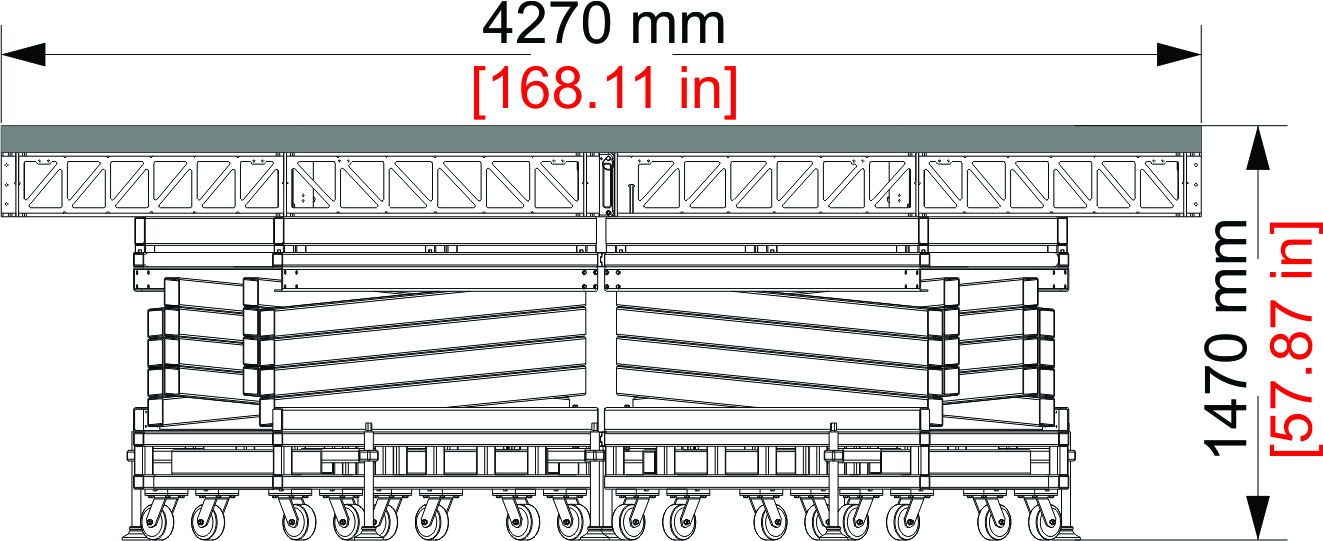

Side Views - Lift only	Side Views - with Platform

Packaging and Shipping

Dimensions (L x W x H)	One (1) Lift	1778 mm x 762 mm x 609.6mm (70.0 in x 30.0 in x 24.0 in)
Weight	One (1) Lift	453.59 kg (1000 lbs)
Dimensions (L x W x H)	Decks Cart	1524 mm x 1143 mm x 1932.4 mm (60.0 in x 45.0 in x 76.0in)
Weight	Decks Cart	952.54 kg (2100 lbs)
