Key Features

Hydraulically-actuated Scissor Lift platform for staging flexibility and dramatic effects
STD Supports up to 2222.6 kg (4900 lbs)
HD Supports up to 2903 kg (6400 lbs)
Sync multiple Scissor Lifts to create larger lifting platform
Fully compatible with TAIT Mag Deck system
Integrates with TAIT Navigator and iQ systems

Description

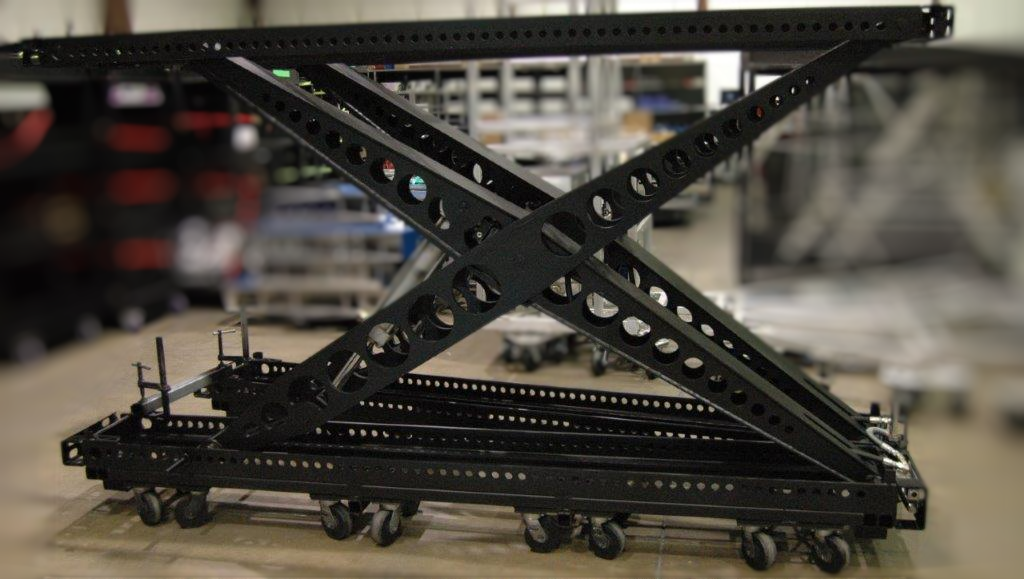

The TAIT Scissor Lift is a hydraulically-actuated system that lifts performers and props to a height of 2420 mm (95.28 in). Multiple lifts can be connected to support large stage applications, like the TAIT Revolve, to create dynamic productions. Supports up 2903 kg (6400 lbs), HD version. Less than 0.5 m (20 in) height retracted saves space and facilitates easy in/out

The Scissor Lift is fully compatible with the TAIT Mag Deck system to integrate seamlessly into all stage designs. The lift is also compatible with the TAIT Navigator Automation System, ensuring precise and versatile operation in any production.

Specifications

Connections
Control		Local, Pickle, TAIT Navigator Control Options: Smart Valve Cart or Hydraulic Valve with string encoder
Mechanical
Load Capacity @ 2500 PSI	STD HD	2222.6 kg (4900 lbs) 2903 kg (6400 lbs)
Maximum Travel		1940 mm (76.38 in) stroke from 480 mm (18.9 in) retracted to 2420 mm (95.28 in) max height

Construction
Dimensions (L x W x H)	Retracted Extended	3180 mm x 380 mm x 480 mm (125.2 in x 14.96 in x 18.9 in) 3180 mm x 380 mm x 2420 mm (125.2 in x 14.96 in x 95.28 in)
Weight		1383.46 kg (3050 lbs) STD; 1474.18 kg (3250 lbs) HD
Accessories
Decks	Rectangular Circular	3200.4 mm x 2438.4 mm (126.0 in x 96.0 in) 4114.8 mm x 4114.8 mm (162.0 in x 162.0 in)
Hydraulics		Hydraulic Power Unit, Hydraulic Manifold

Dimensions

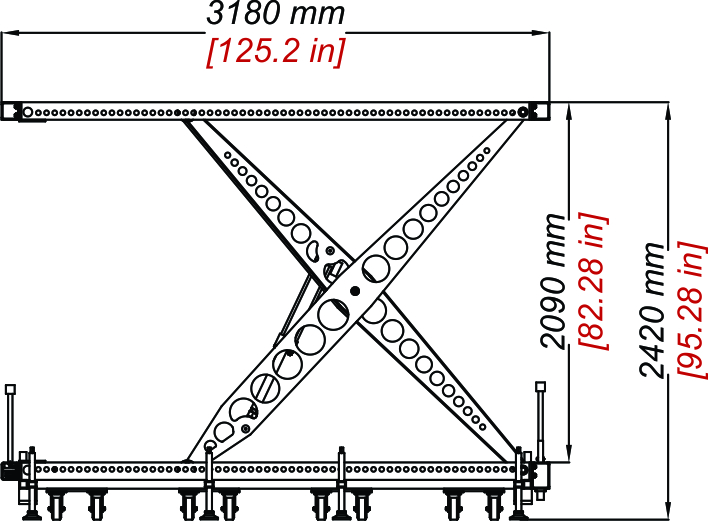

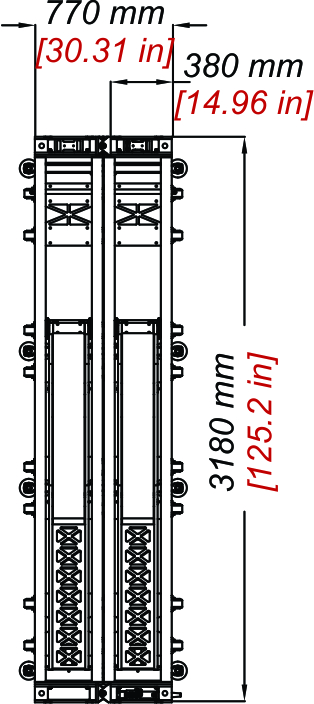

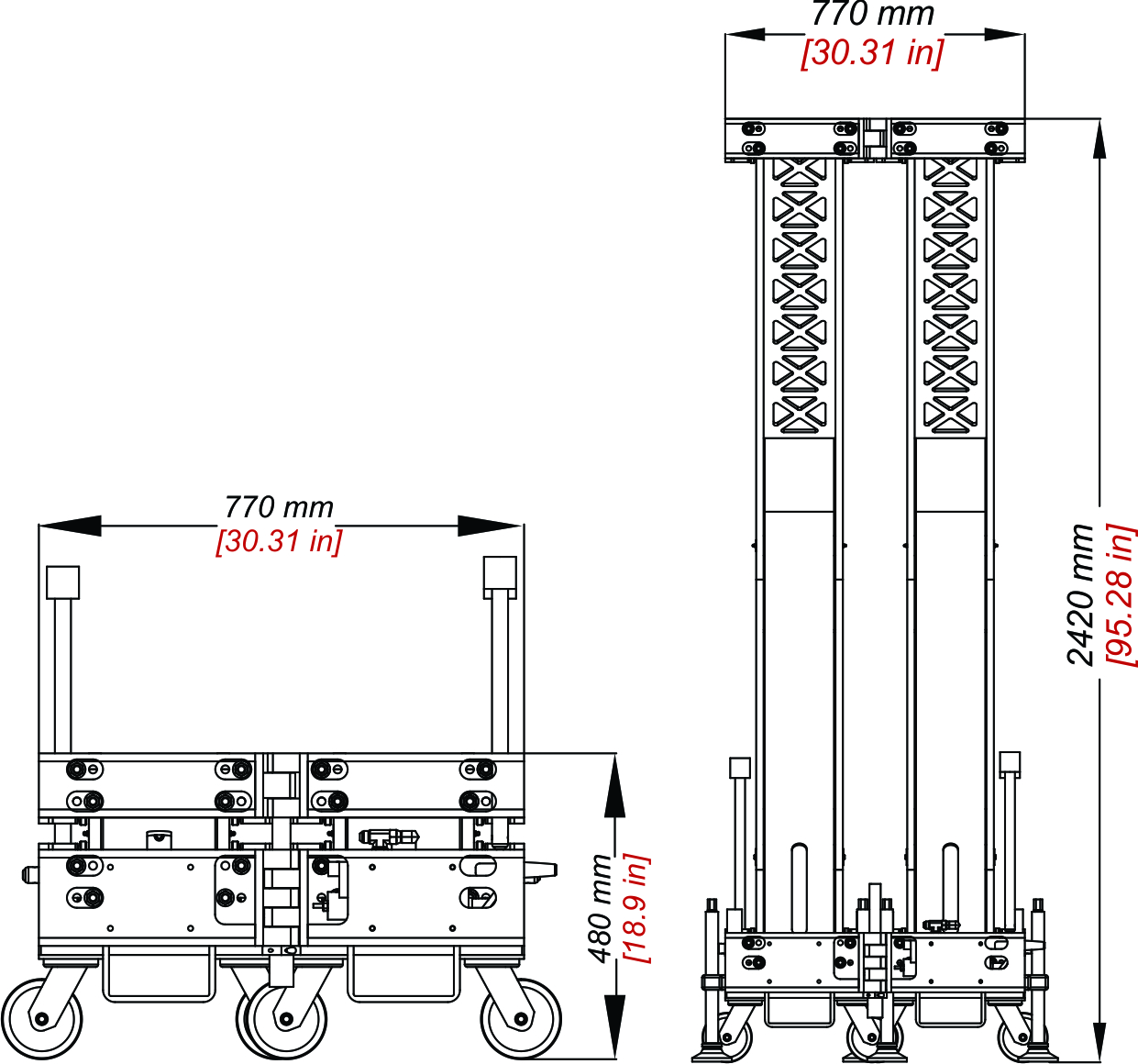

Top View	Side View, Extended	End Views, retracted and extended

Configurations

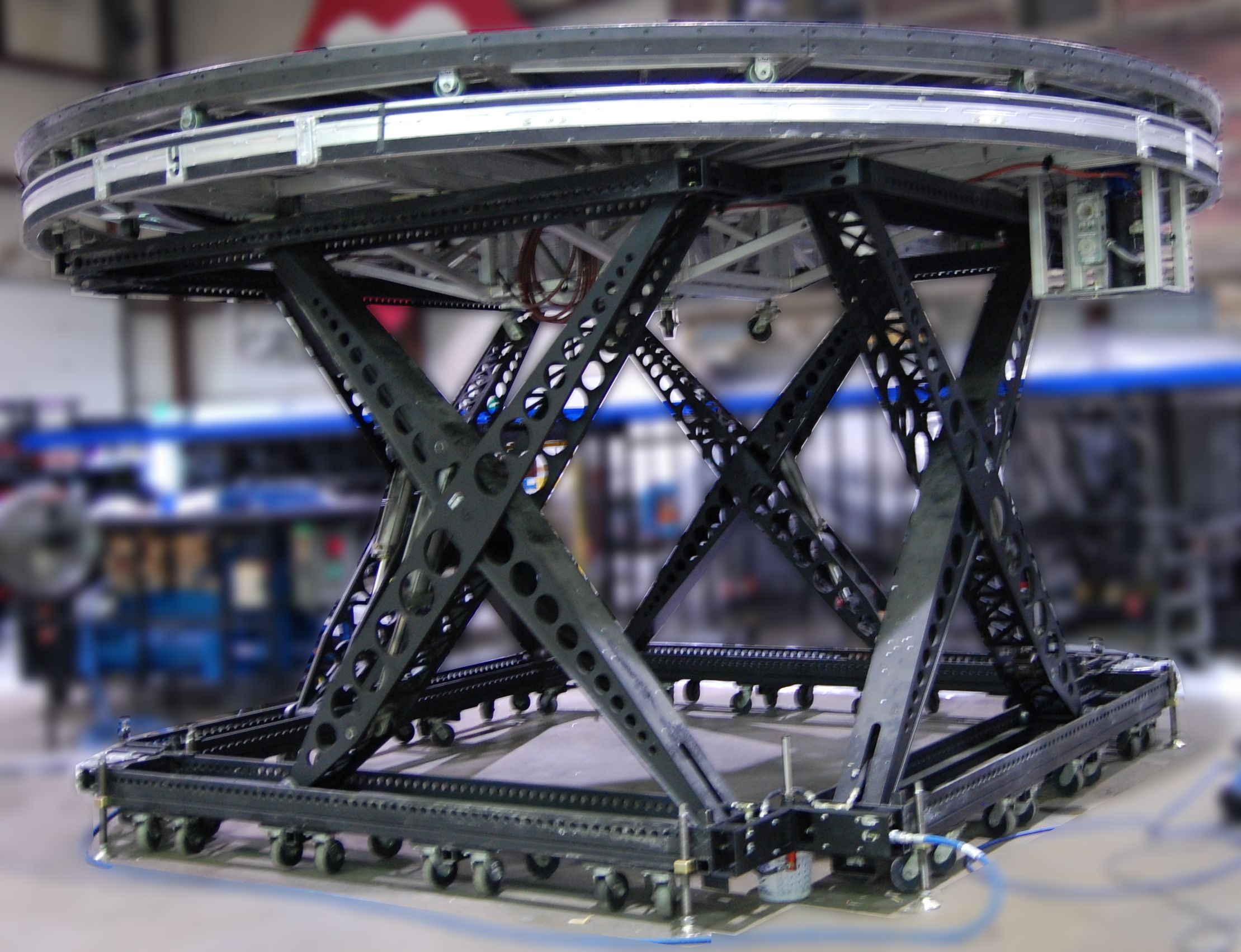

	Two Scissor Lifts arranged to support a TAIT Revolve	Scissor Lifts work in unison to lift standard TAIT decks

Packaging and Shipping

Dimensions (L x W x H)	3180 mm x 381 mm x 508 mm (125.2 in x 15.0 in x 20.0 in)
Weight	1383.46 kg (3050 lbs) STD; 1474.18 kg (3250 lbs) HD

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Revision date: 2024.09.03. Copyright 2024 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 24700001 (STD), 24700006 (HD)
